AUXBEAM KS-80 8-Gang RGB Knob Switch Panel – 120A
Original price was: $279.99 – $314.99Price range: $279.99 through $314.99. Price range: $265.99 through $299.24Current price is: $265.99 – $299.24Price range: $265.99 through $299.24.
Control up to eight lighting or accessory circuits with 120A total capacity, master dimming, RGB panel backlighting, synchronized toggle/strobe/chase controls and four external triggers. Choose the panel alone or an available remote/cable package.
Description

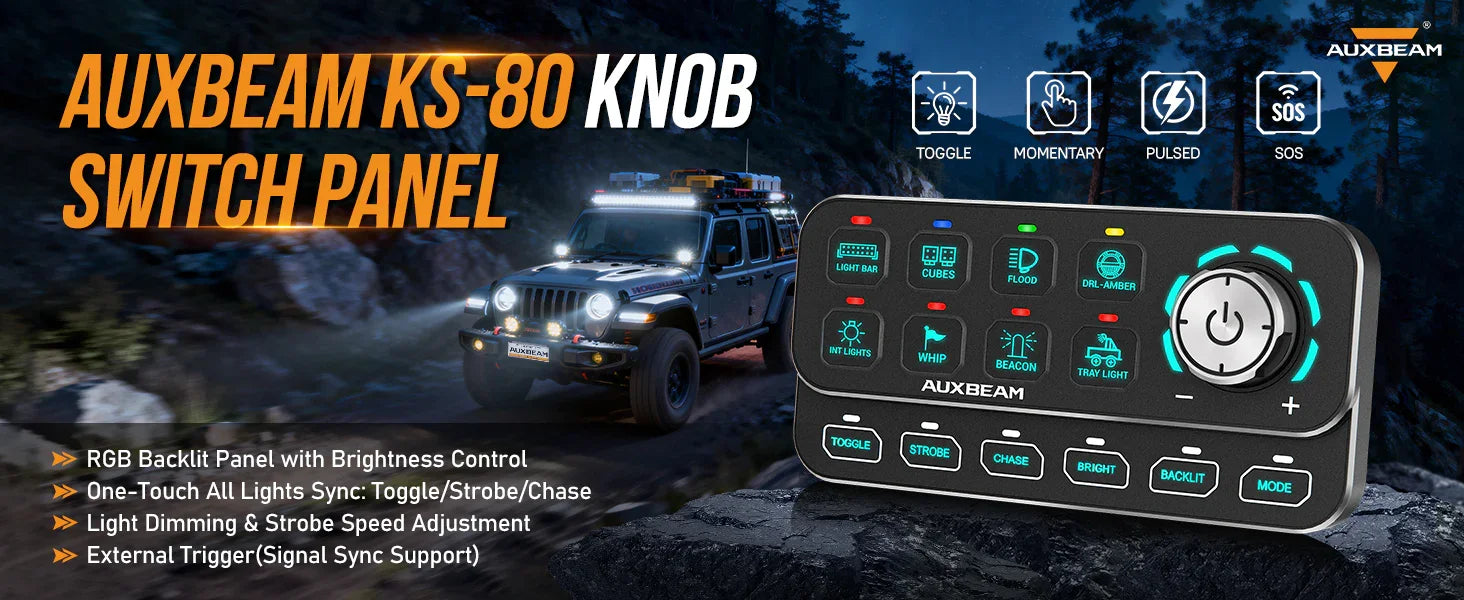

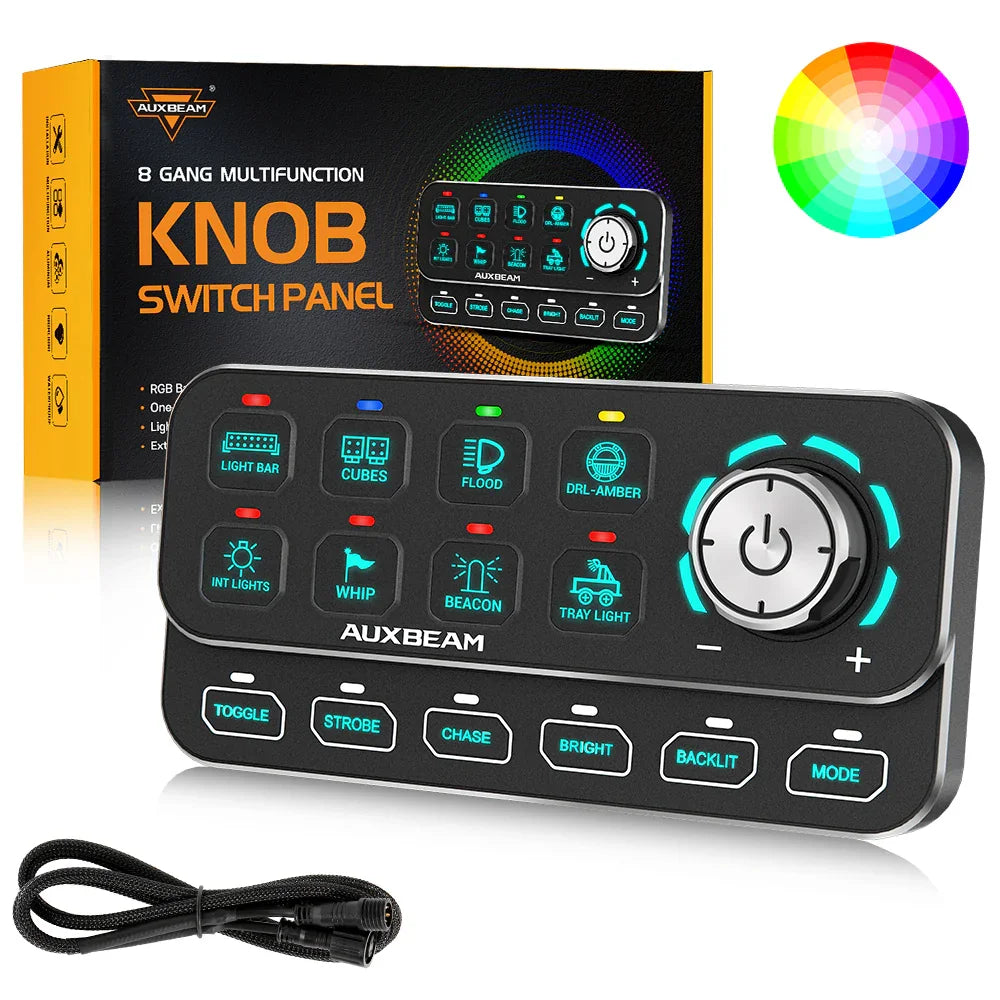

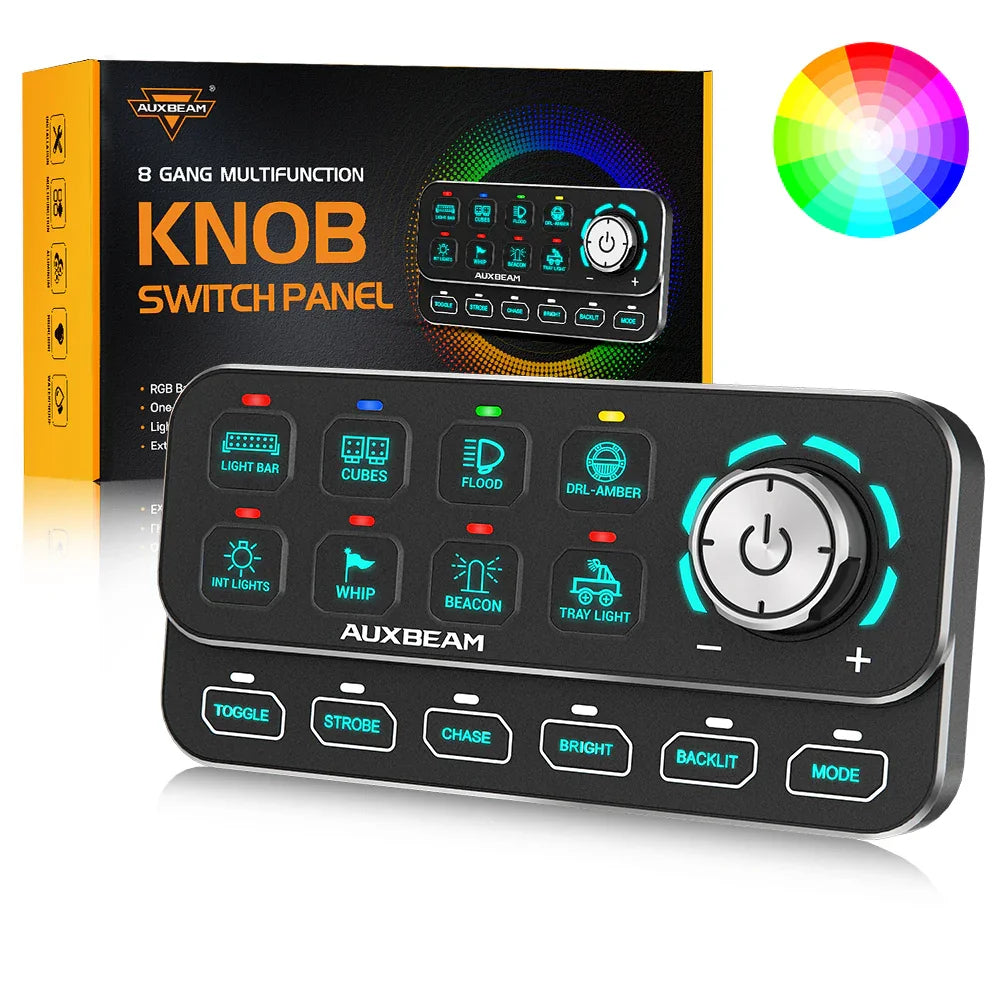

AUXBEAM KS-80 8-Gang RGB Knob Switch Panel
The KS-80 is a multifunction 8-circuit lighting and accessory controller with a rotary dimming knob, adjustable RGB panel backlighting, synchronized lighting controls, four external trigger inputs and four selectable output modes.
Features

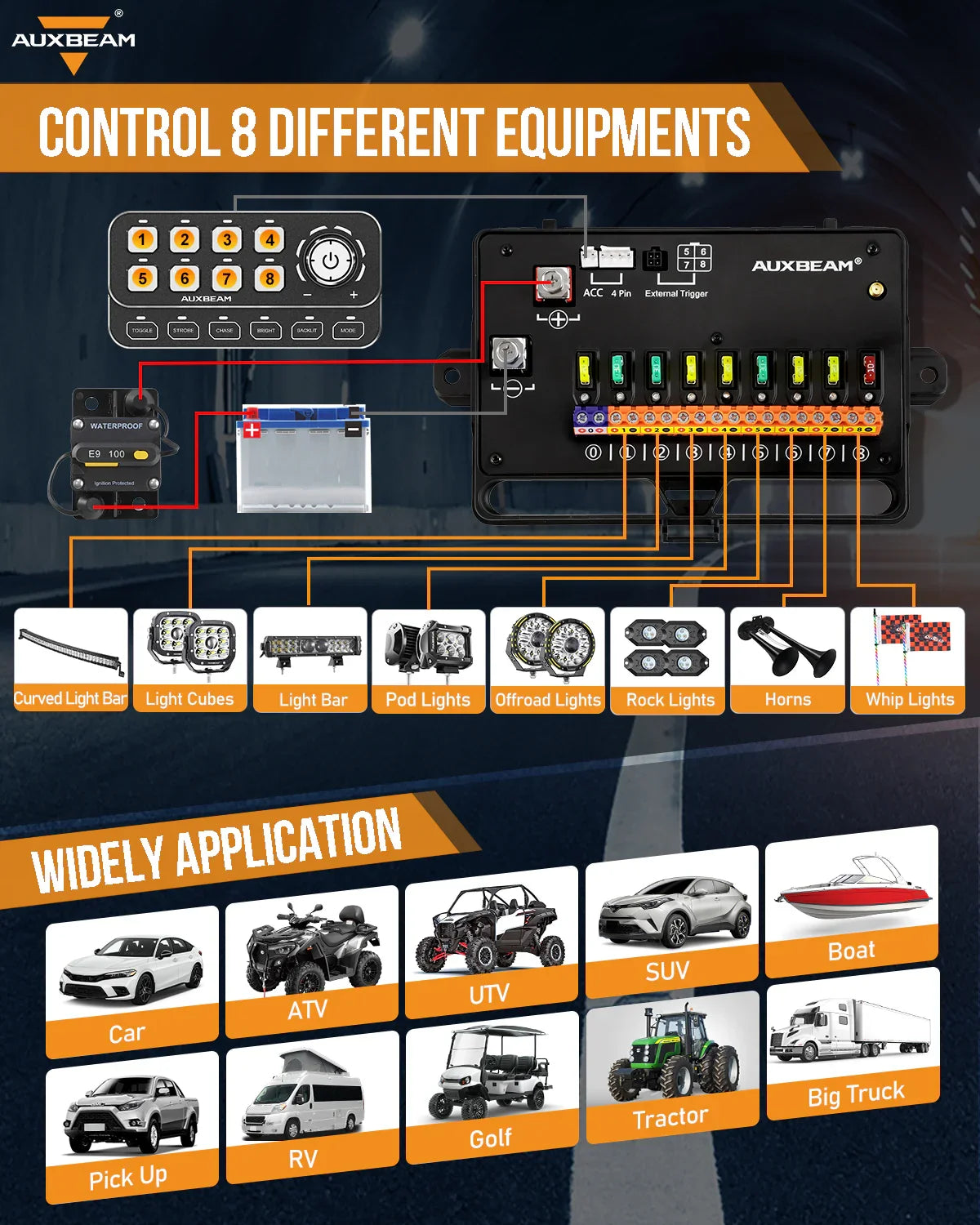

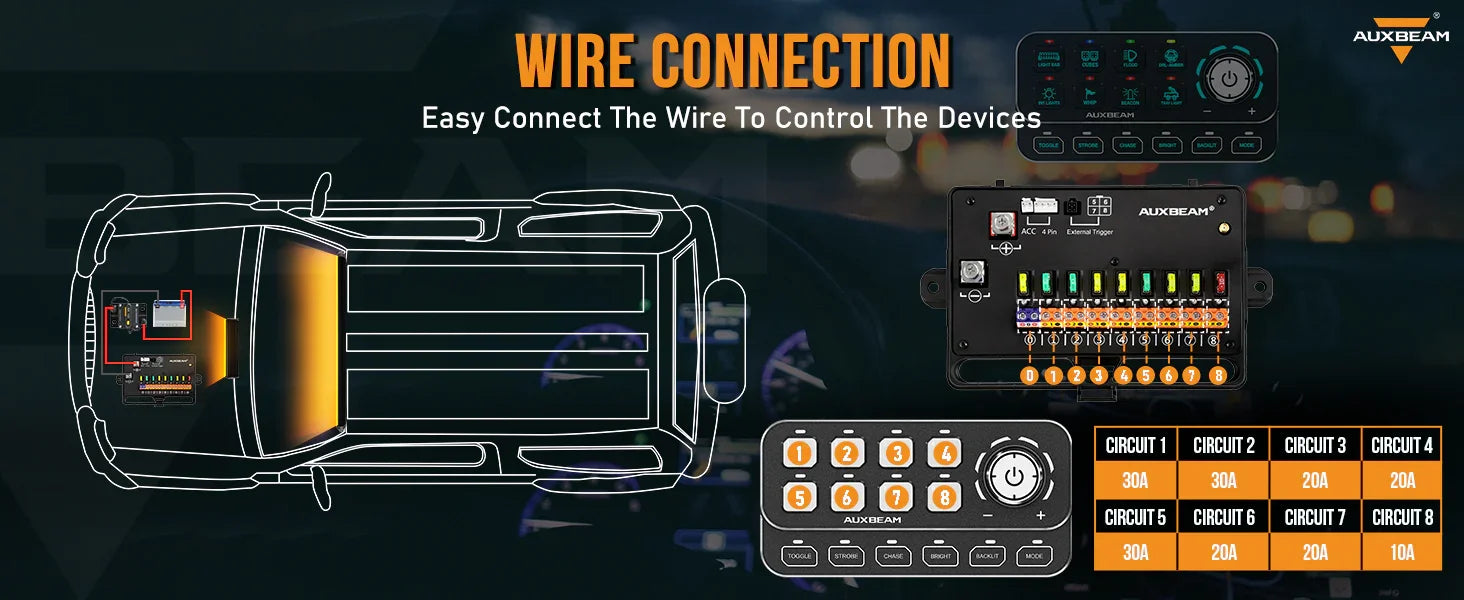

- 120A solid-state load system: 3 × 30A, 4 × 20A and 1 × 10A outputs.

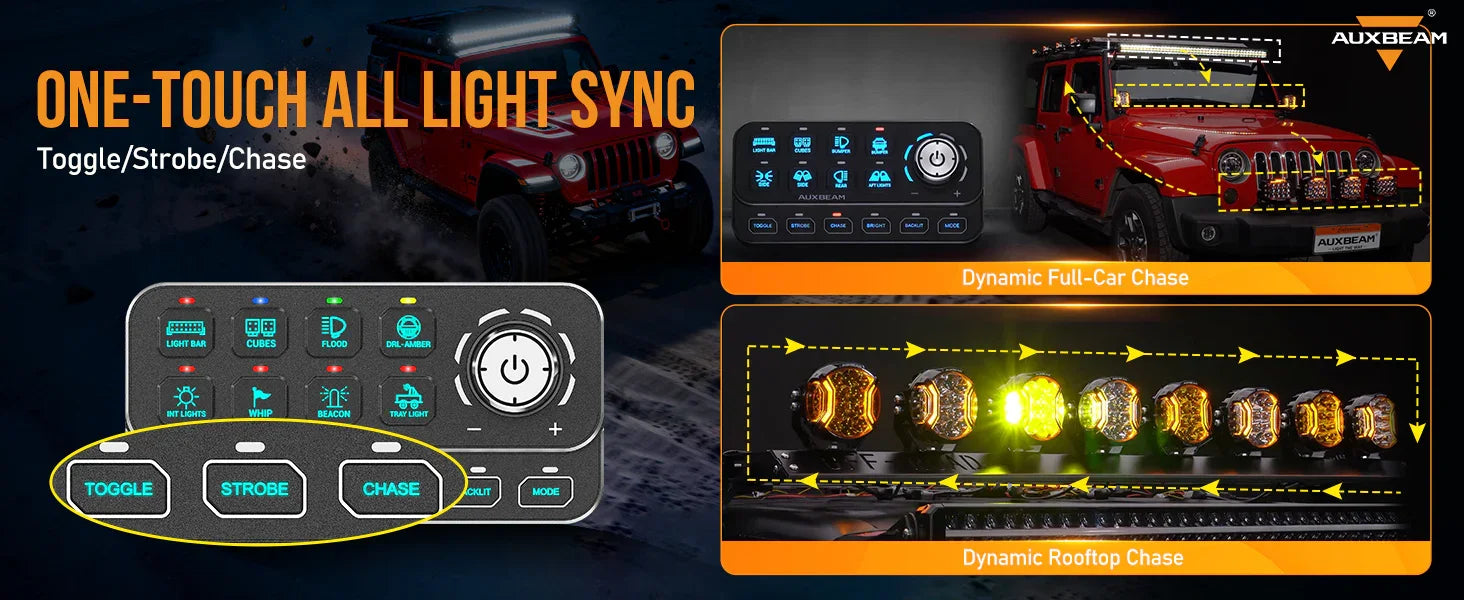

- One-touch synchronized control: toggle, strobe and configurable 2–8 circuit chase functions.
- Master dimming: adjust individual or grouped lighting and compatible accessory output.

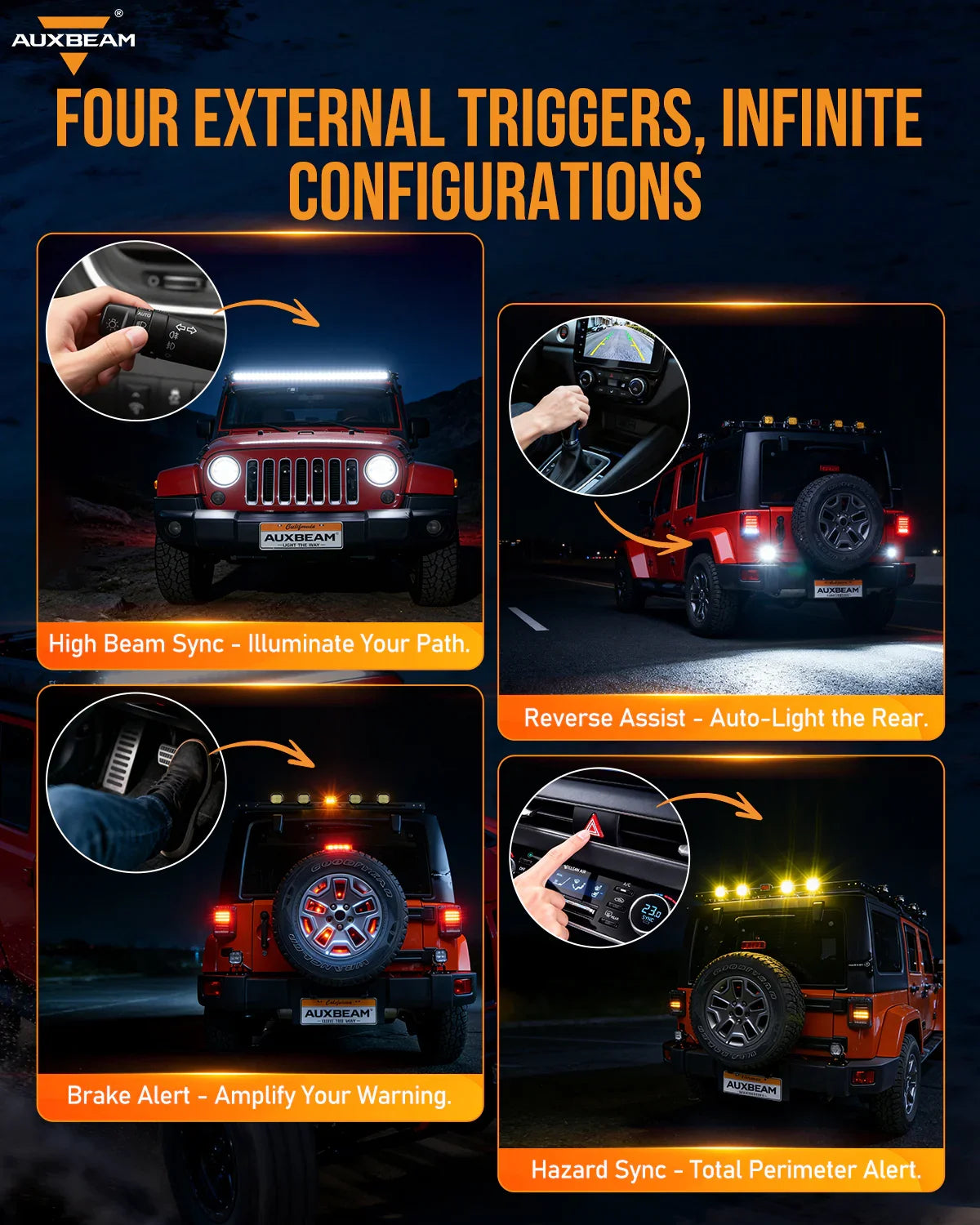

- Four external triggers: supports integration with vehicle signals such as high beam, reverse, brake and hazard circuits when properly wired.

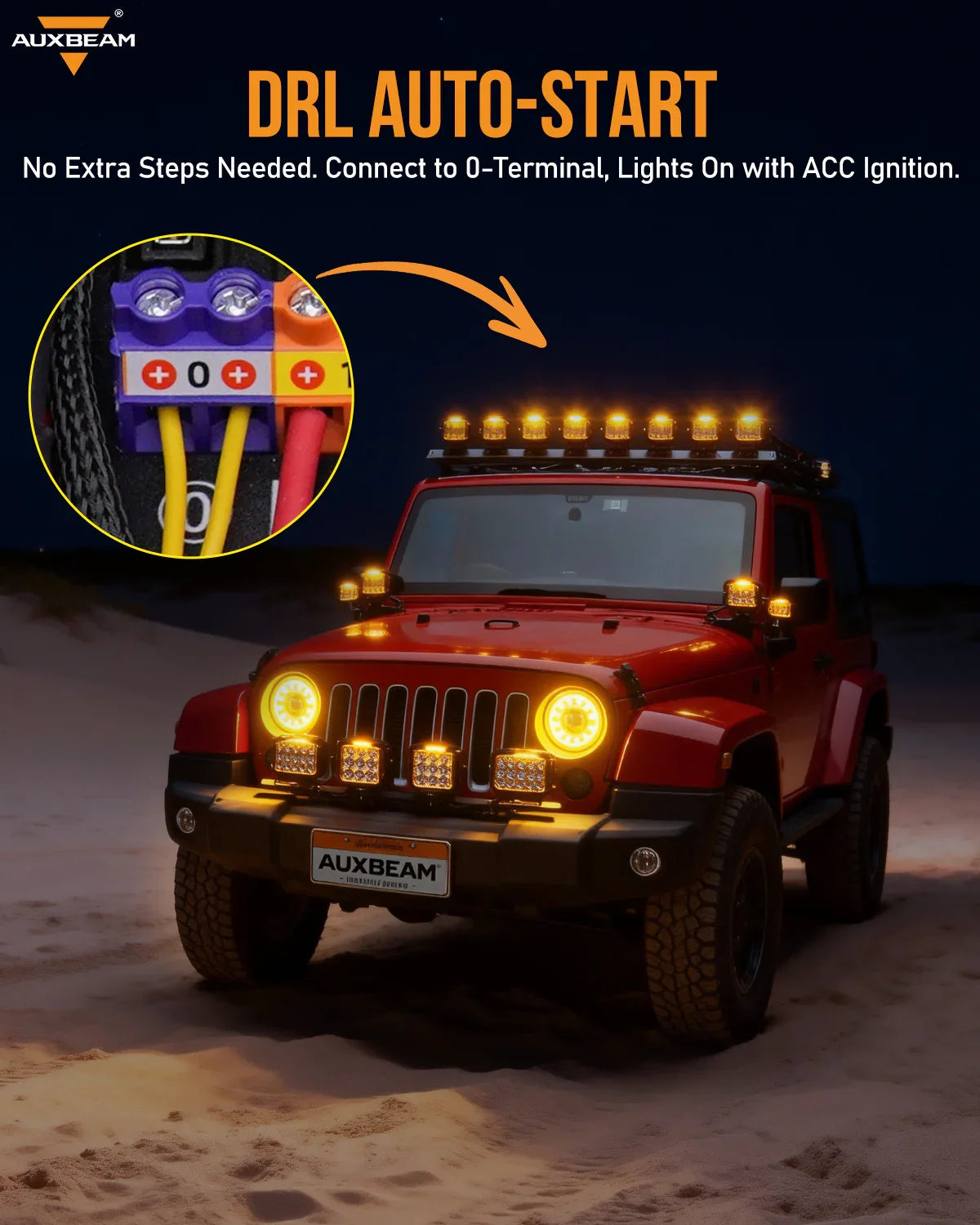

- DRL auto-start: the 0-terminal can activate connected lighting with ACC ignition.
- Four modes: Toggle, Momentary, Pulsed and SOS.
- Adjustable RGB backlighting: change panel color and brightness.

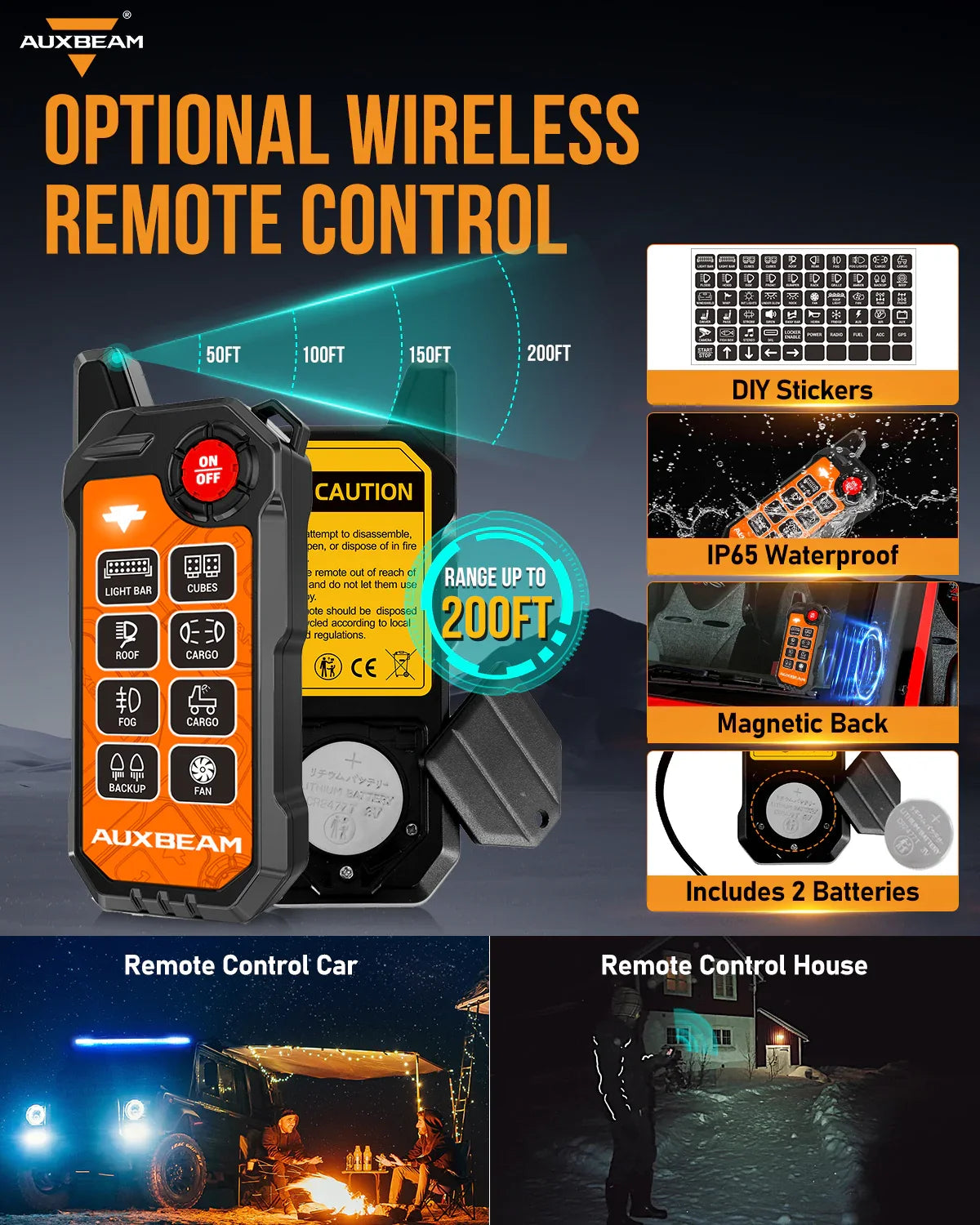

- Optional wireless remote: the remote-equipped configuration has a manufacturer-stated range of up to 200 feet.
- Manufacturer warranty: AUXBEAM states a three-year warranty for the KS-80.

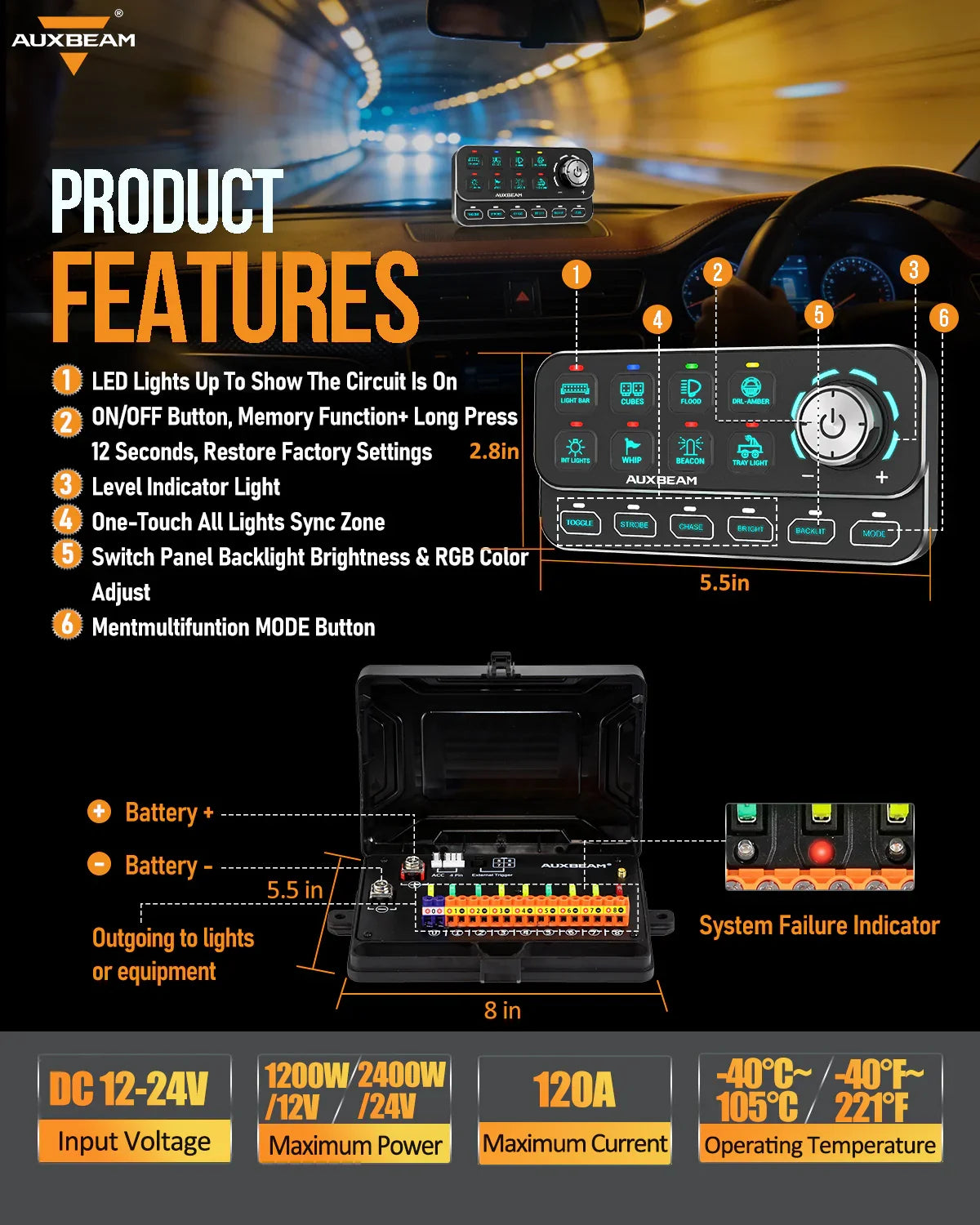

Specifications
- Voltage input: DC 12–24V
- Maximum current: 120A
- Rated current: 100A
- Rated voltage/current: 12V 20A / 24V 10A
- Maximum power: 1200W at 12V / 2400W at 24V
- Waterproof rating: IP65
- Operating temperature: -40°C to 105°C (-40°F to 221°F)
Available configurations

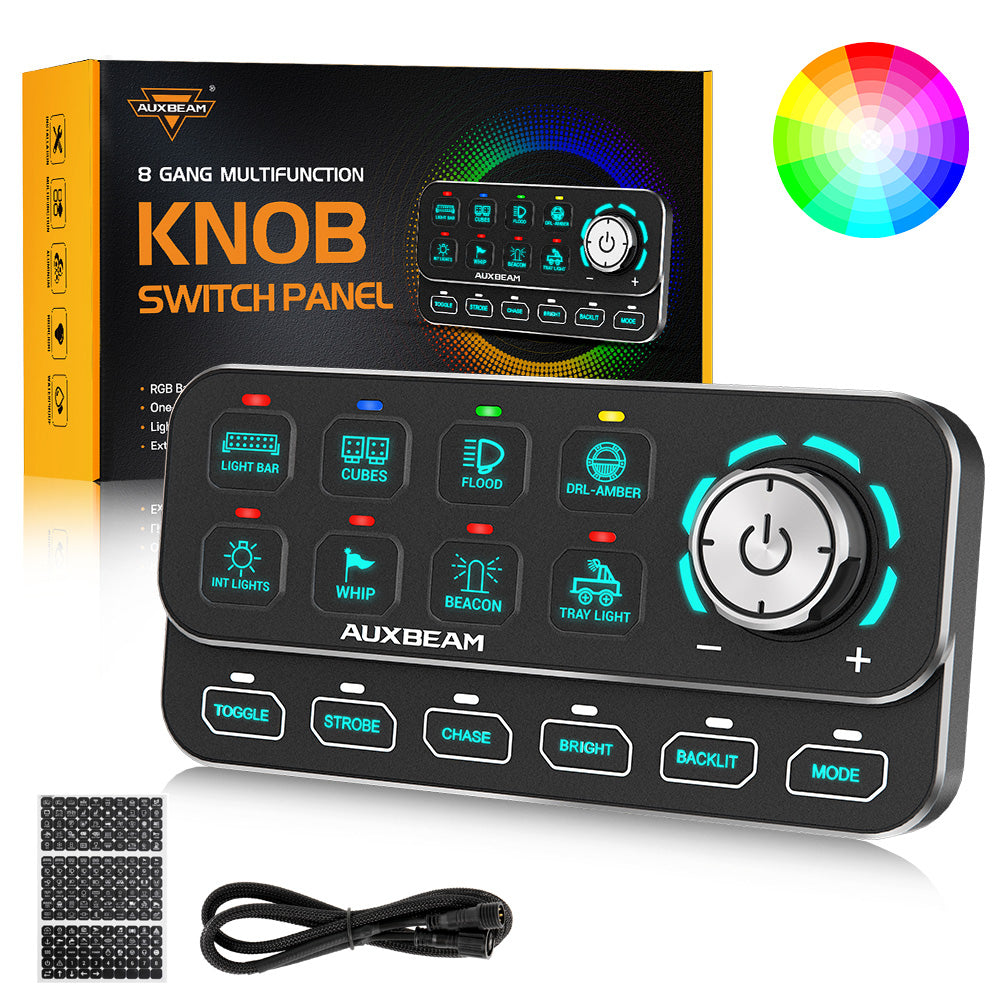

- Knob Switch Panel

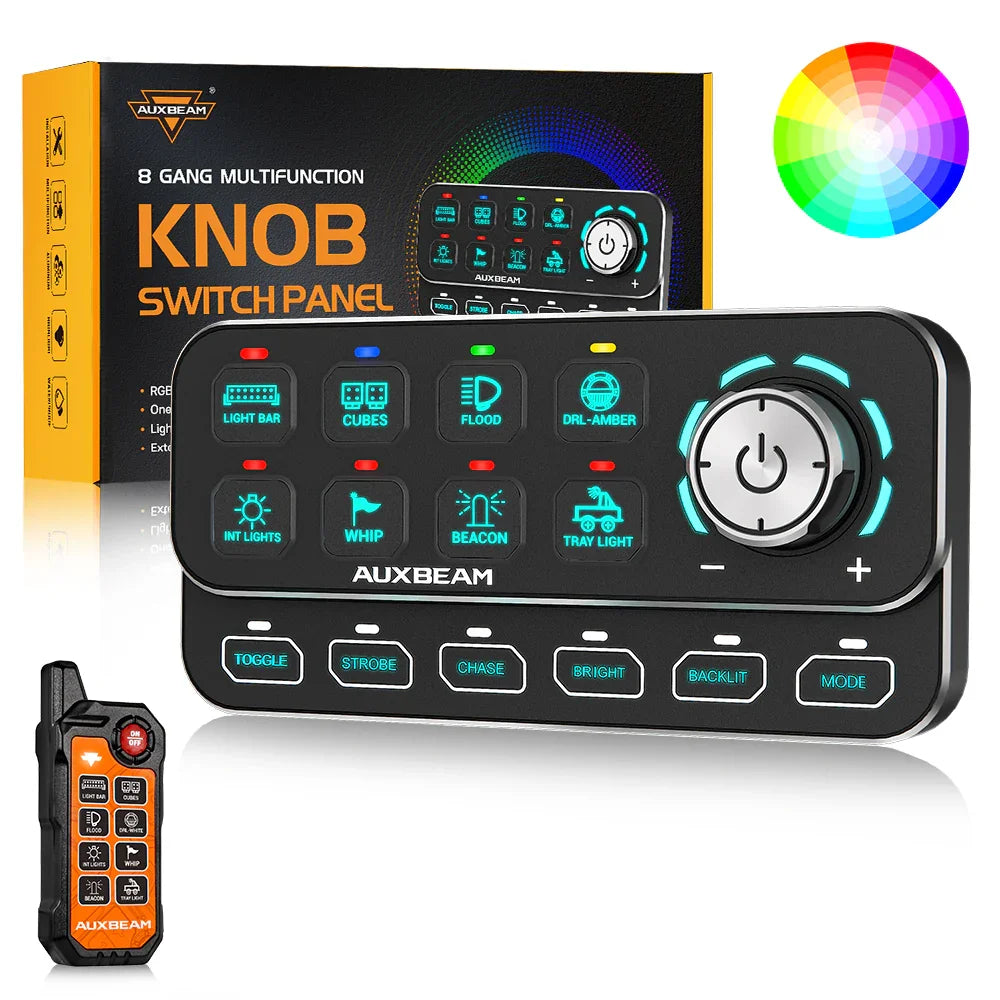

- Knob Switch Panel+Remote Controller
- Knob Switch Panel+3.94FT Extension Cable
- Knob Switch Panel+3.94FT Extension Cable+160pcs Universal Stickers

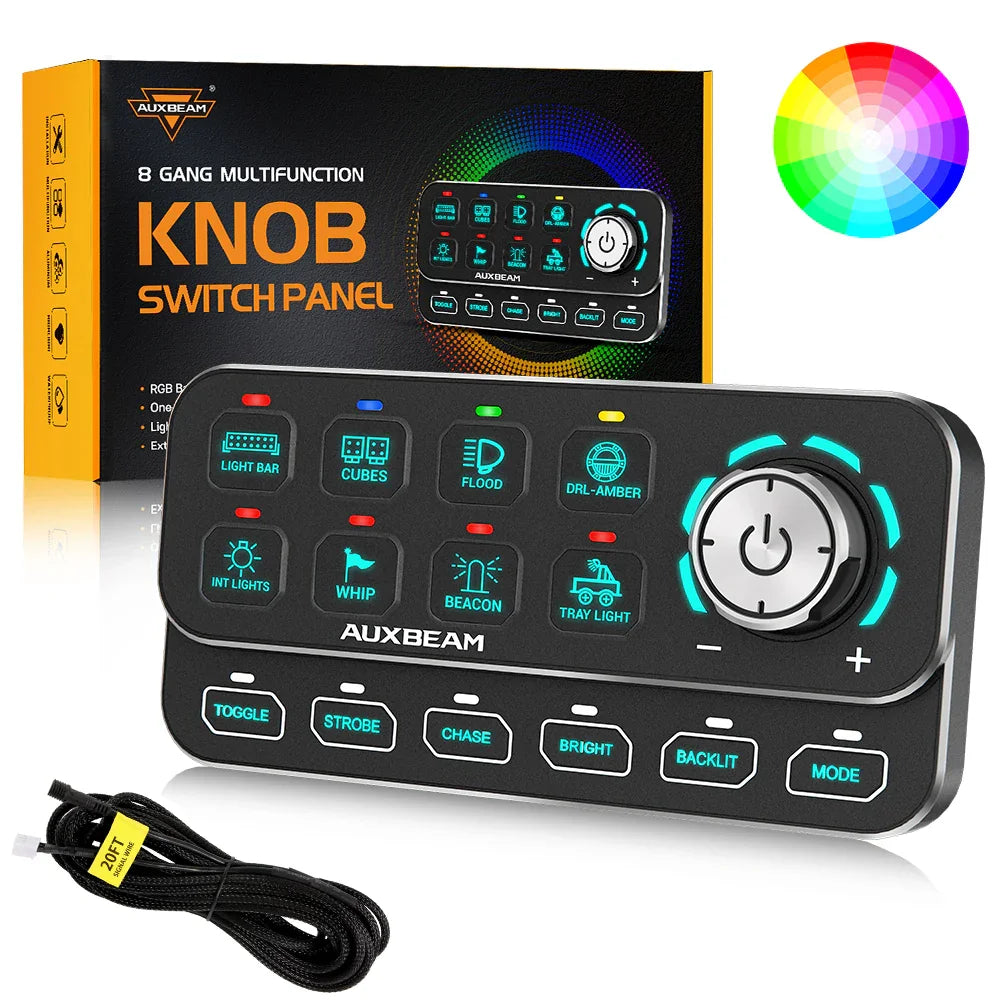

- Knob Switch Panel+20FT Extension Cable

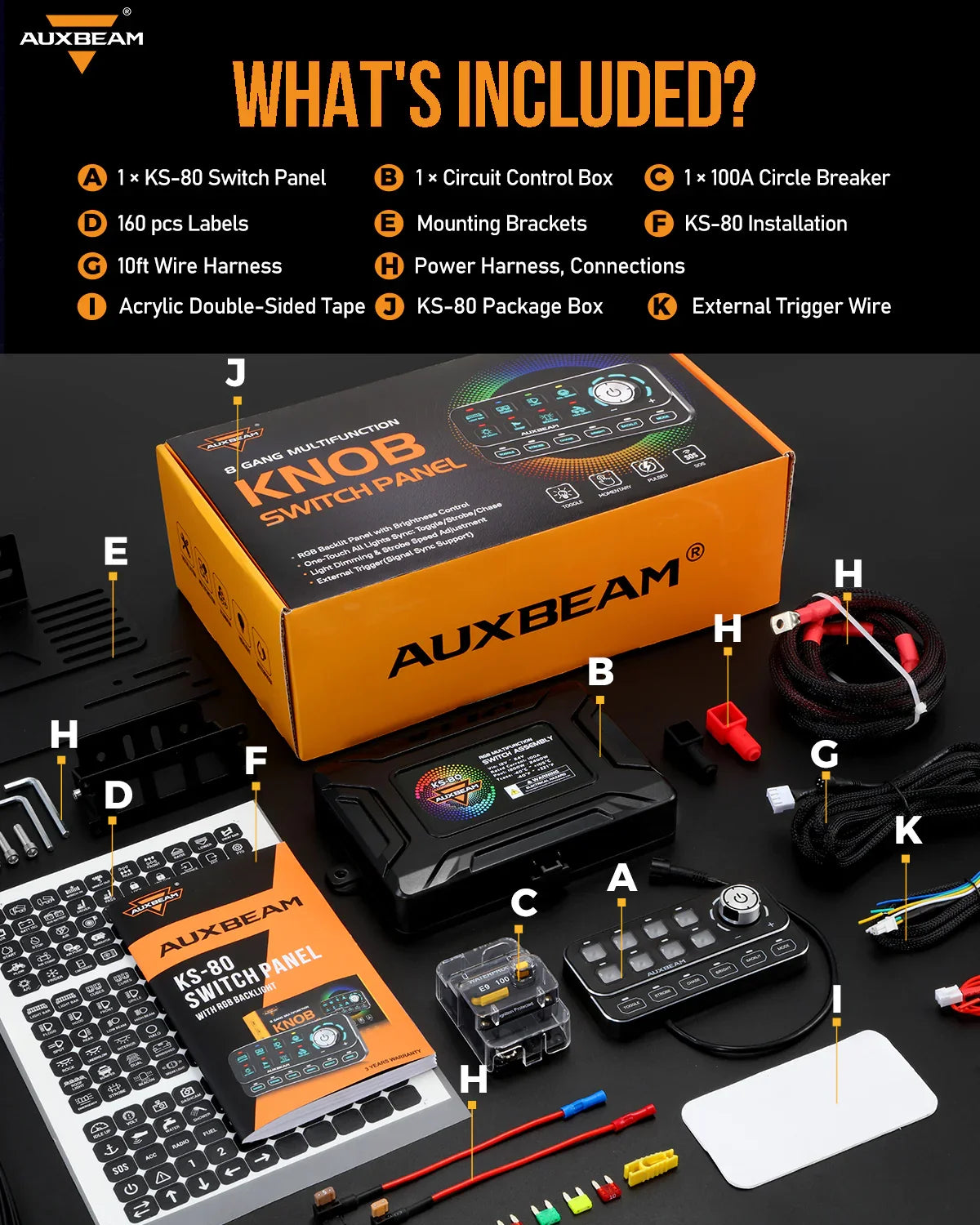

Every configuration includes one KS-80 knob switch-panel set. The remote controller, extension cable and universal stickers are included only when named in the selected configuration.
Extension cable information
The optional 3.94-foot and 20-foot four-pin extension cables support DC 12–24V installations. AUXBEAM describes them as thick, shielded cables designed to reduce EMI and RF interference. The 20-foot version extends the controller-box mounting location without splicing.
Vehicle fitment and installation
Universal fit for suitable UTV, ATV, SxS, truck, trailer, bus and motorhome installations. Verify mounting space, electrical capacity, circuit protection and wiring compatibility before installation. Universal fit does not mean vehicle-specific plug-and-play installation.
Manufacturer video resources
This item may ship separately. A shipping surcharge is applied automatically in the cart.
Additional information
| Type | Knob Switch Panel, Knob Switch Panel+Remote Controller, Knob Switch Panel+3.94FT Extension Cable, Knob Switch Panel+3.94FT Extension Cable+160pcs Universal Stickers, Knob Switch Panel+20FT Extension Cable |
|---|
