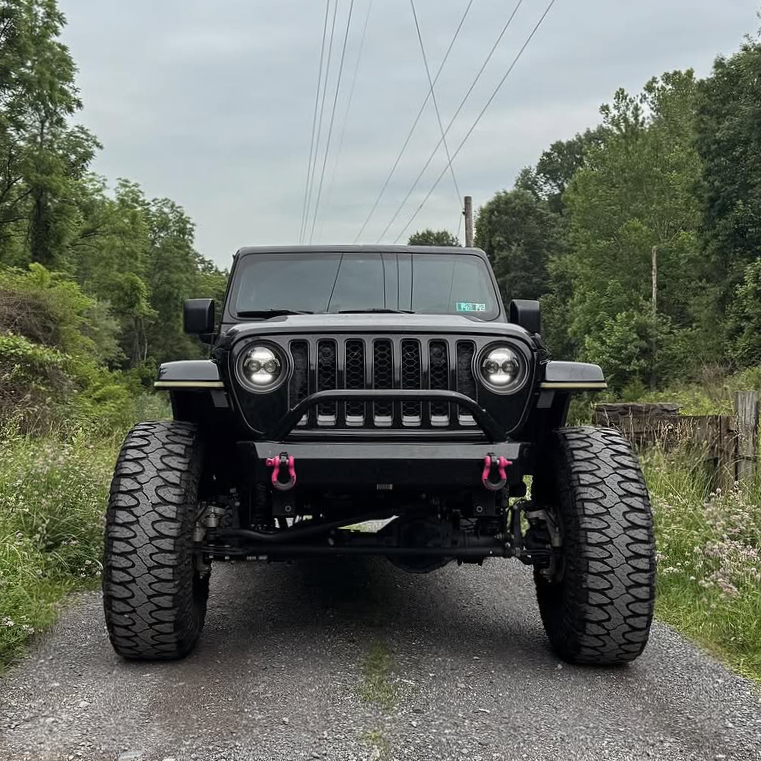

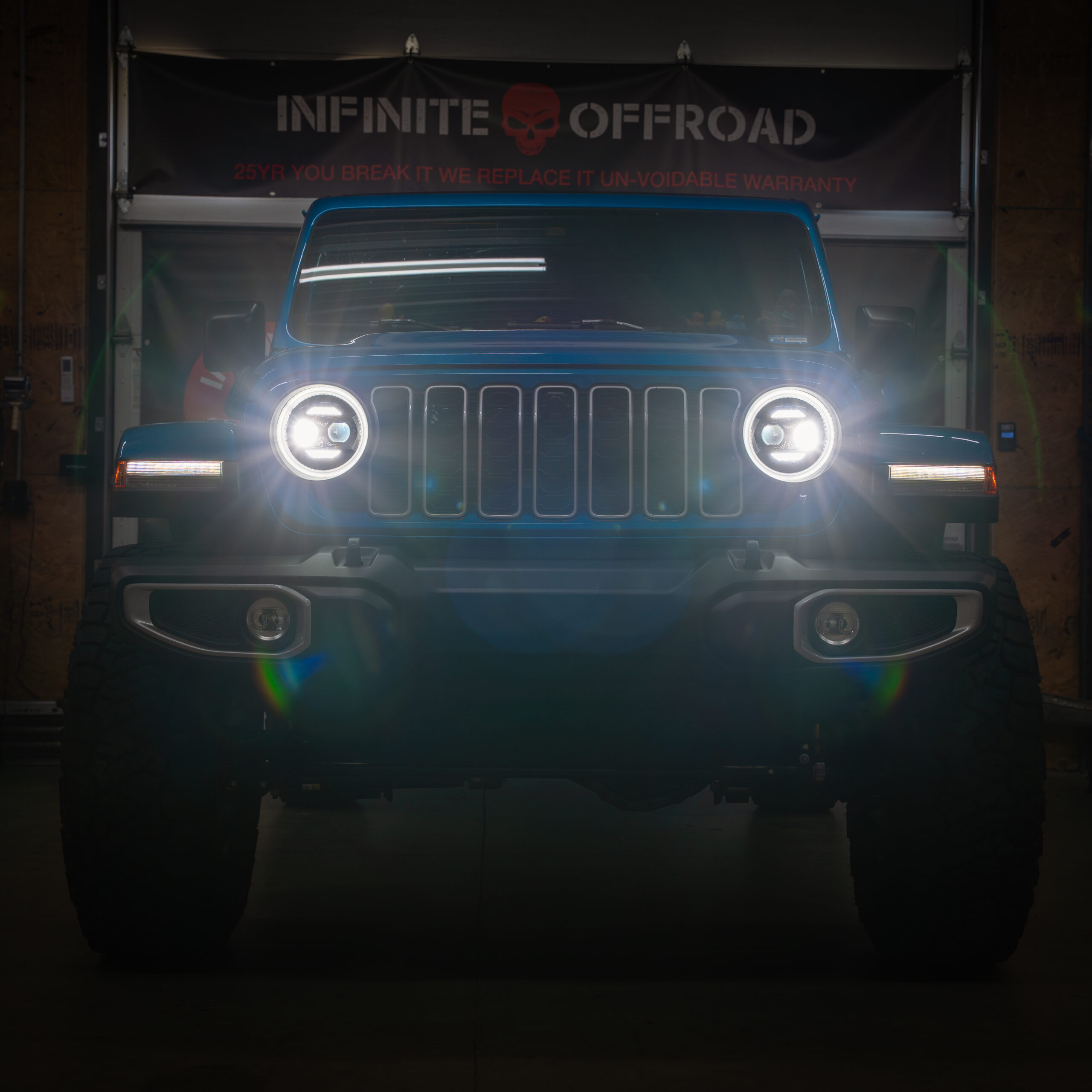

Jeep JL / JT 9-inch Chronos RGB+W Headlights with DRL & Turn Signals

Description

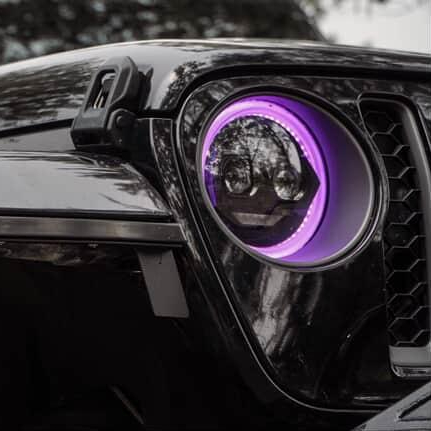

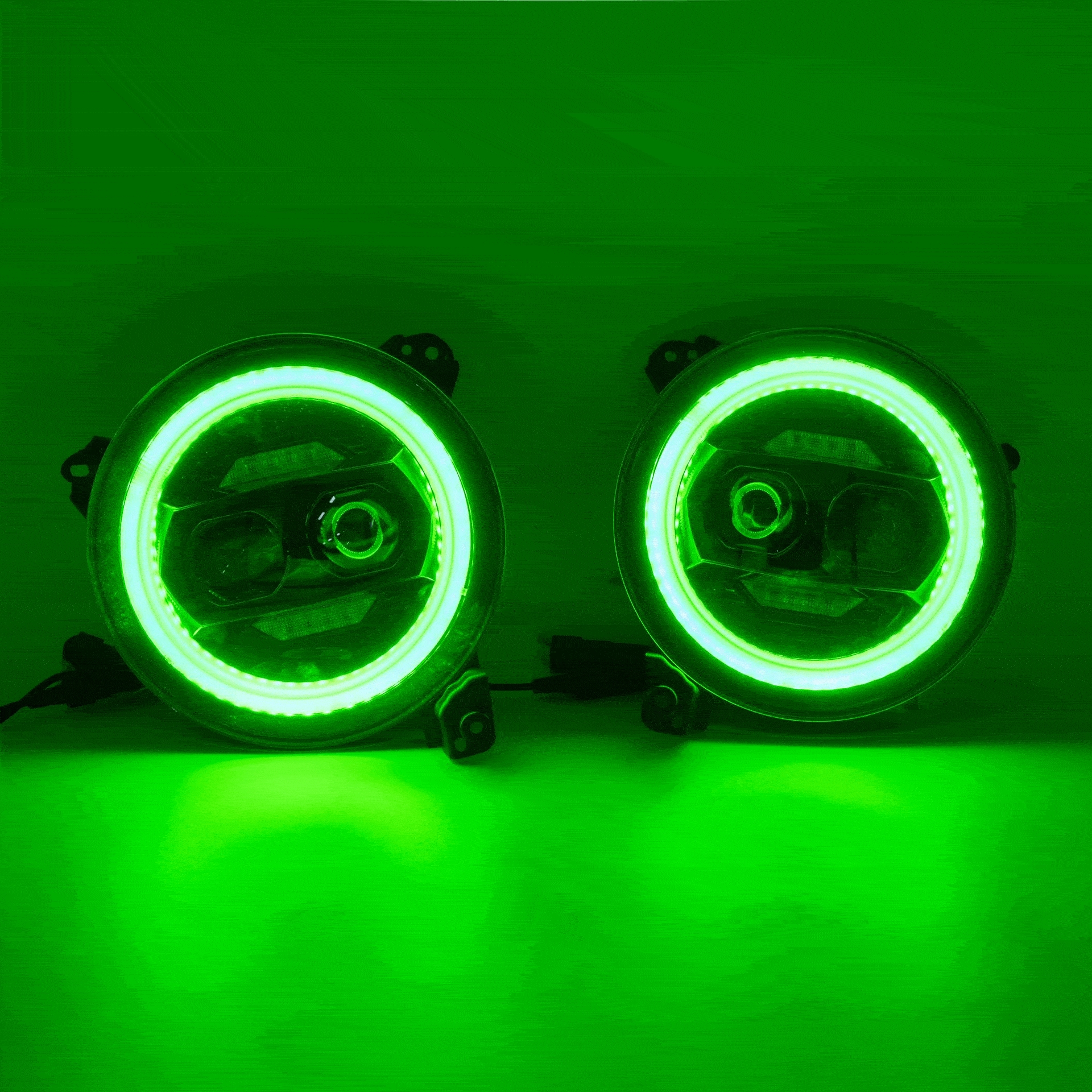

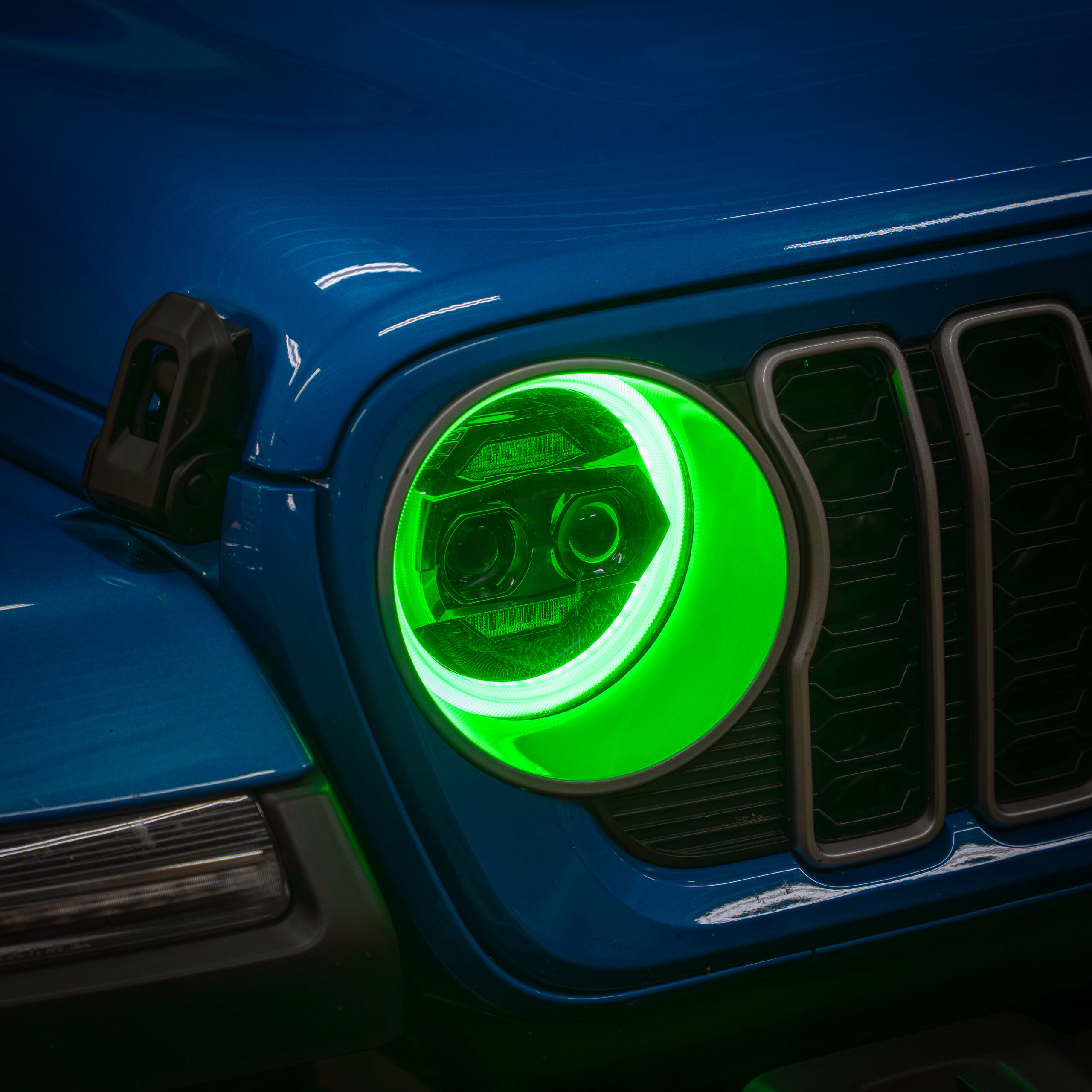

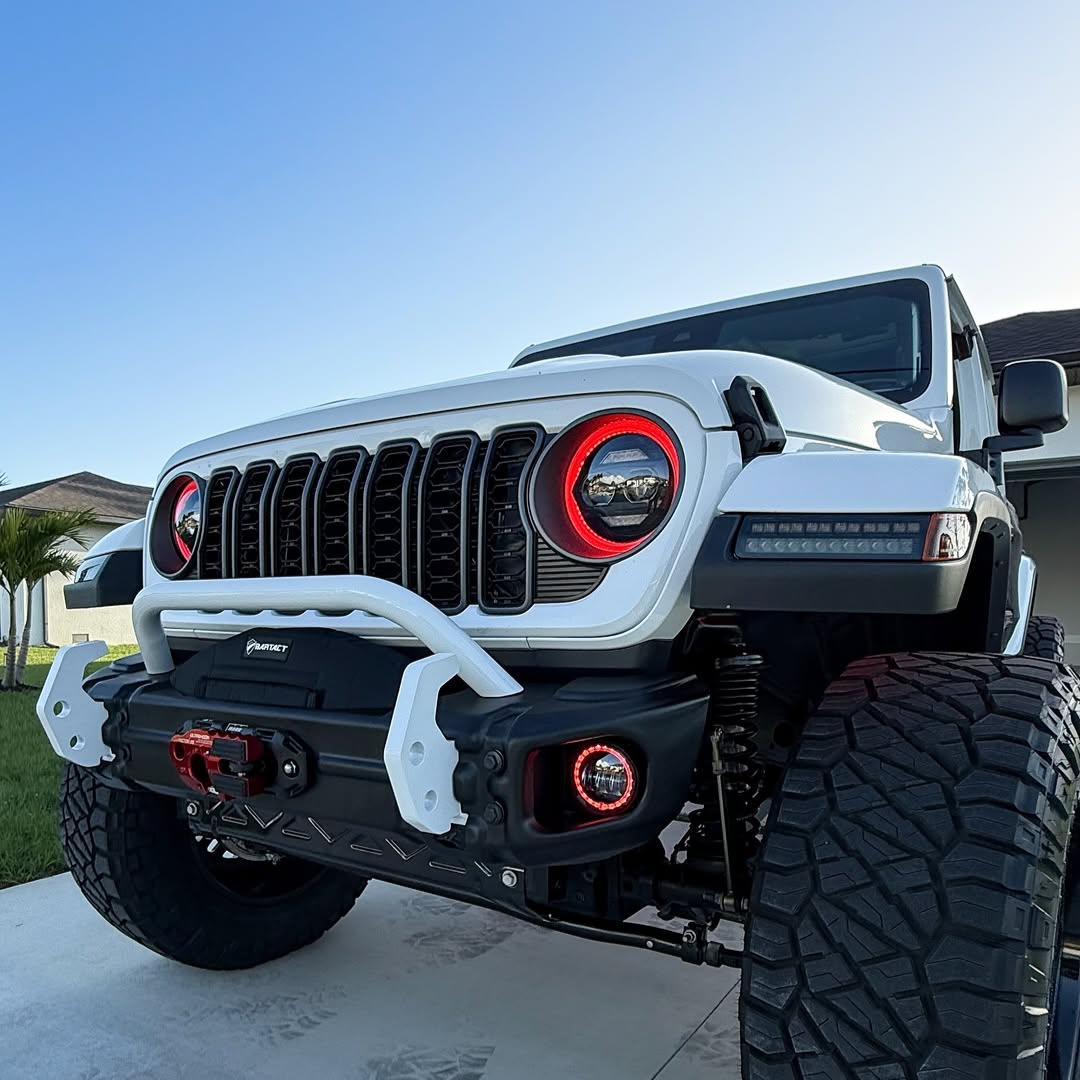

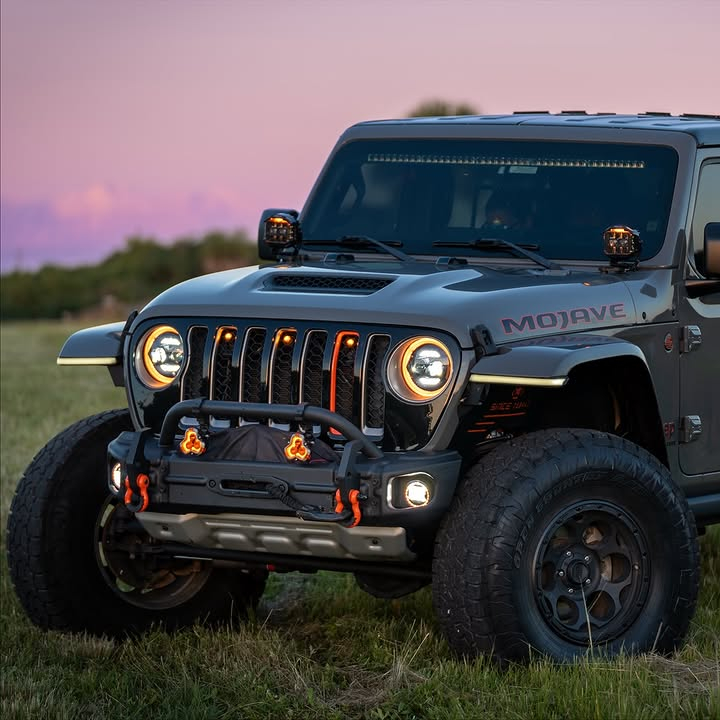

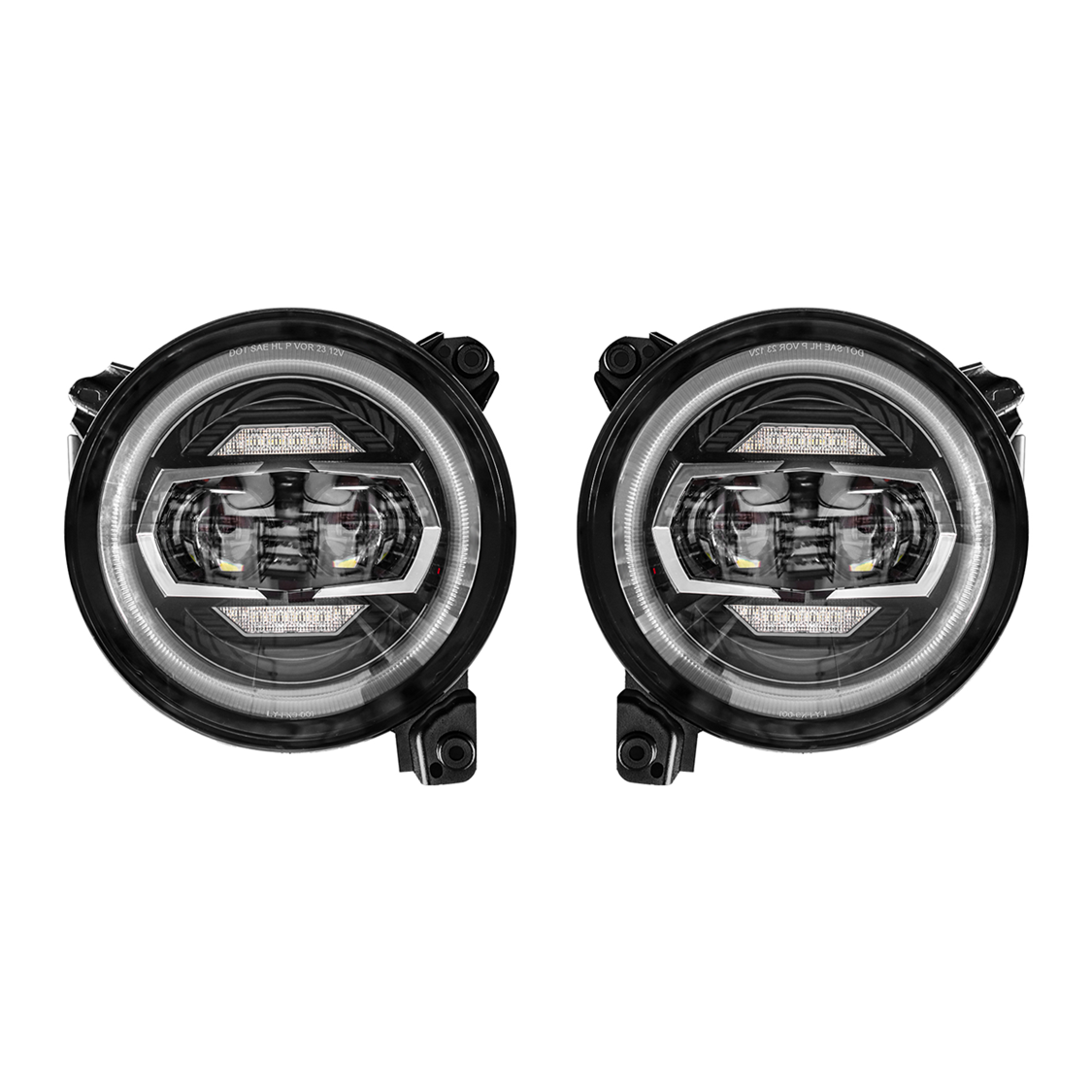

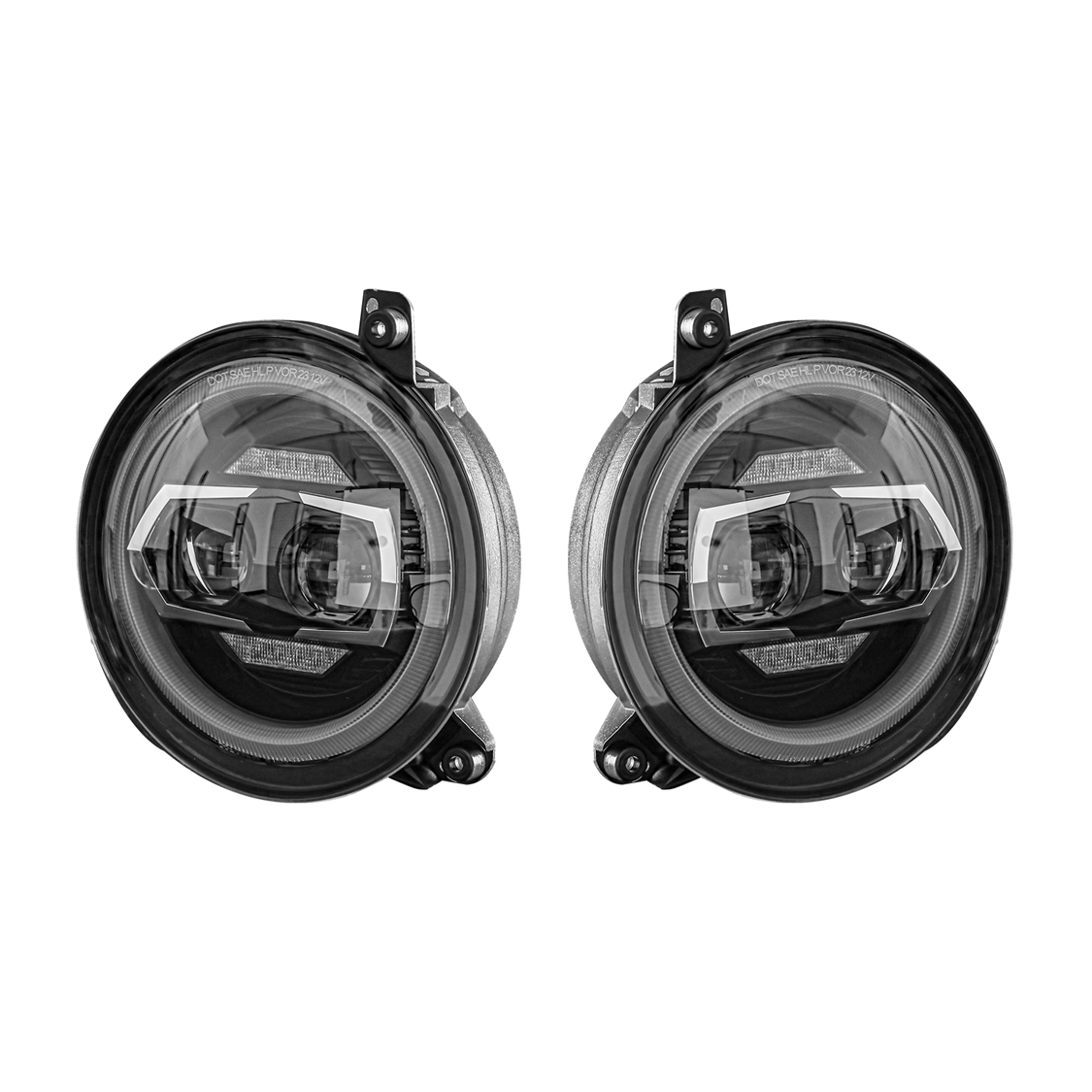

Infinite Offroad 9-inch Chronos headlights with five-pin RGB+W color-changing halos and separate dedicated DRL and turn-signal functions in the center of each light. Includes two headlights and the correct JL/JT connector. High beam: 60W. Low beam: 30W.

Supplier estimated dispatch is 1–2 weeks. Available on backorder.

DRL and turn wiring

Yellow wire: turn signal. Green wire: DRL. The turn-signal tap harness is optional and helps connect the turn function at the fender. Select YES to include it, or NO if it is not required. DRL and turn functions still need the appropriate vehicle electrical connections.

Changing from factory non-LED lighting to LED or aftermarket LED may require vehicle settings to be updated. The supplier suggests Tazer Mini or a shop with JScan; programming or licensing charges may apply. Confirm wiring and connector compatibility before installation.

Manufacturer 25-year replacement warranty, including accidental damage, subject to manufacturer terms.

Controller options and compatibility

NO (I HAVE ONE): connect to an existing compatible Infinite Offroad 5-pin RGB+W rock-light system and operate together. Required connection wiring is included. YES: includes a dedicated Bluetooth and RF controller for independent operation. A rock-light kit is not included. Select the dedicated controller if you do not already have a compatible system.

The dedicated controller supports the BLEDIM phone app and a paired RF backup remote, which does not require line of sight. Connect within the app, not the phone Bluetooth settings. The controller retains its last setting after a power cycle. To pair or lock the remote, hold its green power button, remove the controller fuse for five seconds, reinstall it, then continue holding the button for three seconds.

The blue override wire may connect to brake power to turn the lights red, including when they are off. The supplier suggests a separate switch to enable that override only when wanted. The white override wire can connect to a switch or courtesy-light circuit to turn the lights white. Follow the wiring guide before connecting override circuits.

Compatible RGB+W extensions, pods, strips, dome lights, whips and accent lights are sold separately. Manufacturer 25-year replacement warranty, including accidental damage, subject to manufacturer terms.

Download the RGB+W controller instructions and wiring diagram (PDF)
