RGB+W Quad-Row LED Wheel Ring Kit – Set of Four

Description

Infinite Offroad set of four quad-row RGB+W rings with wiring. Optional dedicated Bluetooth/RF controller; without it, connect to an existing compatible five-pin RGB+W rock-light controller.

• 16-inch rings: generally 20-inch and larger wheels.
• 17/18-inch rings: generally 22-inch and larger wheels.
• 20-inch rings: generally 24-inch and larger wheels.

No more than two quad-row rings per controller lead. The 18-inch version requires a high-output 30A or 50A controller.

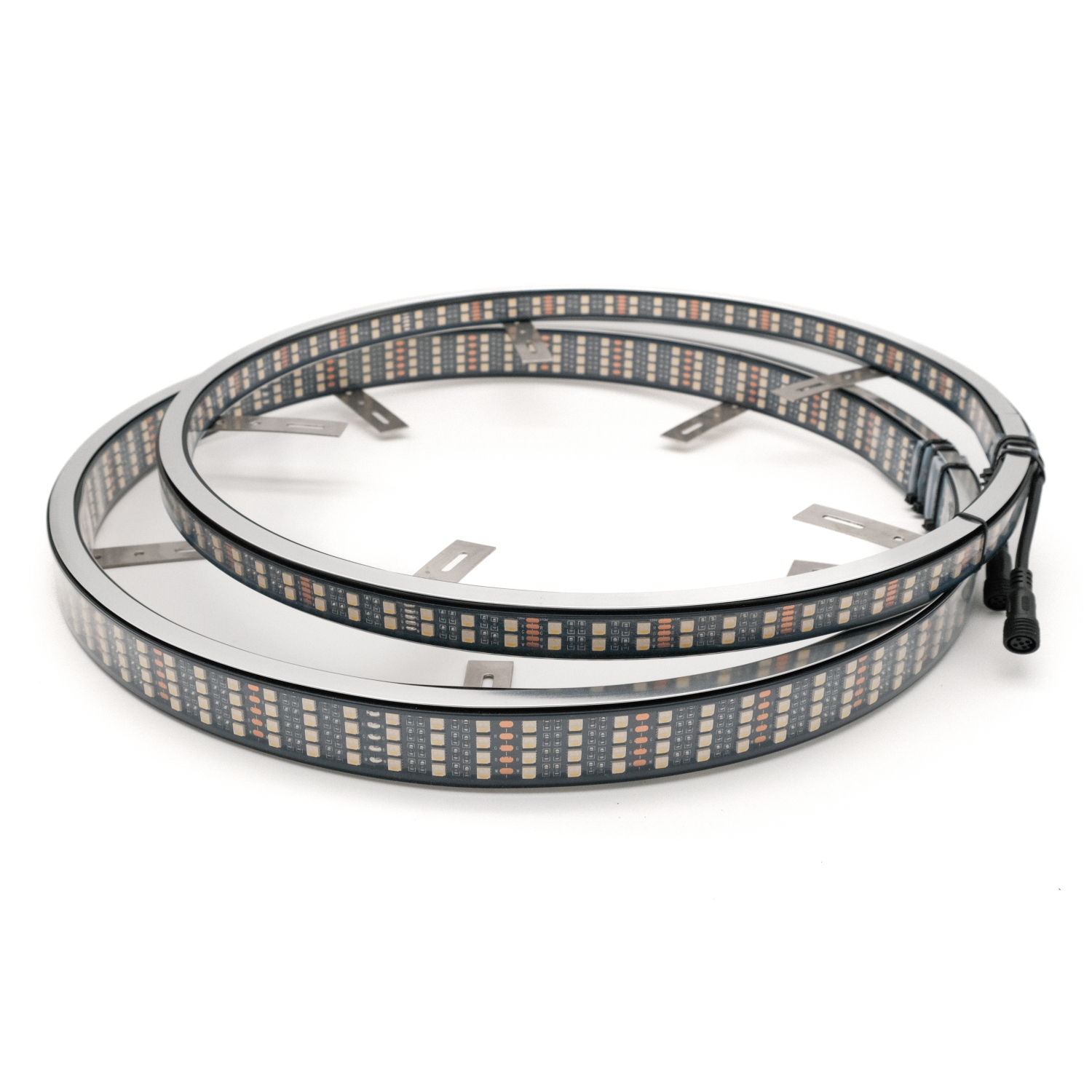

Ring measurements

Nominal / inside / outside diameter: 16 / 15.25 / 16.25 inches; 17 / 16.5 / 17.5 inches; 18 / 17.5 / 18.5 inches; 20 / 19.25 / 20.25 inches.

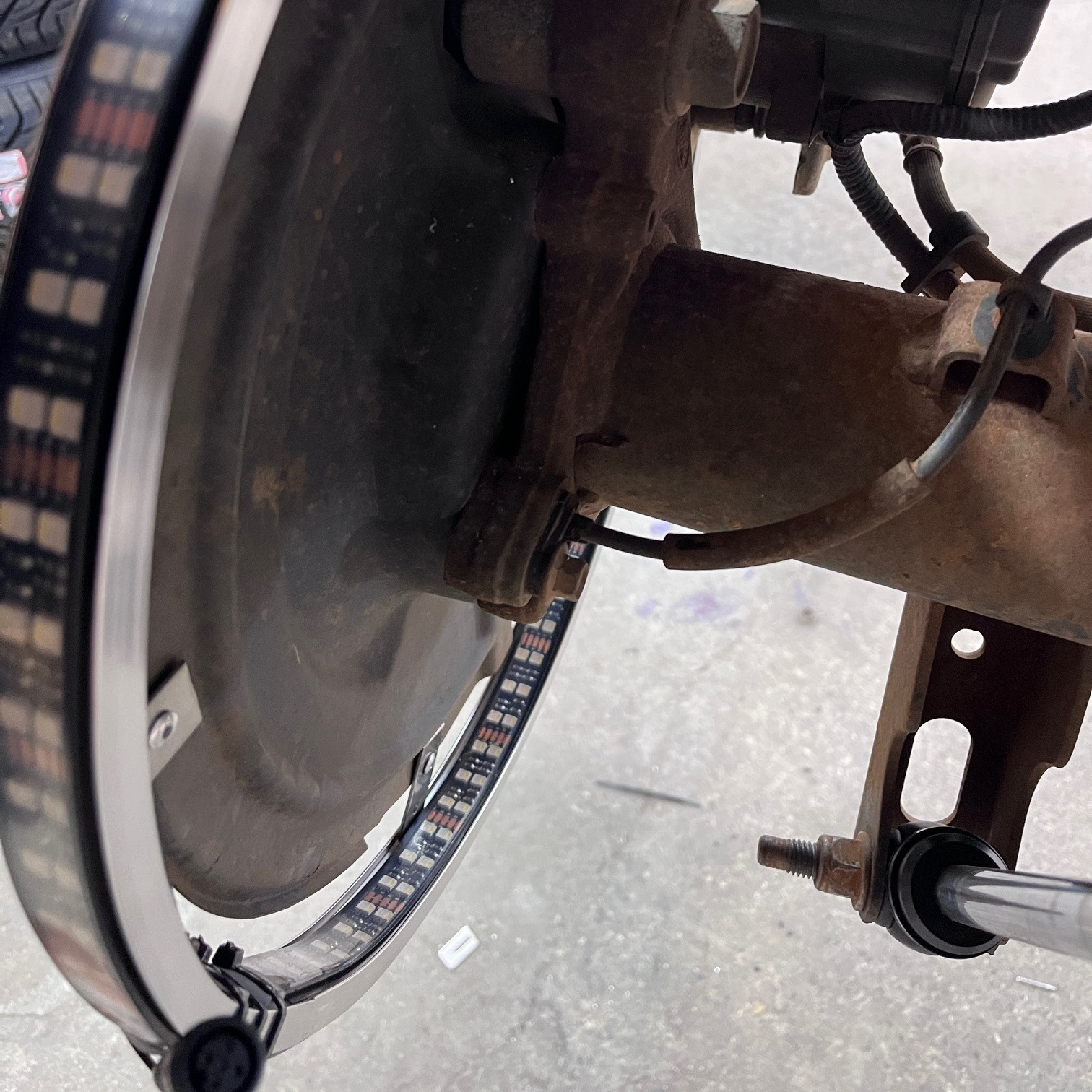

Measure your wheel, rotor, dust shield and caliper clearance before ordering. Test-fit before installation and before driving. Brackets may require modification; modified rings cannot be returned. Large rings may exceed the reach of the mounting tabs. Wheel rings are not designed for UTVs or ATVs, and are not recommended for wheels 18 inches or smaller.

Manufacturer 25-year replacement warranty, including accidental damage, subject to manufacturer terms.

Controller options and compatibility

NO (I HAVE ONE): connect to an existing compatible Infinite Offroad 5-pin RGB+W rock-light system and operate together. Required connection wiring is included. YES: includes a dedicated Bluetooth and RF controller for independent operation. A rock-light kit is not included. Select the dedicated controller if you do not already have a compatible system.

The dedicated controller supports the BLEDIM phone app and a paired RF backup remote, which does not require line of sight. Connect within the app, not the phone Bluetooth settings. The controller retains its last setting after a power cycle. To pair or lock the remote, hold its green power button, remove the controller fuse for five seconds, reinstall it, then continue holding the button for three seconds.

The blue override wire may connect to brake power to turn the lights red, including when they are off. The supplier suggests a separate switch to enable that override only when wanted. The white override wire can connect to a switch or courtesy-light circuit to turn the lights white. Follow the wiring guide before connecting override circuits.

Compatible RGB+W extensions, pods, strips, dome lights, whips and accent lights are sold separately. Manufacturer 25-year replacement warranty, including accidental damage, subject to manufacturer terms.

Download the RGB+W controller instructions and wiring diagram (PDF)
