RGB+W Starter Rock Light Kit

Description

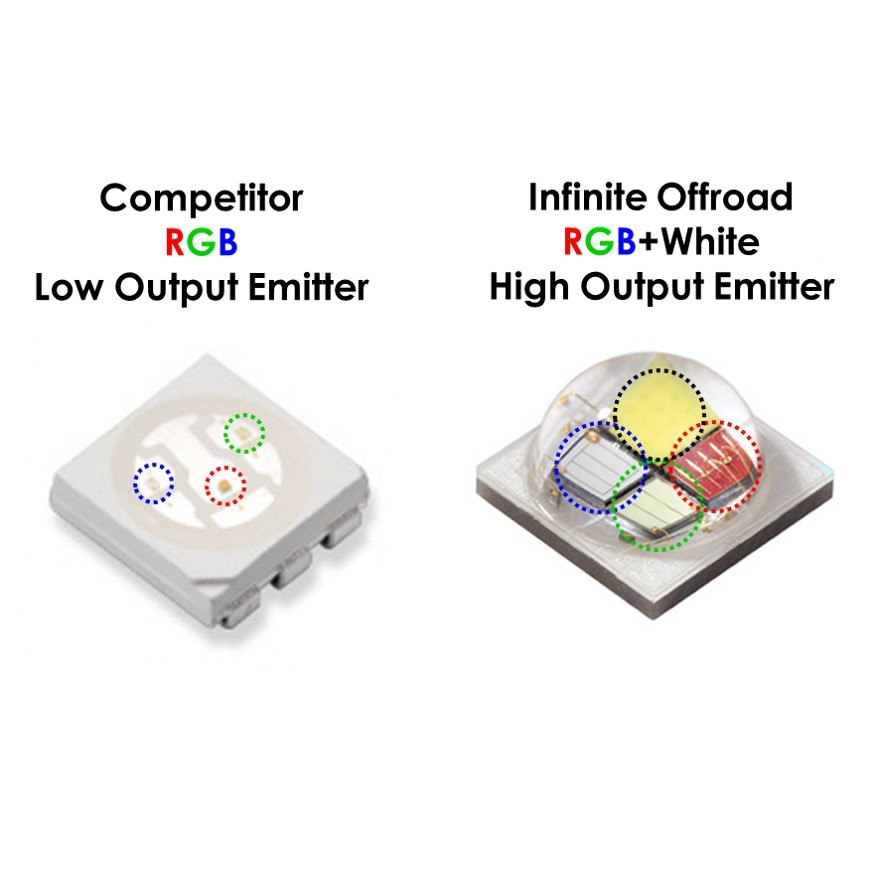

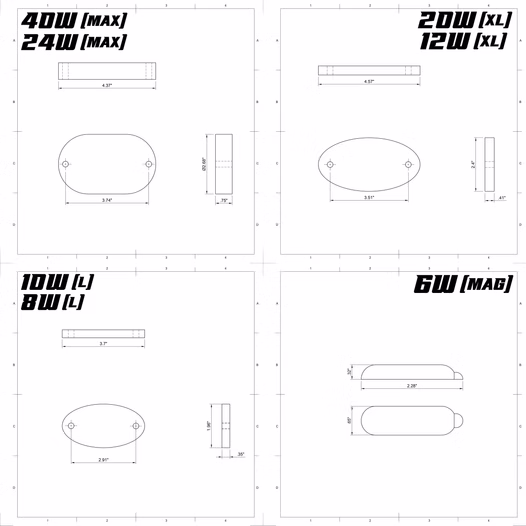

Infinite Offroad modular five-pin RGB+W starter rock-light system with Bluetooth BLEDIM control and backup RF remote. Select pod quantity and power: 4W small, 10W large, 20W X-large, 40W MAX or 6W LUX magnetic. RGB and dedicated white emitters, IP68 lights, sealed controller and watertight screw connections. Supplier specifications list 12-foot pod leads; no-lead pods with 5-foot extensions are a separate option to discuss before ordering.

Controller operation

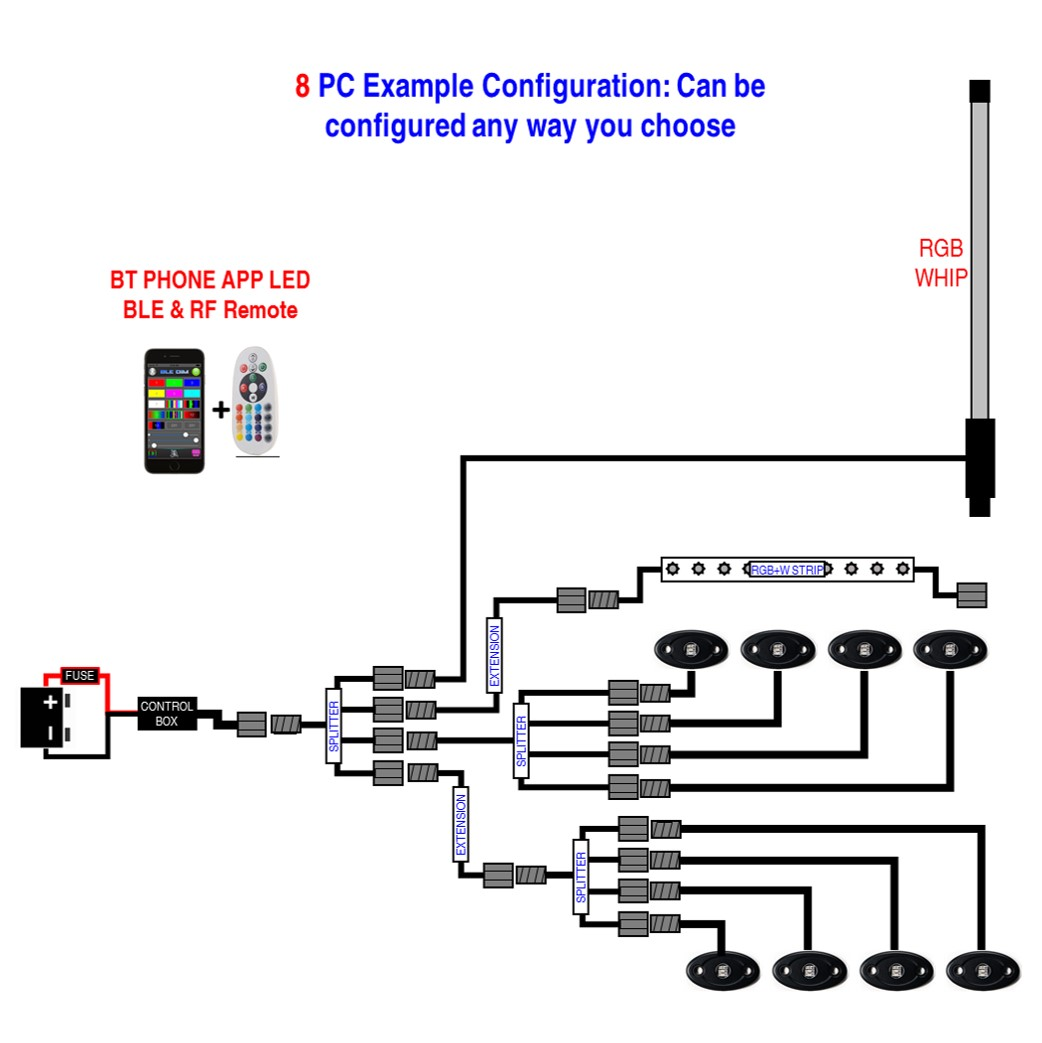

Connect within BLEDIM, not through phone Bluetooth settings. Controller retains its last setting after cycling power. To pair/lock the RF remote, hold green power, remove the controller fuse for five seconds, reinstall, and continue holding three seconds. Blue override wire can trigger red from brake power; white override can trigger white from courtesy/switch power. Follow the wiring guide.

Controller instructions and wiring guide (PDF)

Manufacturer 25-year replacement warranty, including accidental damage, subject to manufacturer terms.
