RGB+W Valance Light Kit

Description

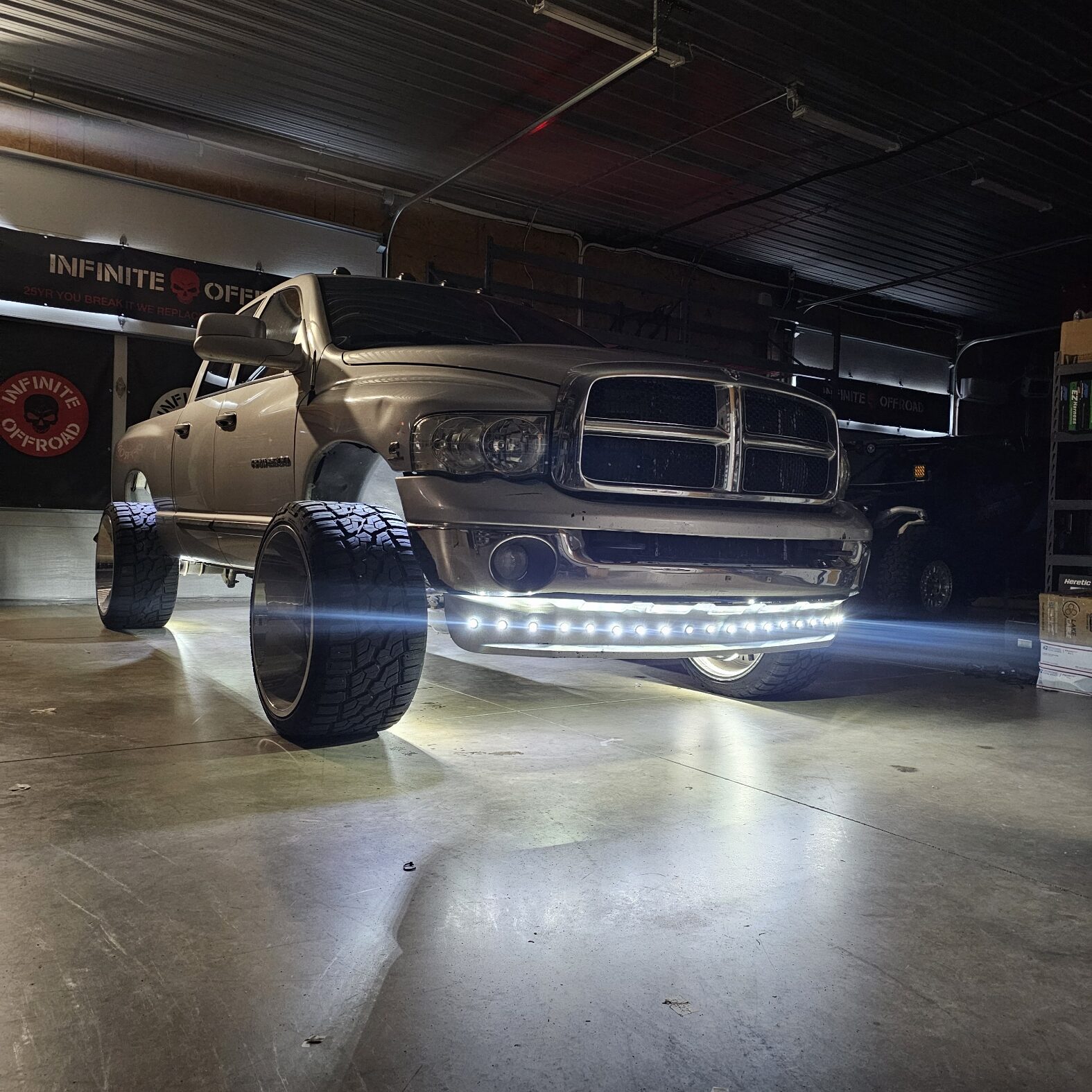

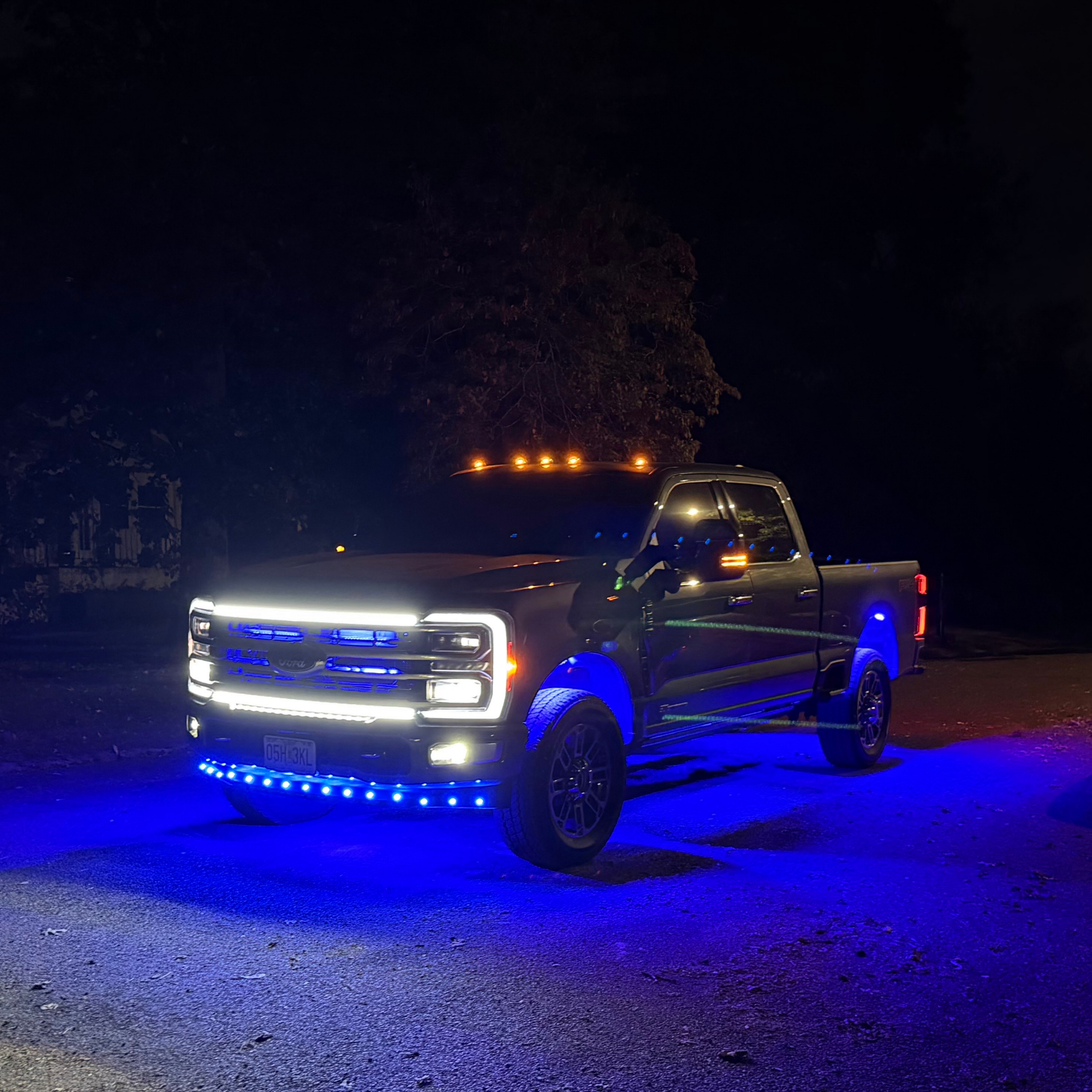

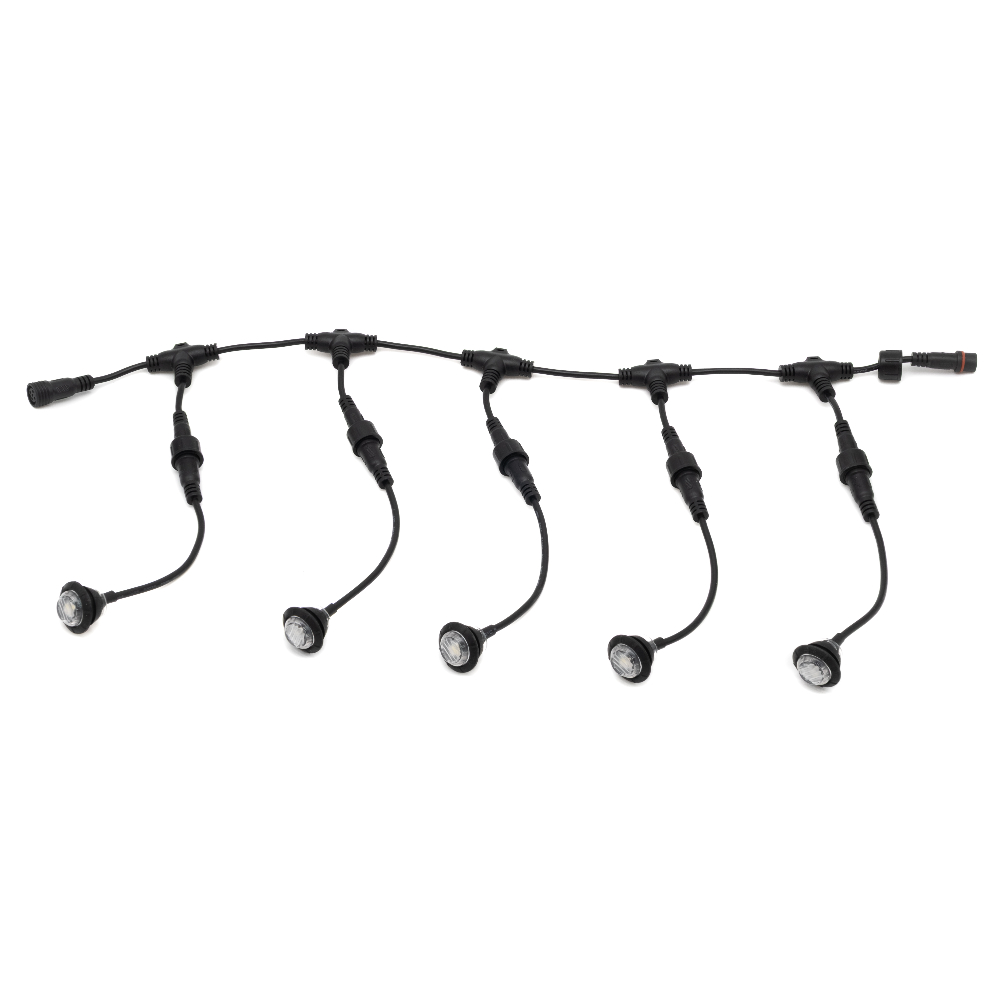

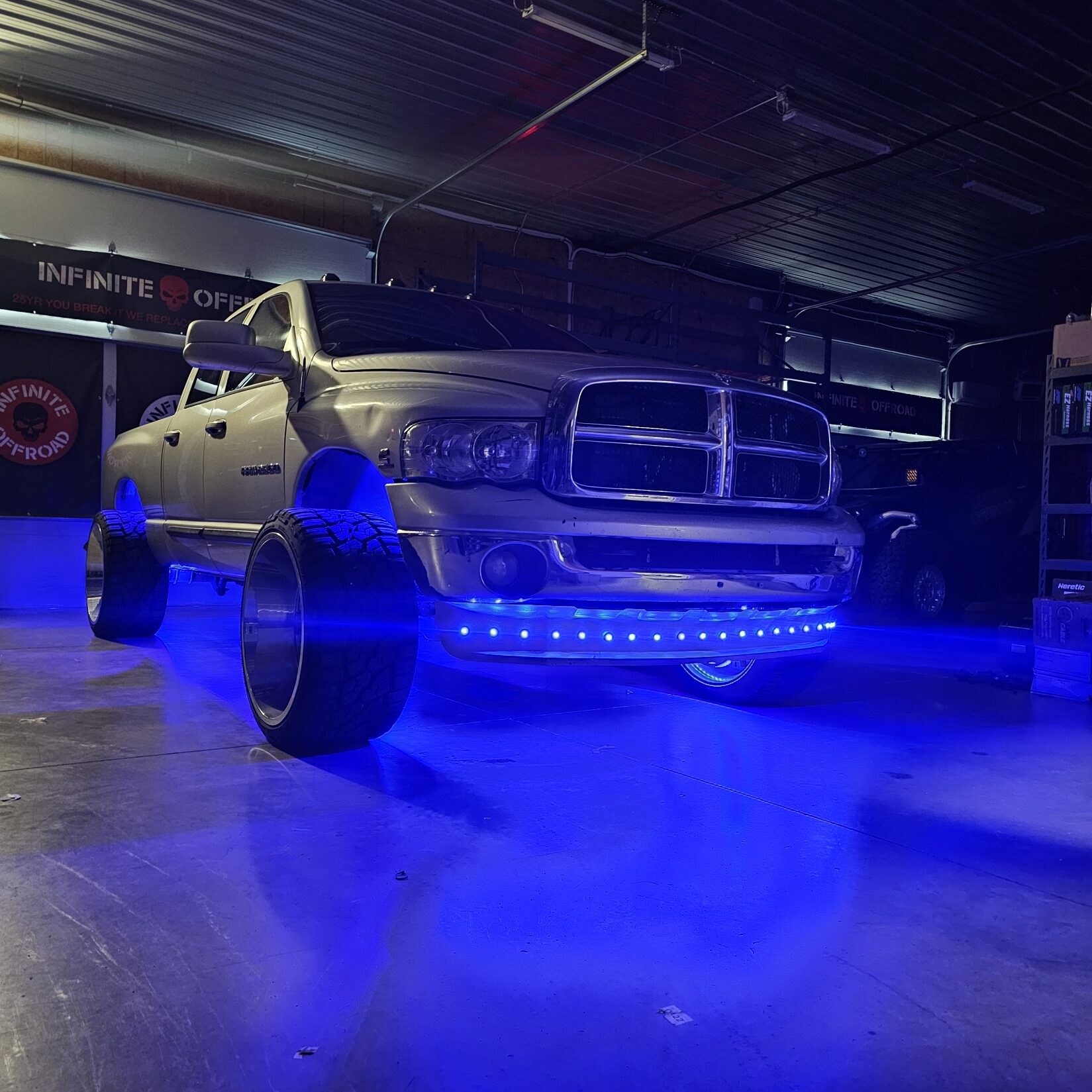

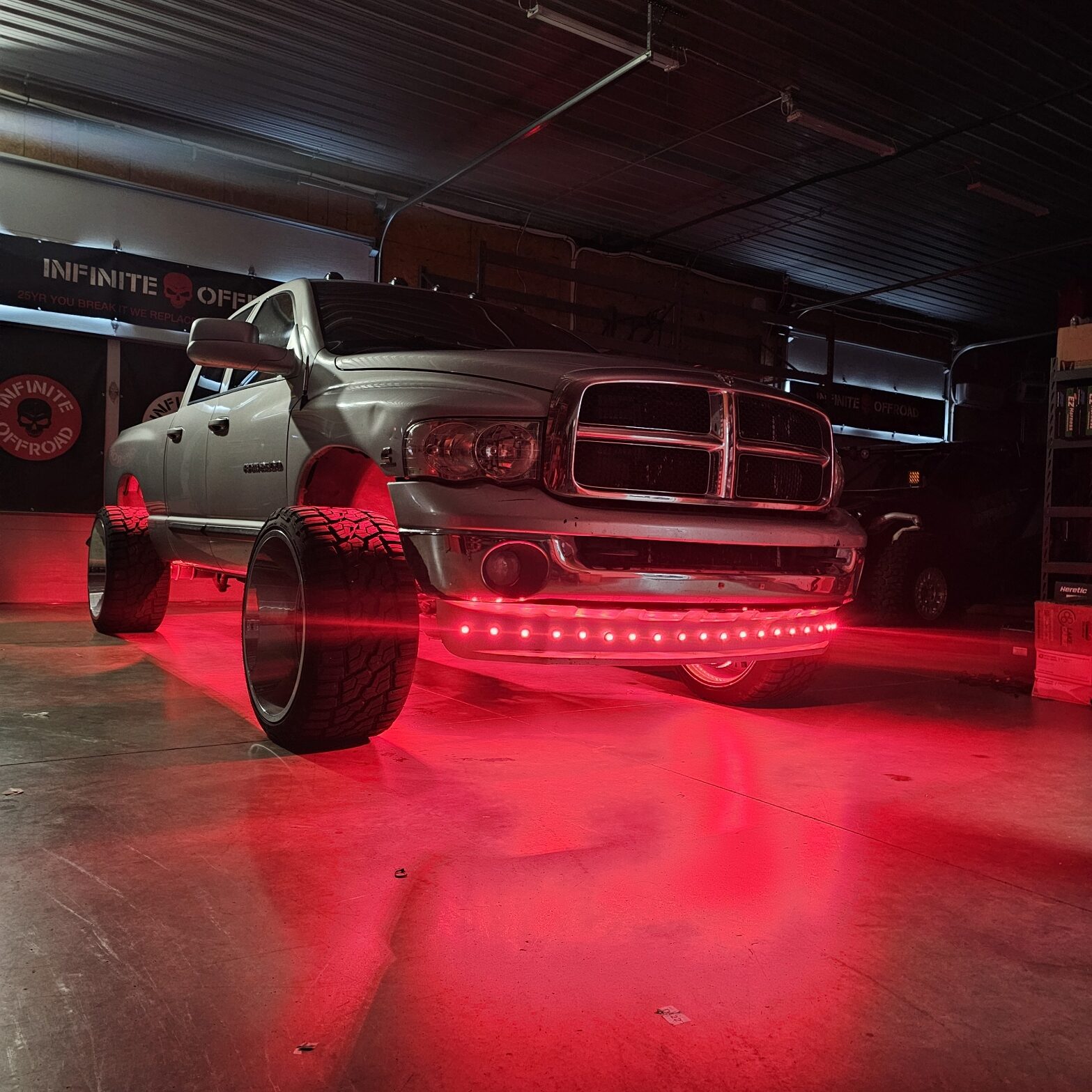

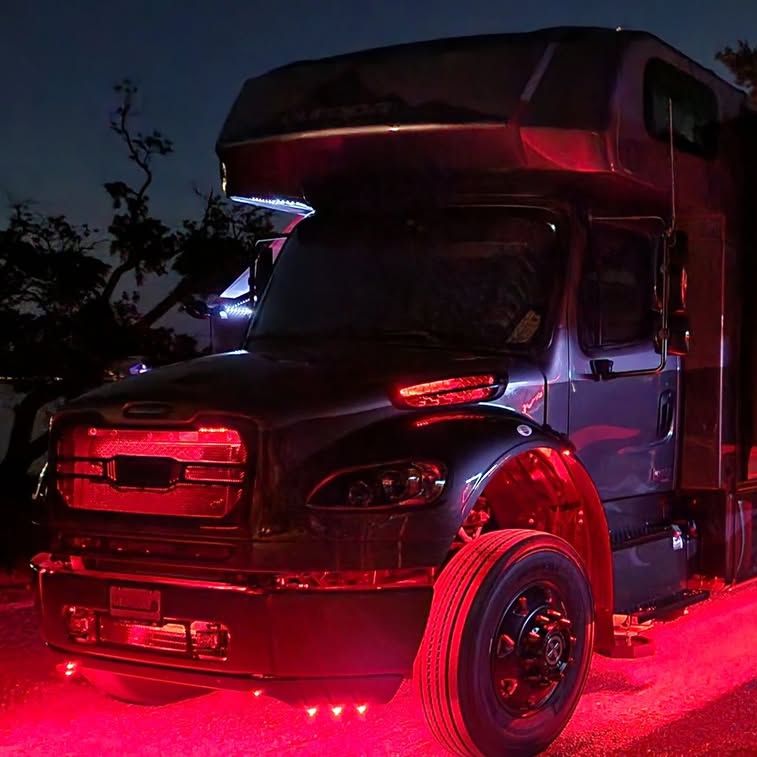

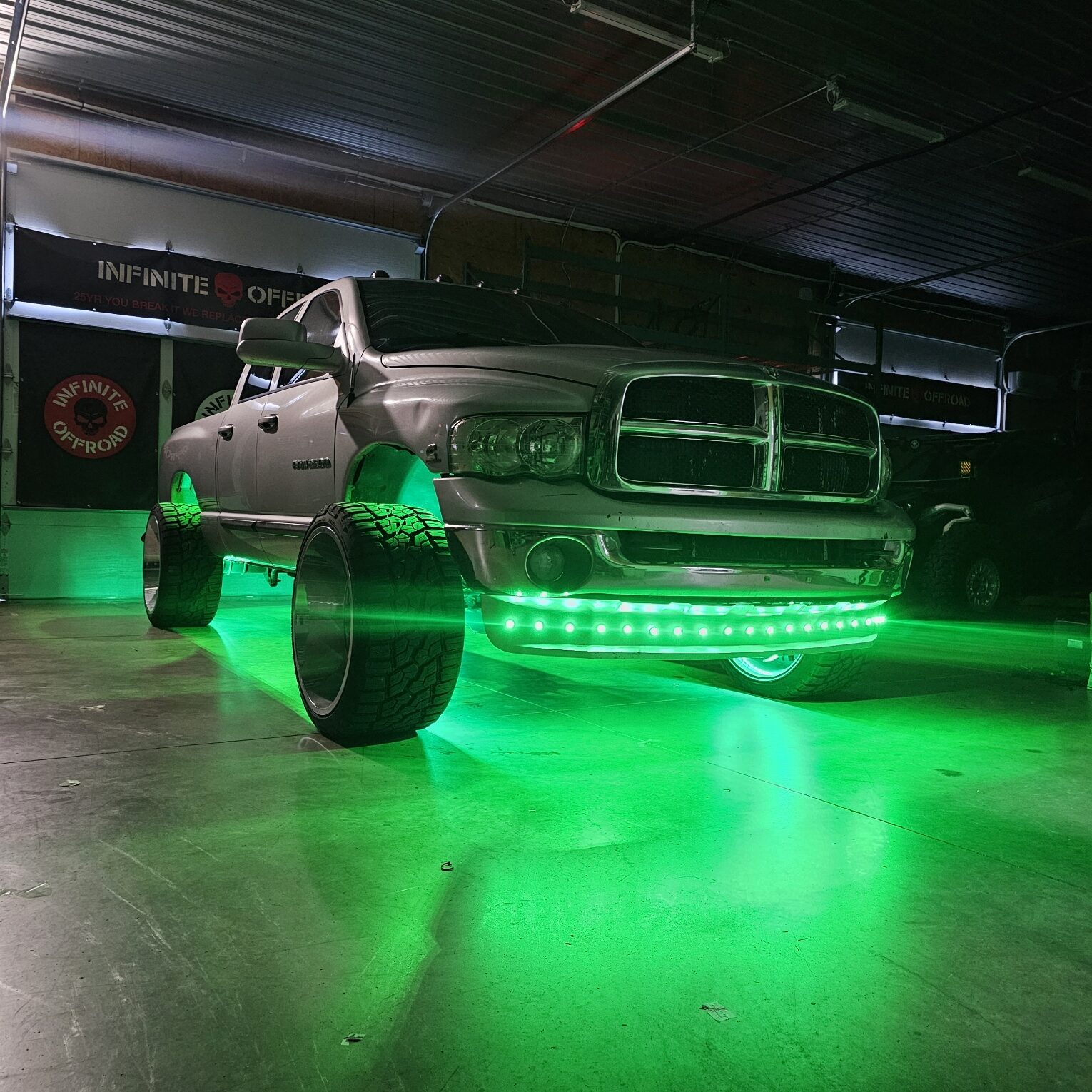

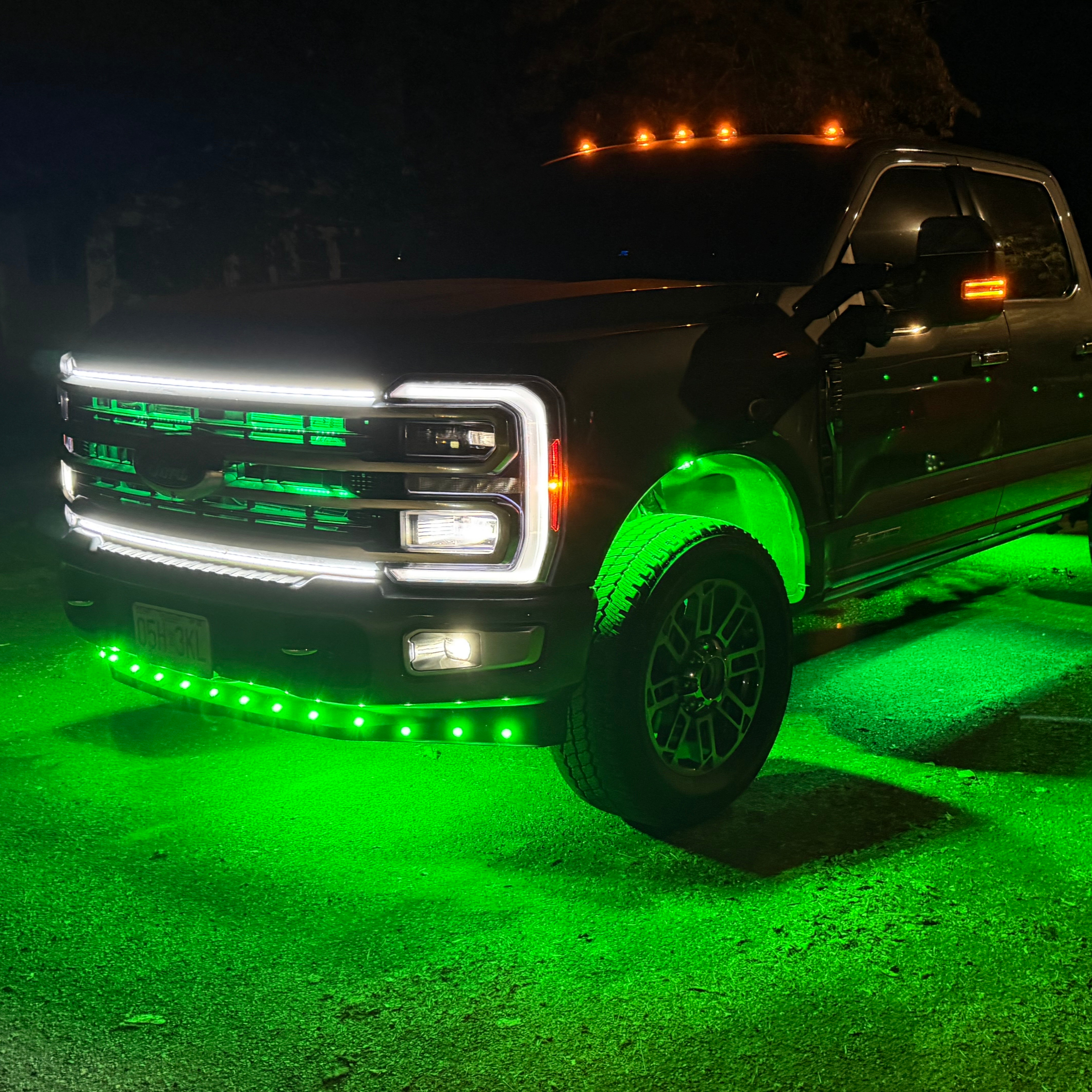

Infinite Offroad RGB+W valance lights with modular plug-and-play wiring for compatible five-pin RGB+W systems. Select 5 lights over 20 inches, 10 over 45 inches, 15 over 70 inches, or 20 over 95 inches. Add a dedicated controller or connect to an existing compatible system.

Installation

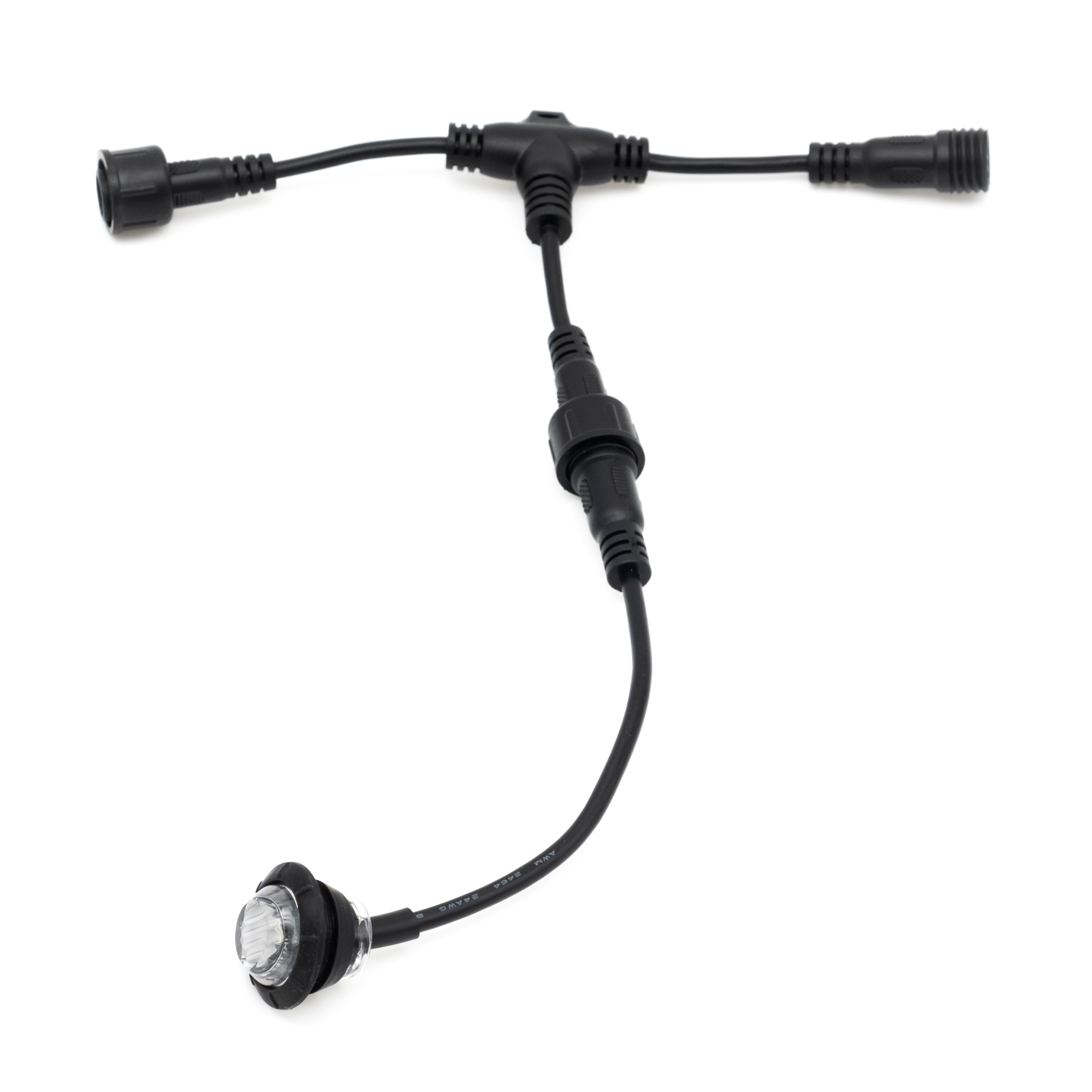

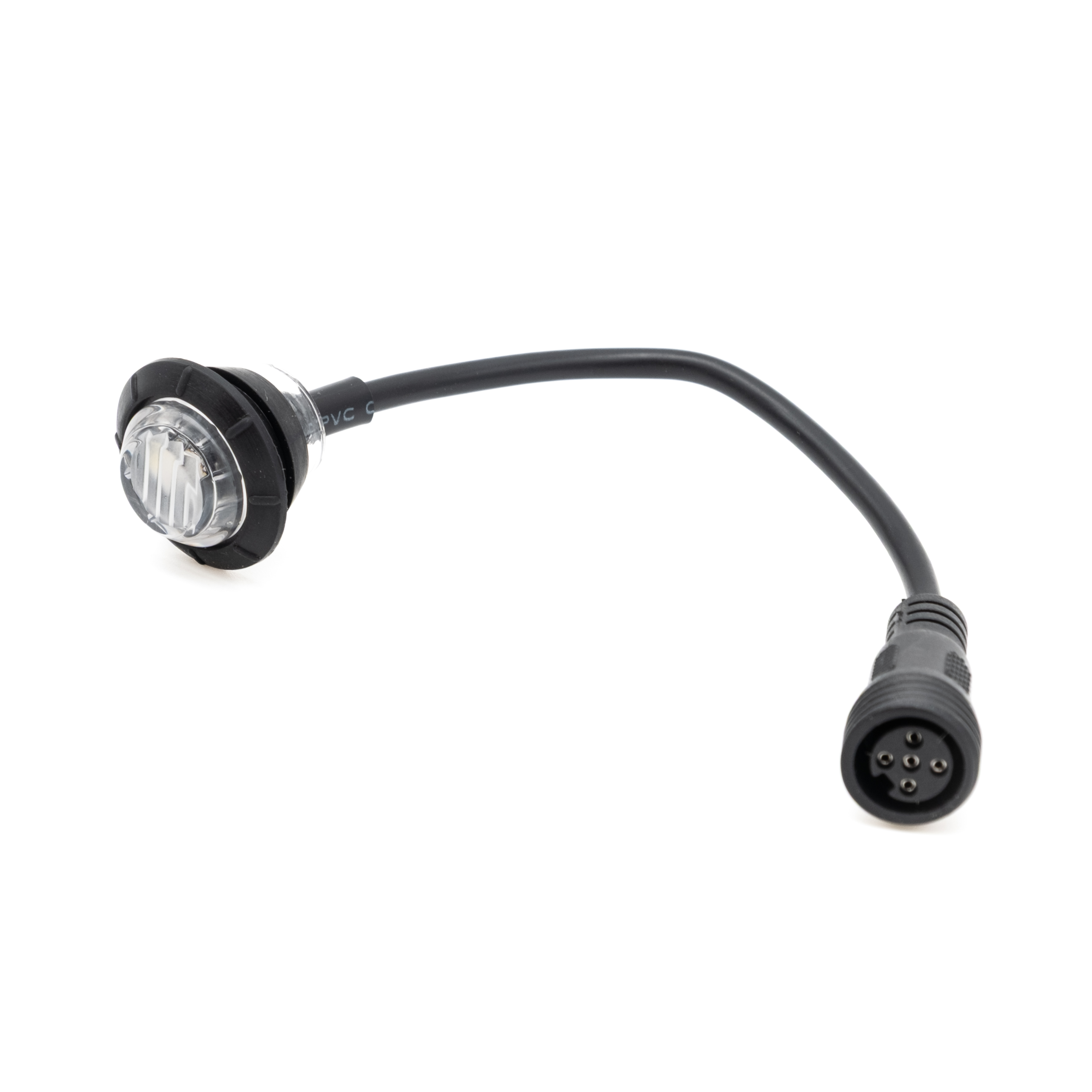

Drill an 11/16-inch hole in a suitable mounting surface. Slide out the light, fit the rubber grommet into the hole, then slide the light into the grommet for a pressure fit. Check panel thickness, clearances and wiring access before drilling. Universal fit requires appropriate mounting space and electrical compatibility.

Five-pin RGB+W supports compatible RGB+W strips and pods. Four-pin RGB is a different connection system and must not be treated as directly interchangeable. The supplier lists IP68 waterproofing, modular plug-and-play wiring and a 25-year replacement warranty including accidental damage, subject to manufacturer terms. Individual add-on valance lights are sold separately.

Controller options and compatibility

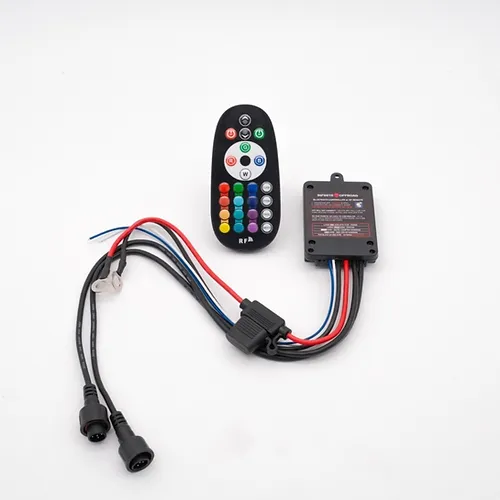

NO (I HAVE ONE): connect to an existing compatible Infinite Offroad 5-pin RGB+W rock-light system and operate together. Required connection wiring is included. YES: includes a dedicated Bluetooth and RF controller for independent operation. A rock-light kit is not included. Select the dedicated controller if you do not already have a compatible system.

The dedicated controller supports the BLEDIM phone app and a paired RF backup remote, which does not require line of sight. Connect within the app, not the phone Bluetooth settings. The controller retains its last setting after a power cycle. To pair or lock the remote, hold its green power button, remove the controller fuse for five seconds, reinstall it, then continue holding the button for three seconds.

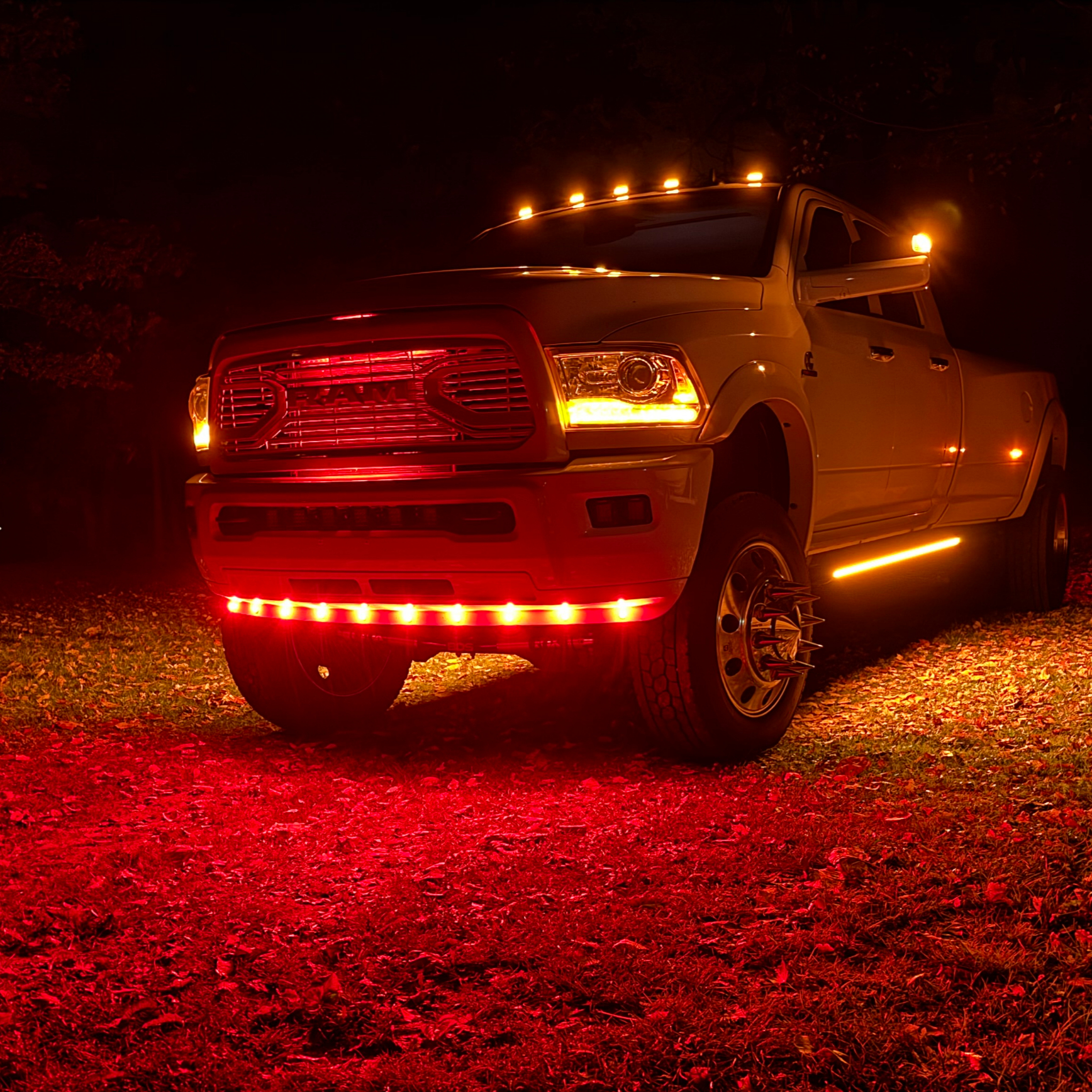

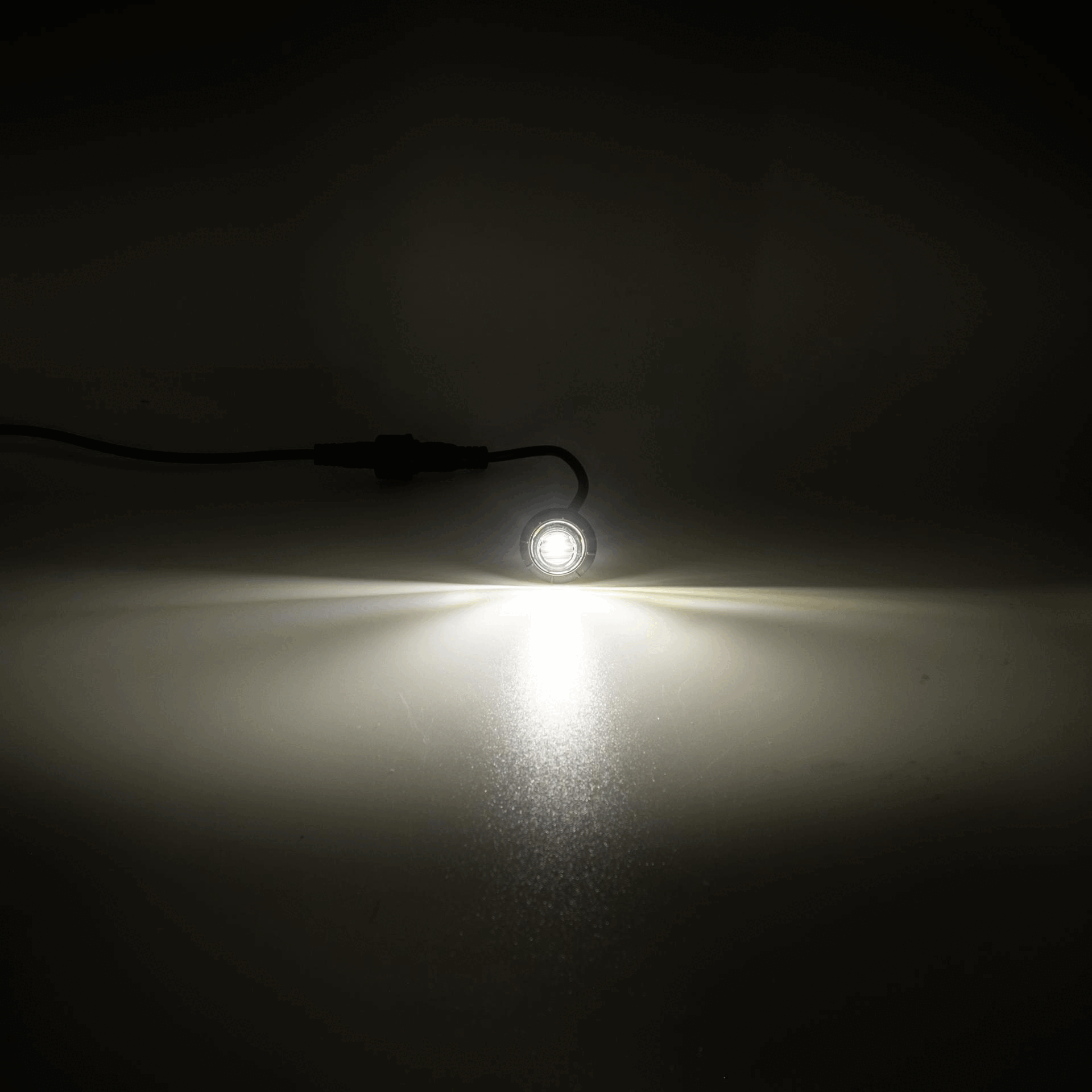

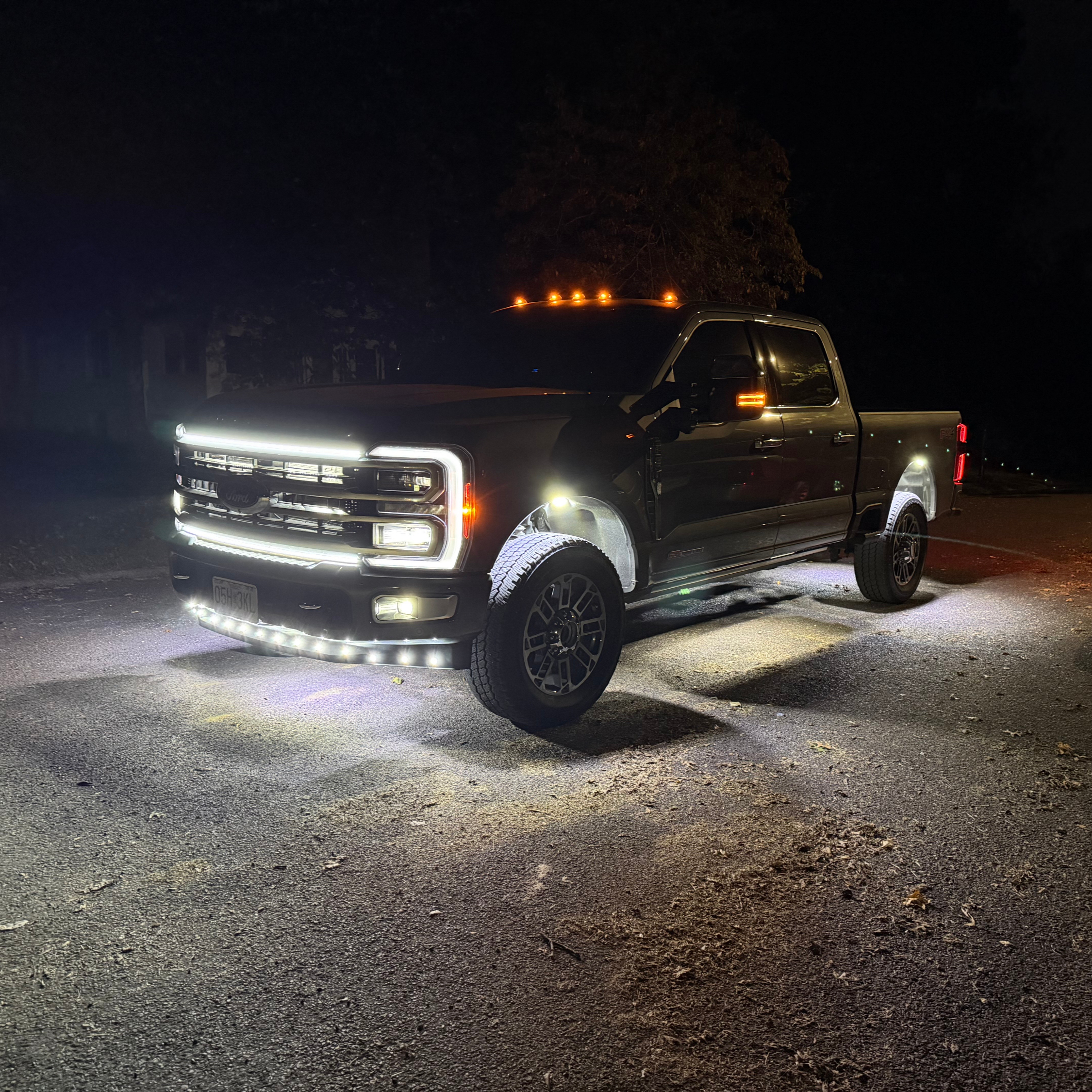

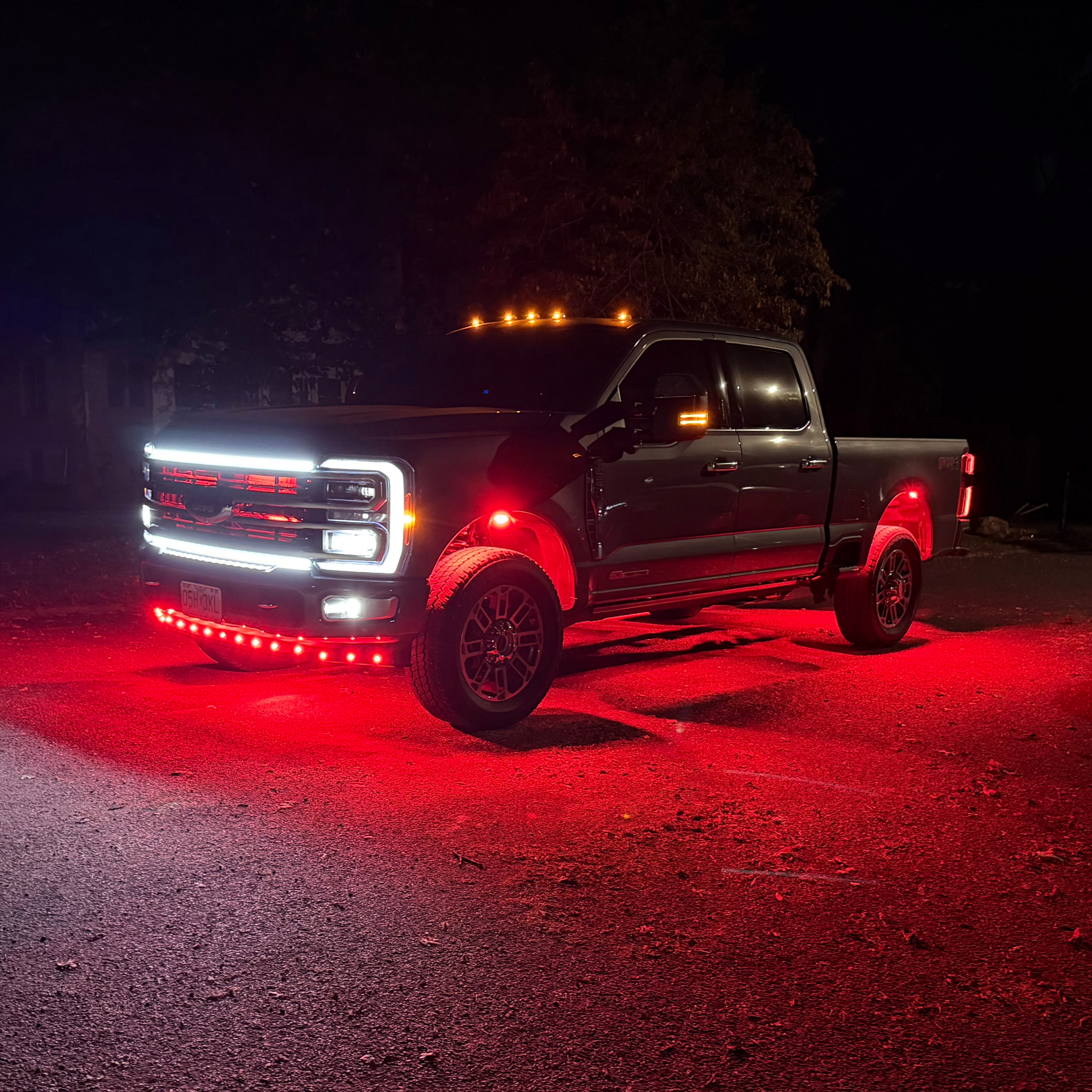

The blue override wire may connect to brake power to turn the lights red, including when they are off. The supplier suggests a separate switch to enable that override only when wanted. The white override wire can connect to a switch or courtesy-light circuit to turn the lights white. Follow the wiring guide before connecting override circuits.

Compatible RGB+W extensions, pods, strips, dome lights, whips and accent lights are sold separately. Manufacturer 25-year replacement warranty, including accidental damage, subject to manufacturer terms.

Download the RGB+W controller instructions and wiring diagram (PDF)
