RIGID Reflect LED Side Mirrors – 64011

Description

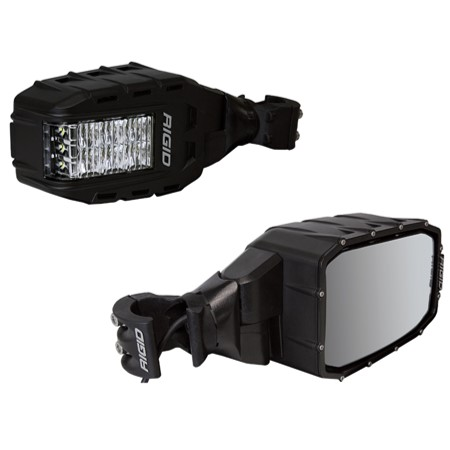

RIGID Reflect 64011 integrates a convex side mirror with LED illumination for off-road use. Side-shooter optics and a lenticular lens widen the beam for cornering, while separate amber LEDs can serve as running lights, flashers or turn signals when appropriately wired.

• Convex mirror for a wider rearward view.
• Mirror and light can be aimed independently.
• Breakaway joint helps reduce damage.
• Adjustable mounting clamps for 1.75-2.00-inch tubing included.
• Three-wire open leads for installation.
• Integrated amber LEDs for auxiliary running-light or turn-signal applications.
• Removable trim bezel can be painted to coordinate with the vehicle.

Lighting specifications

• Current draw: 2.3 amps.
• LEDs: 9 projection LEDs plus 2 turn-signal LEDs.
• Raw output: 3775 lumens.
• Illuminance at 10 metres: 43 lux.
• Beam distance: 66 metres.
• Peak beam intensity: 4300 candela.

Fitment: Universal roll-cage tube mounting within the specified diameter range. Check mounting space and clearance; electrical installation may be required. Universal Fit categorization does not guarantee direct fit on every machine. RIGID manufacturer warranty terms apply.
