Single-Color Bluetooth & RF Controller Module – 2-Pin Dual Zone

Description

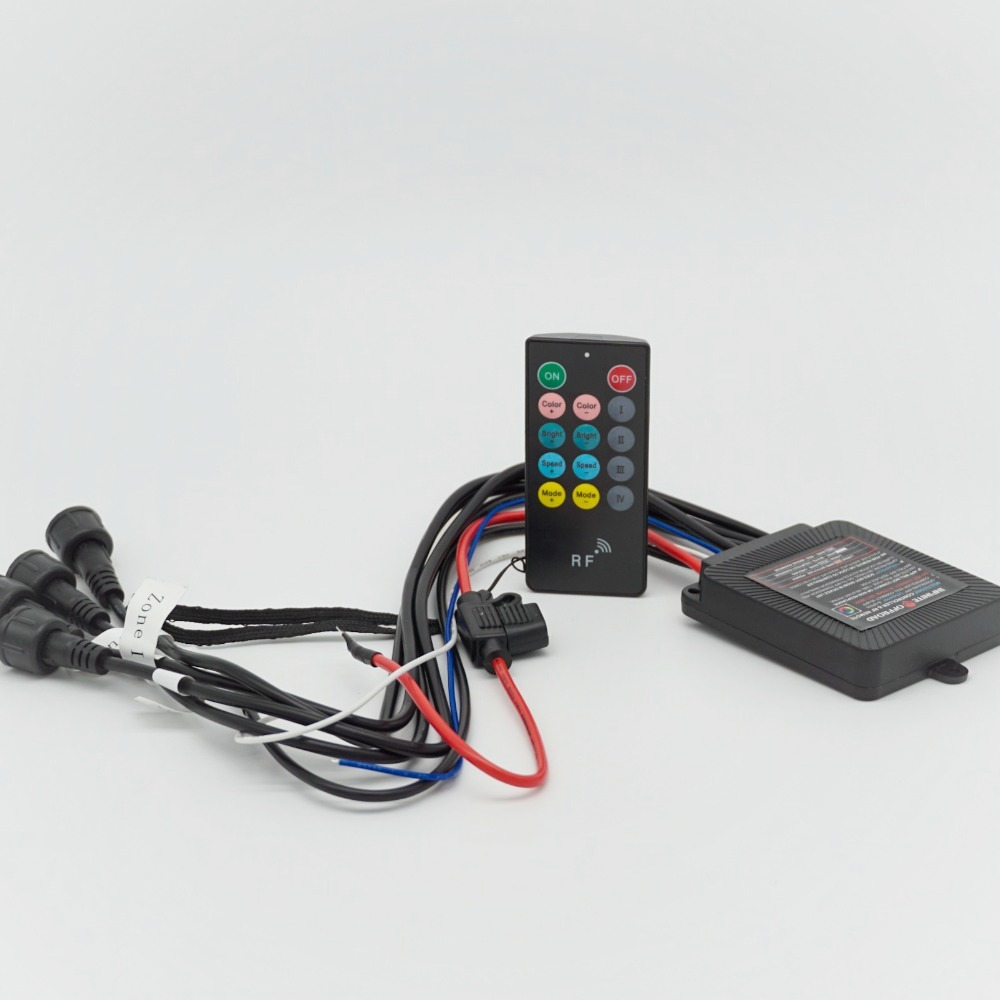

Infinite Offroad two-pin single-color Bluetooth and RF controller for compatible single-color 12W/24W rock lights and white wheel rings. Select the 30A or 50A dual-zone controller. It is not a five-pin RGB+W controller.

Control two zones independently or link them for synchronized operation with the phone app or backup handheld RF remote. The supplier specifies the LEDSHOW app for the 30A dual-zone controller. Use the controller-specific instructions for your selected version.

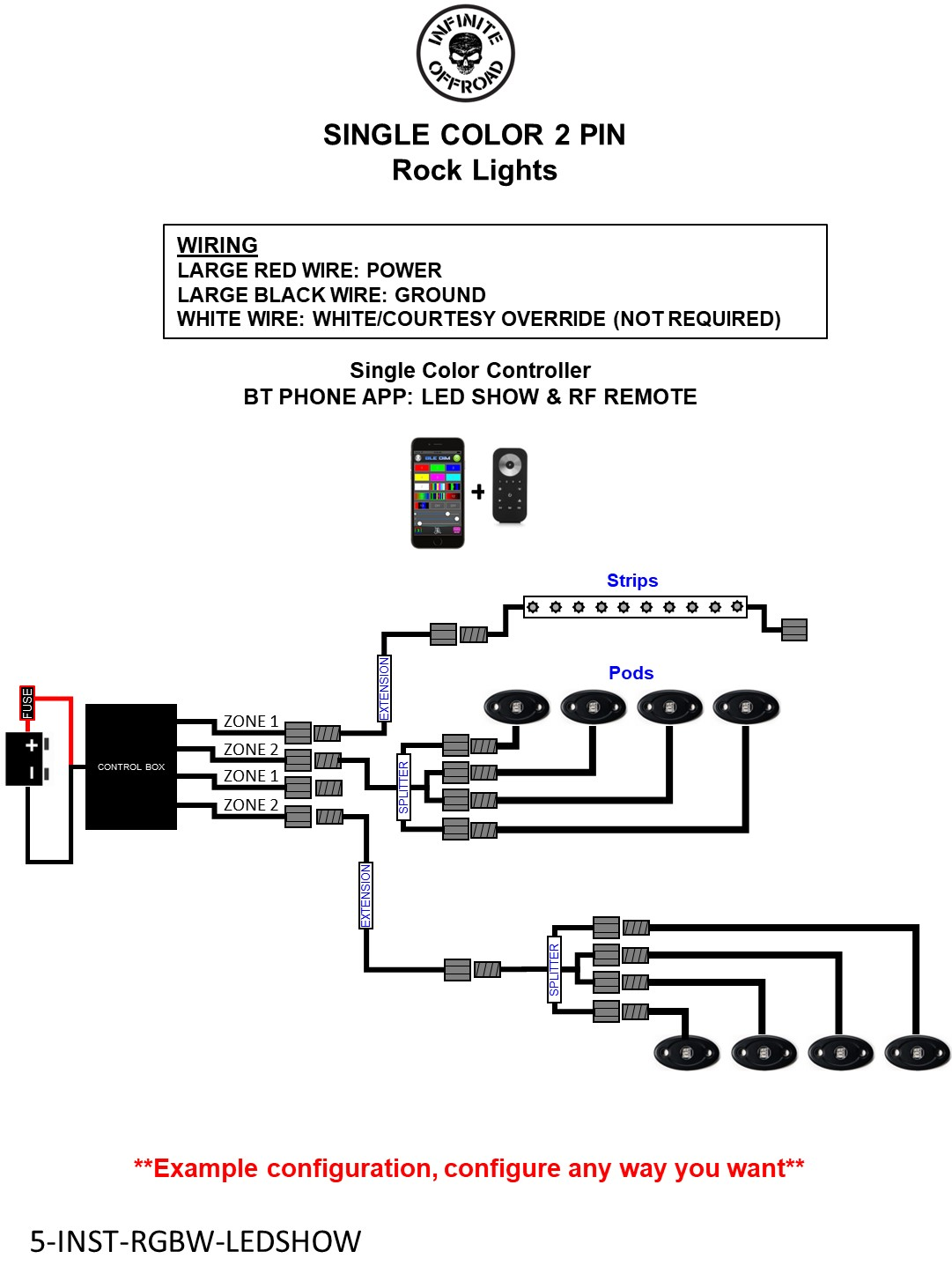

The controller has an override input for a suitable switched signal such as brake, dome or courtesy lighting. Follow its wiring diagram and circuit/current limits before connecting. Balance loads across zones. The source gives conflicting total-capacity and zone-count examples; do not size a circuit from those examples. Confirm the controller’s rated per-zone capacity before adding lights.

Plug-and-play modular wiring and waterproof connections allow compatible lights to be added. The supplier lists IP68 waterproofing. Manufacturer 25-year replacement warranty, including accidental damage, subject to manufacturer terms.

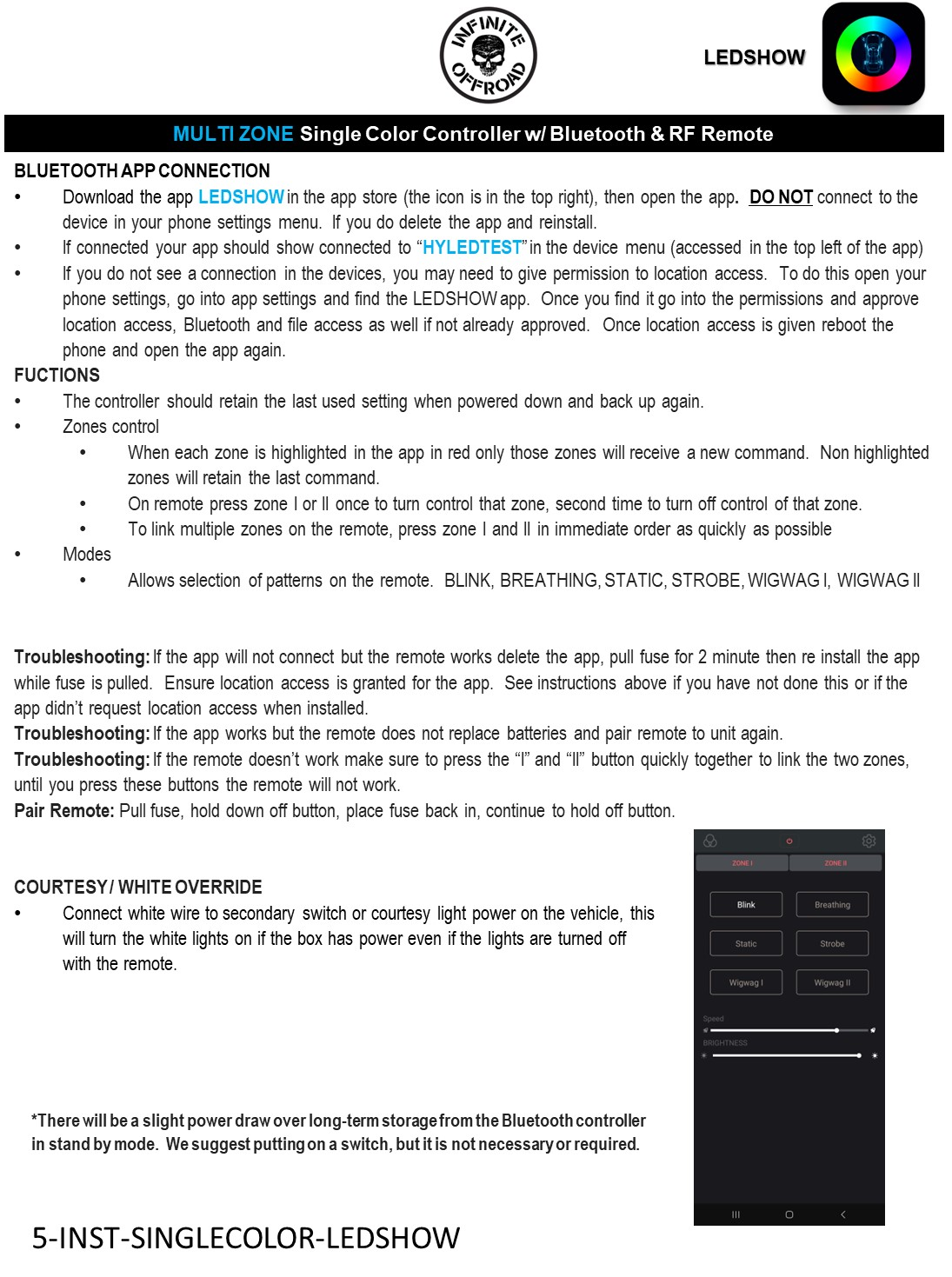

Download the single-color controller instructions and wiring diagram (PDF)
