Truck / Jeep RGB+W Rock Light and Quad-Row Wheel Ring Bundle

Description

Infinite Offroad modular RGB+W rock-light and wheel-ring bundle for truck/Jeep applications. Includes the selected Bluetooth/RF controller and remote, short-lead rock-light pods, required splitters, 5-foot and 10-foot extensions, two 12-inch RGB+W strips and the selected quad-row wheel-ring kit. Plug-and-play screw connectors allow compatible RGB+W accessories to be added later. Magnetic mounts, no-mess wiring and switched battery wiring kits are separate accessories.

Controller choices

• STANDARD: one zone.
• 4 ZONE: four independently controlled or synchronized zones.
• 2 ZONE TURN: two independent or synchronized zones, with turn-signal activation. Turn triggers require constant 12V, not intermittent power. The triggered side flashes amber while the opposite zone turns white.

Bluetooth app and paired backup RF remote do not require line-of-sight remote operation. Blue override wire can force red from brake power, and white override can force white from courtesy/switch power, even when the lights are off. A separate switch is recommended where selective brake override is desired. Follow the controller wiring guide.

Rock lights

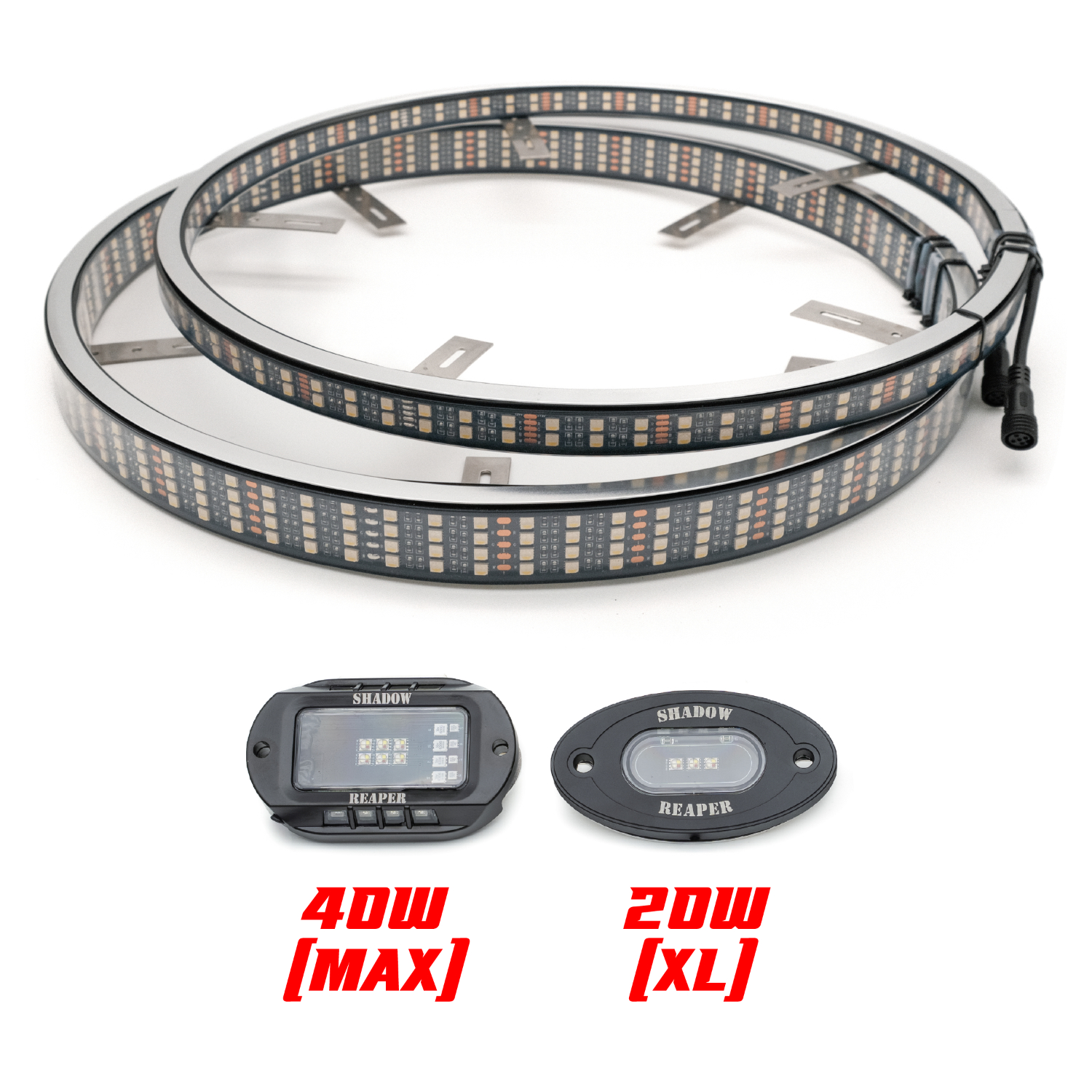

Choose 4, 8, 12, 16 or 20 pods in 20W X-large or Gen-2 40W MAX. Dedicated white emitters provide true white alongside RGB. IP68 lights, sealed controller, side-wire pods, optical blending and watertight screw connections form a modular system. The kit description specifies short-lead pods and extensions; generic supplier specification text also mentions 12-foot leads, so confirm any special lead requirement before ordering.

Wheel-ring fitment

General supplier guidance: 16/17-inch rings for 20-inch and larger wheels; 18-inch rings for 22-inch and larger wheels; 20-inch rings for 24-inch and larger wheels. These are not fitment guarantees. Measure the wheel, rotor, caliper and dust shield before ordering. Large rings can exceed mounting-tab reach; larger is not automatically better. This truck/Jeep wheel-ring bundle is not assigned universal UTV fitment.

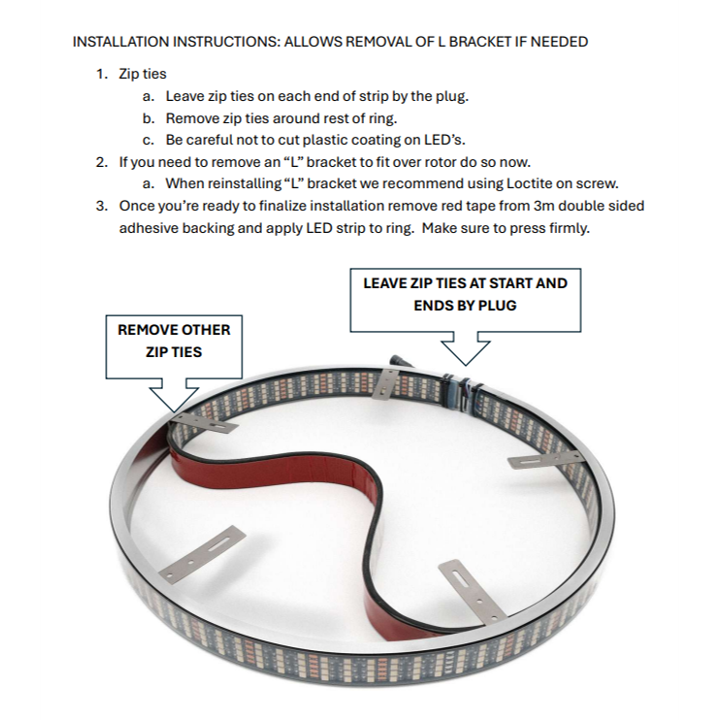

Nominal / inner / outer ring diameter: 16 / 15.25 / 16.25 inches; 17 / 16.5 / 17.5 inches; 18 / 17.5 / 18.5 inches; 20 / 19.25 / 20.25 inches. Test-fit before installation and check clearance around moving parts before driving. Installation bolts or self-taps brackets to the dust shield or suitable mounting points. Bracket modification may be required; modified rings cannot be returned.

RGB+W controller instructions and wiring guide (PDF)

Manufacturer 25-year replacement warranty, including accidental damage, subject to manufacturer terms.
