V-ULTRA 3″ 108W White or Amber Pods with Amber DRL

Description

White main-light option

Features:

Side Shooter Design: Designed with dual side lights to work together with front spot light. Light coverage to clear darkness and potential hazard, increasing your driving safety.

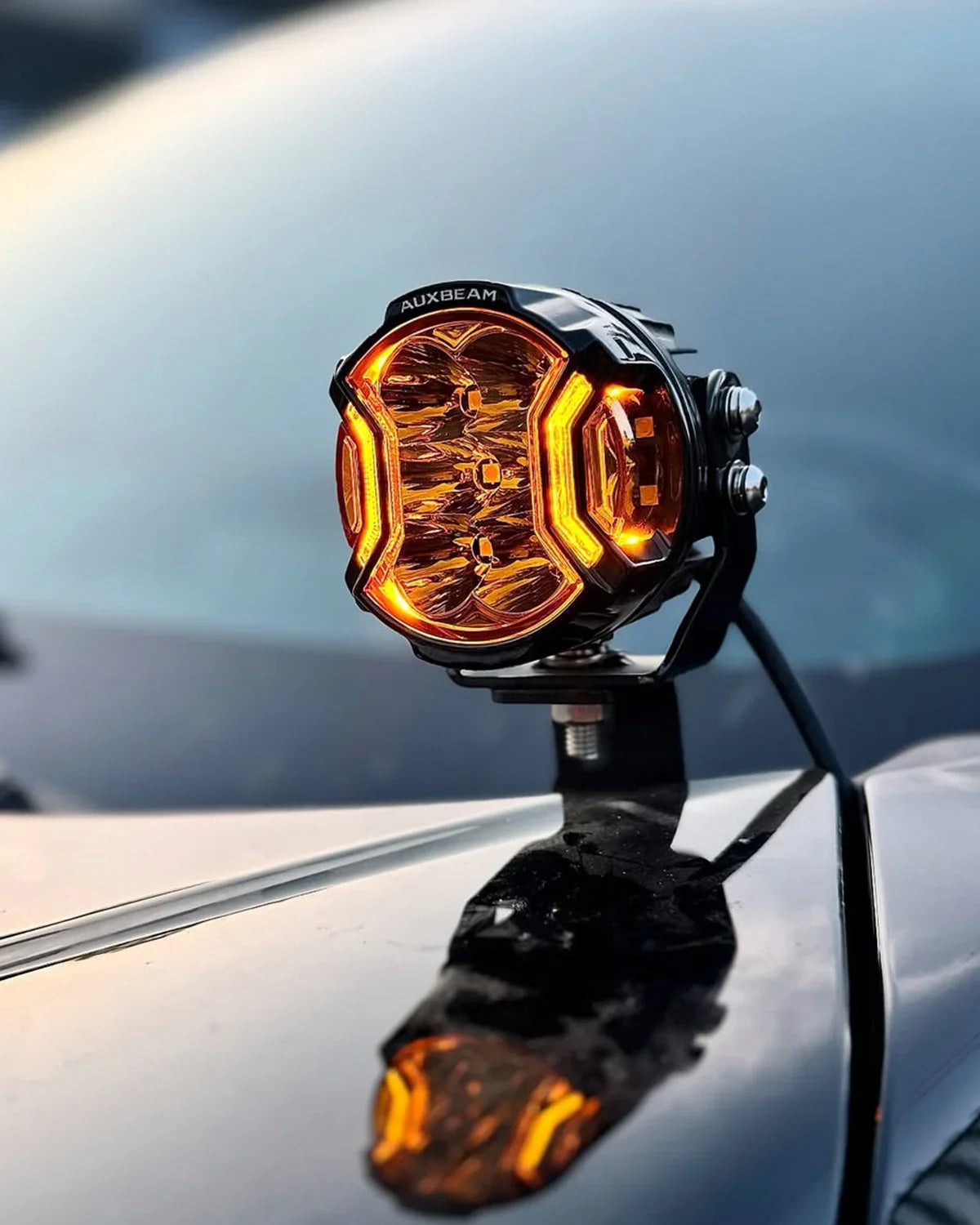

Amber DRL Light Feature: Our DRL design is truly one-of-a-kind. We’ve added an amber DRL light function that works in tandem with our ultra-bright white light. Not only alerts other drivers in foggy or rainy conditions, but also complements other weak headlights on your vehicle. This feature also adds a touch of fashion style and elevates its overall appearance.

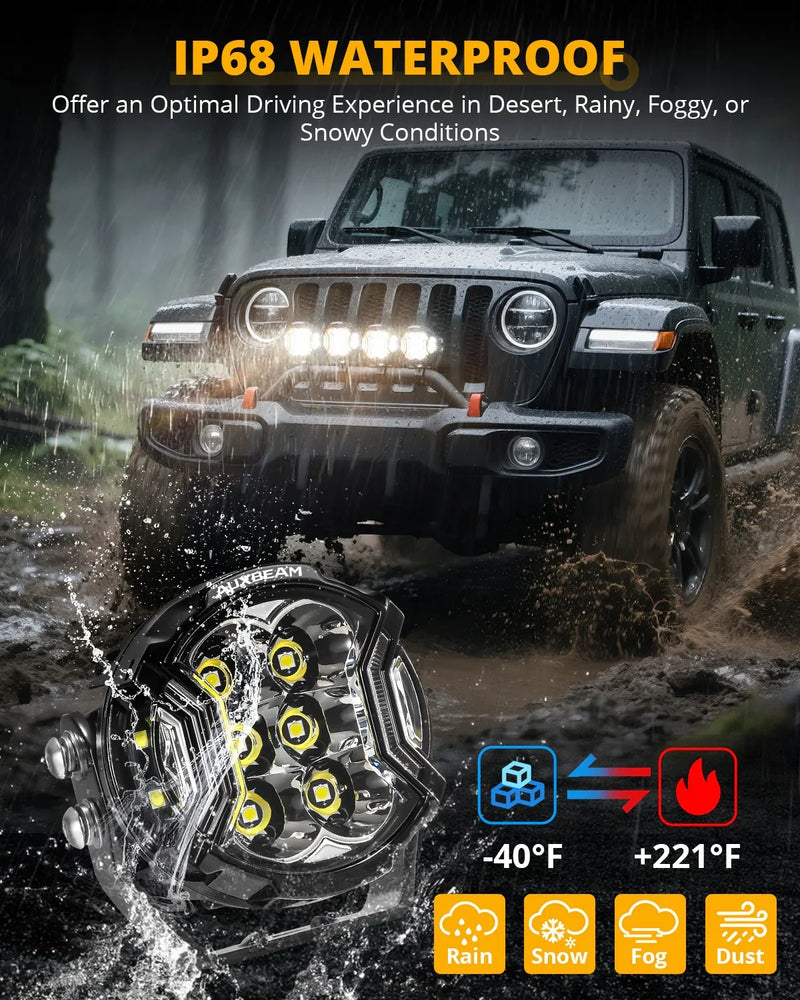

IP68 Waterproof Design: Our newest LED work light has IP68 waterproof rate, protective housing, and sturdy brackets. This ensures that rain, fog, moisture, or dust won’t penetrate the bar and cause damage. With exceptional waterproof, dustproof, and shockproof performance, you can trust that our led driving light will withstand even the toughest conditions.
Easy to Installation: We understand that the installation process can be a hassle, which is why we’ve made it easy for you. Our LED lights come with installation instructions and a plug-and-play wiring harness kit, allowing you to replace your old dim filament lamps in just a few minutes. Say goodbye to the tedious installation process and hello to hassle-free lighting.

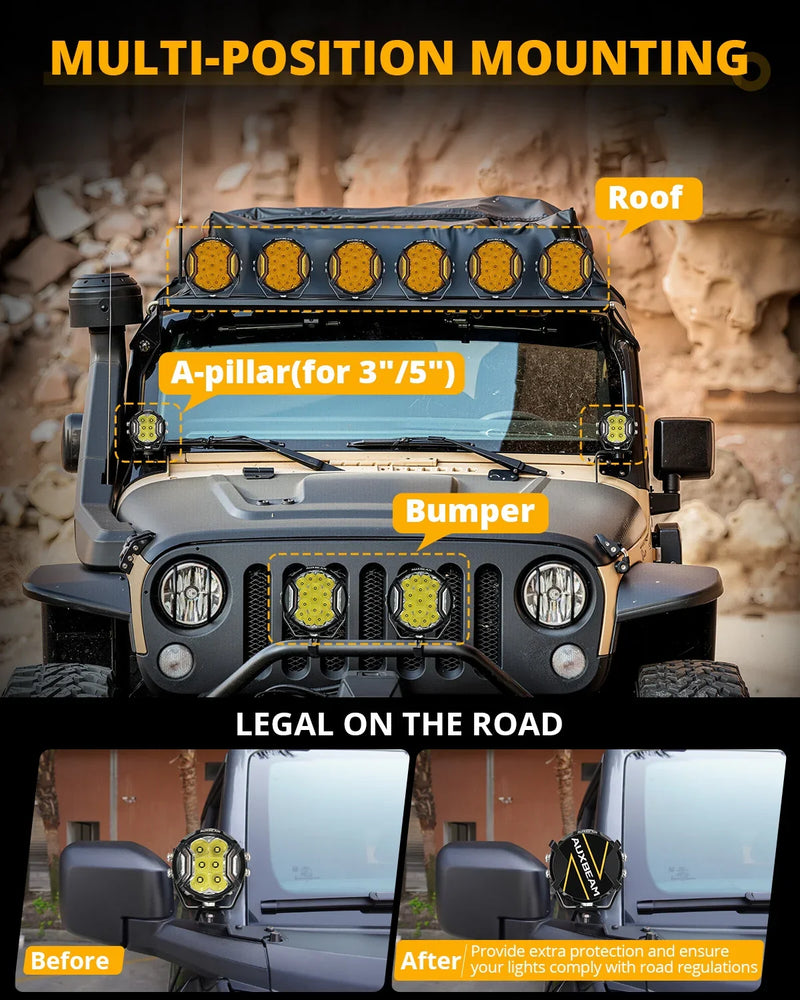

Wide Application: Our LED pod lights are incredibly versatile and can be mounted on a variety of surfaces, including the roof rack, bull bar, headache rack, and running bar. They’re suitable for use with almost all off-road vehicles, motorcycles, ATVs, UTVs, SUVs, construction vehicles, trucks, buses, pick-ups, marine vessels, boats, and more. With an operating voltage of 9-24V, our LED pod lights are a reliable and efficient lighting solution for all your needs.

Specification:

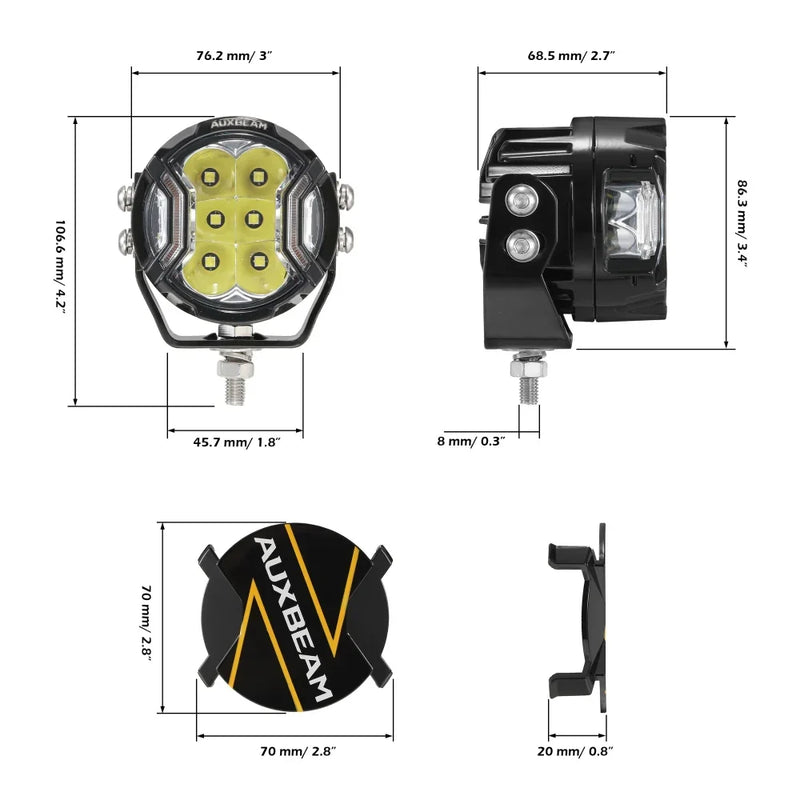

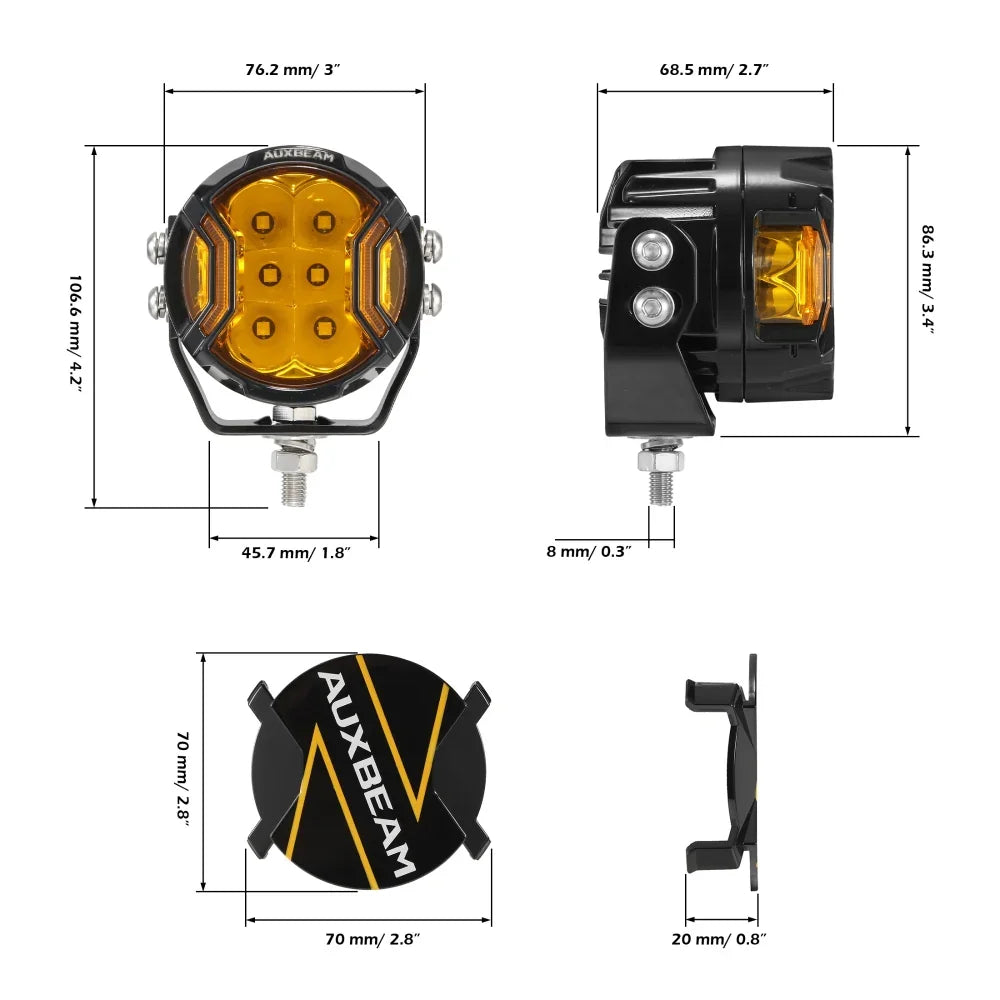

Size: 3 Inch
Quantity: 2Pcs
Power/Set: 108W |(Spotlights 50W+Amber DRL 4W)*2
Total Lumens: 12800LM |(6000LM+Amber DRL 400LM)*2

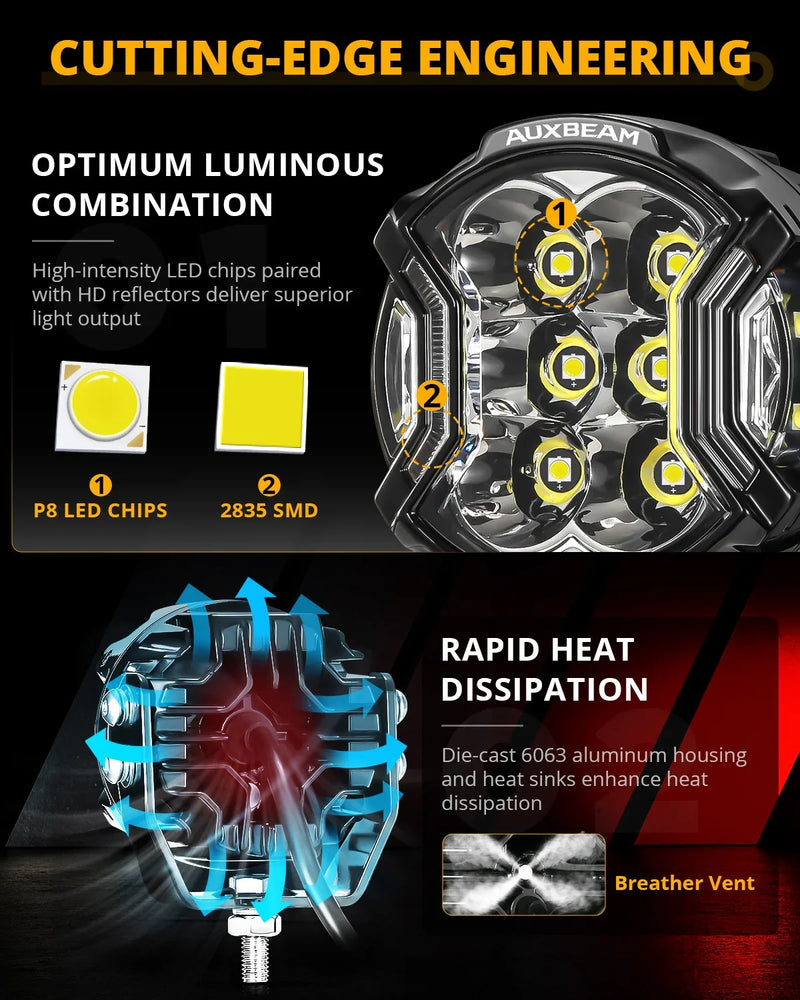

Lamp Beads Model(Each): P8 5W/PCS*10+2835 SMD 4W

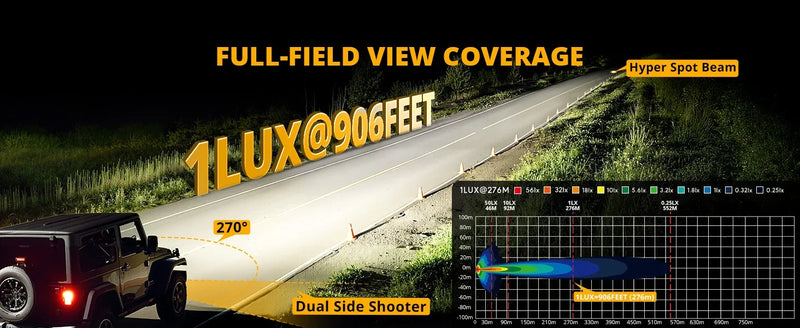

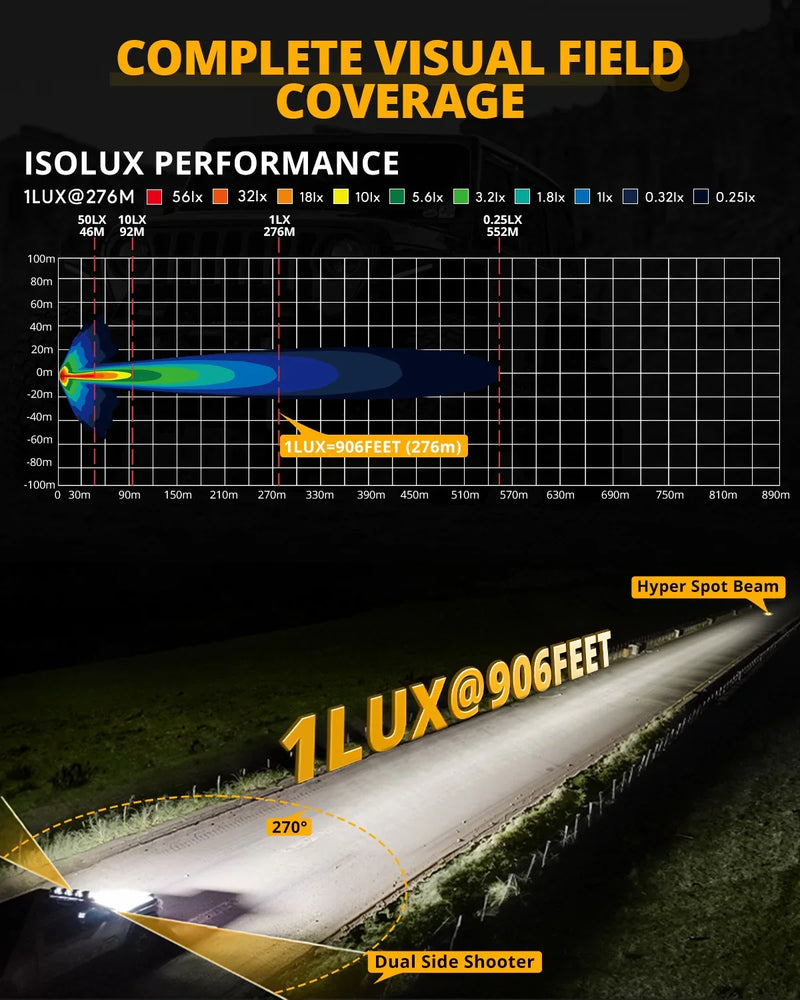

Lighting Distance: 1 LUX@276M
Beam Pattern: (Spot+Hyper)Beam+Double-Side Shooter Light
Light Color: White Main Light+Amber DRL
Color Temperature: 6500K
Life Time: 50000+ hours
Lens Material: PC
Housing Material: Aluminum Alloy
Housing Color: Black
Waterproof Rate: IP68
Working Voltage: 12V-24V(Wiring harness Relay is 12V Only，can be replaced with 24V)

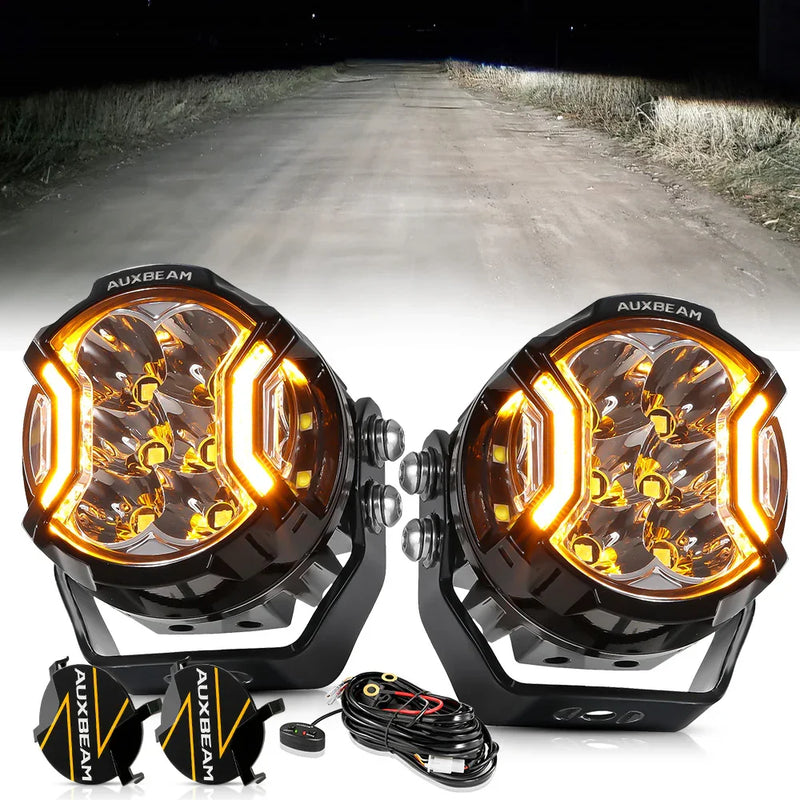

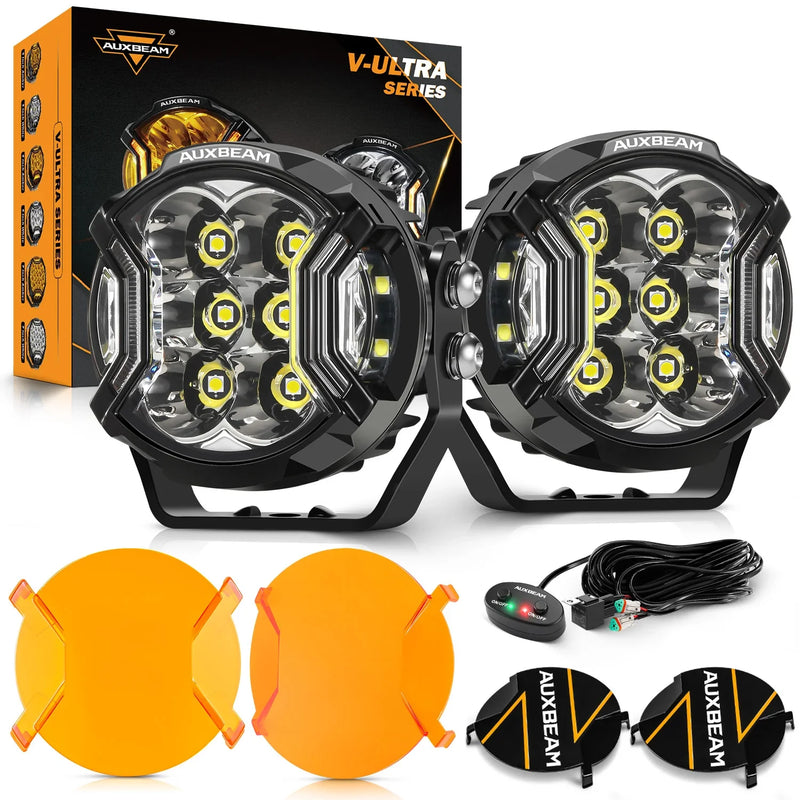

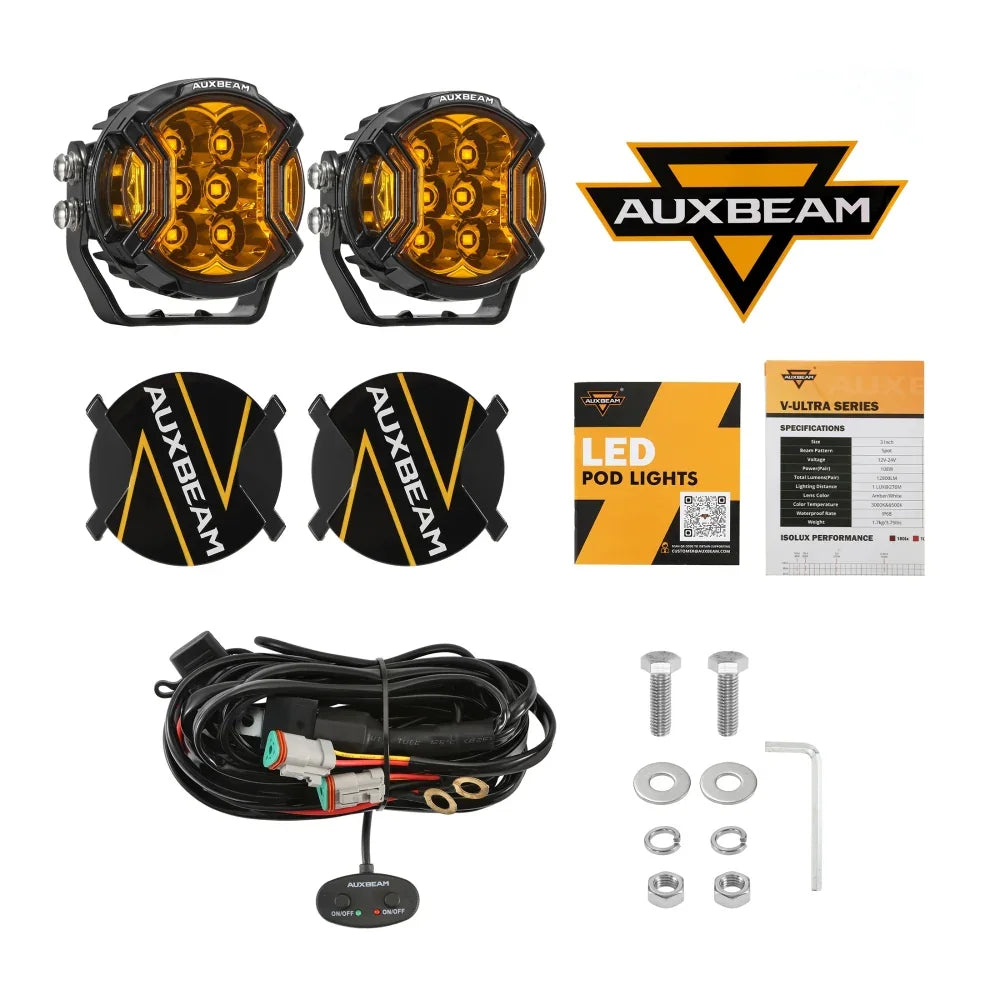

Packing Included:

2 X LED Driving Light（With DT Plug）

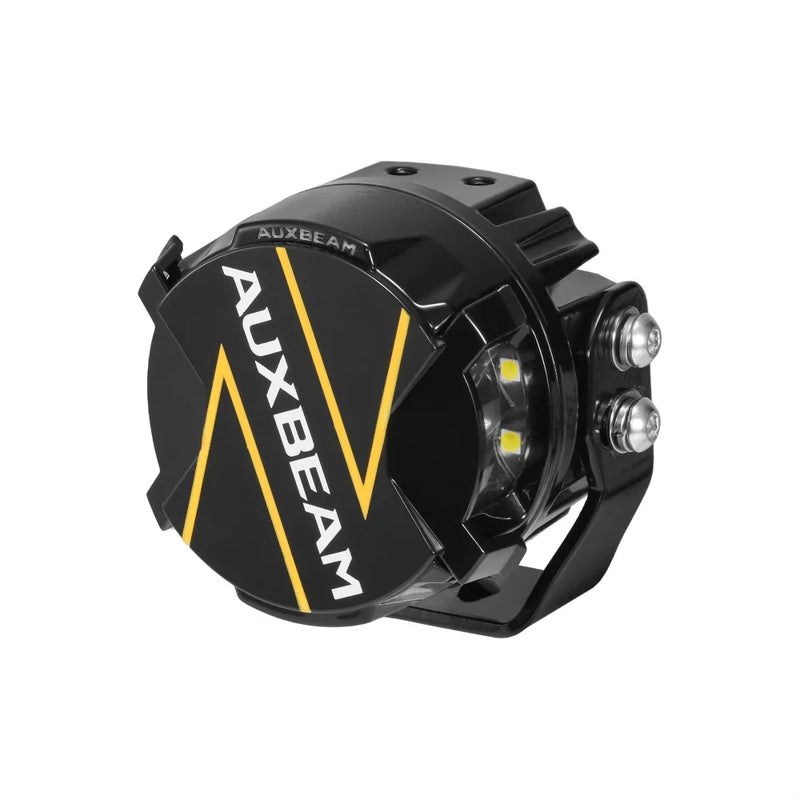

2 X Light Cover（Black）

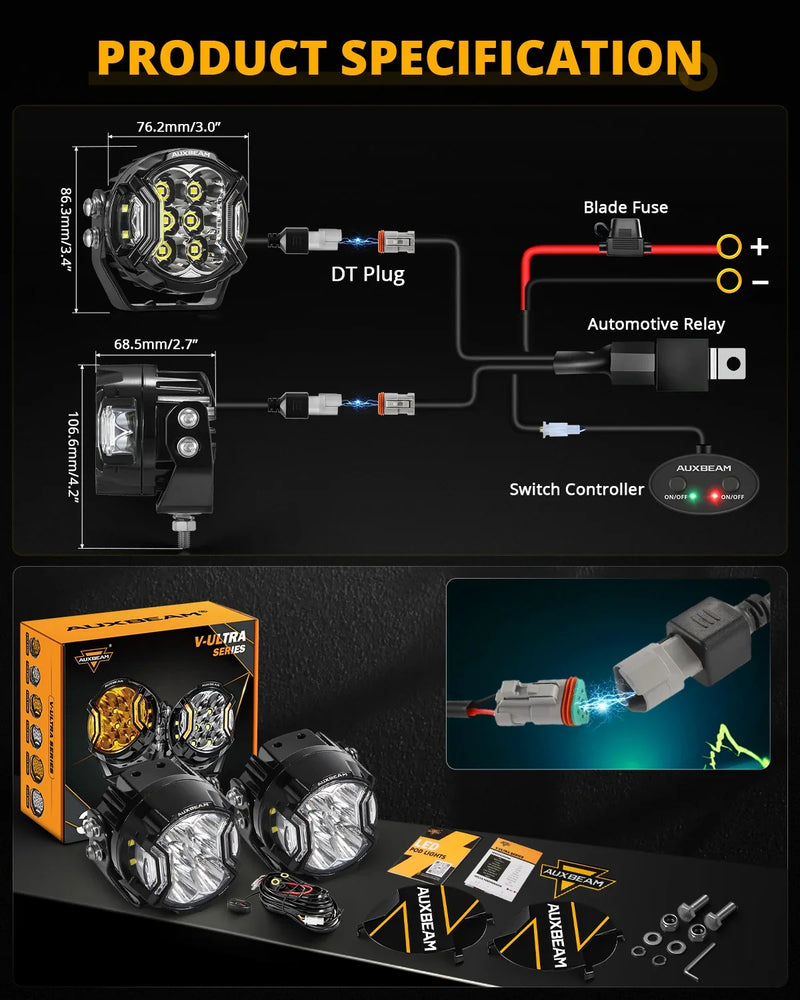

1 X Wiring Harness（With DT Plug）
1 X Srew Accessories

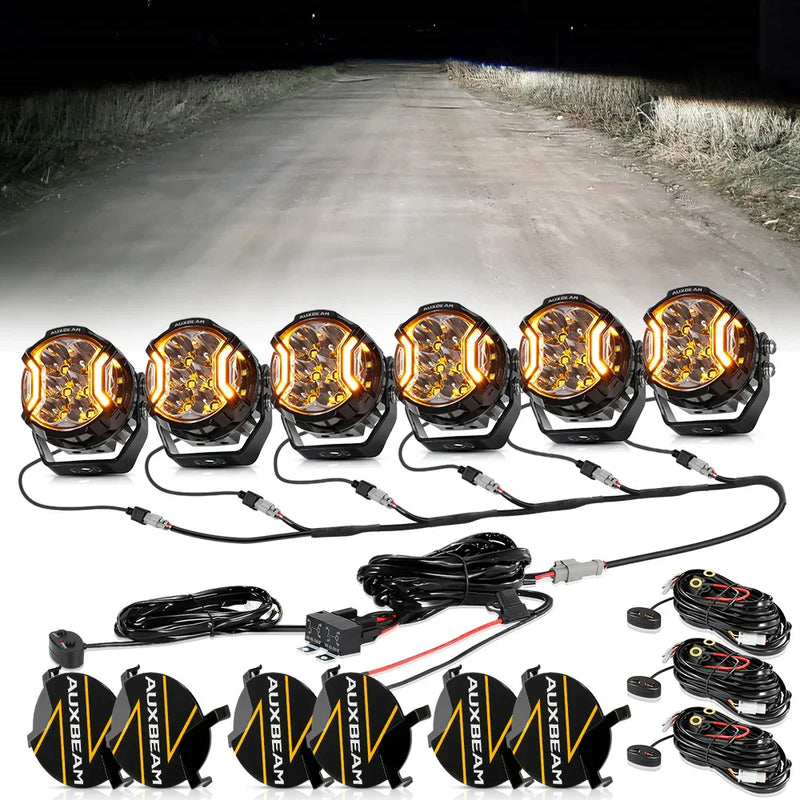

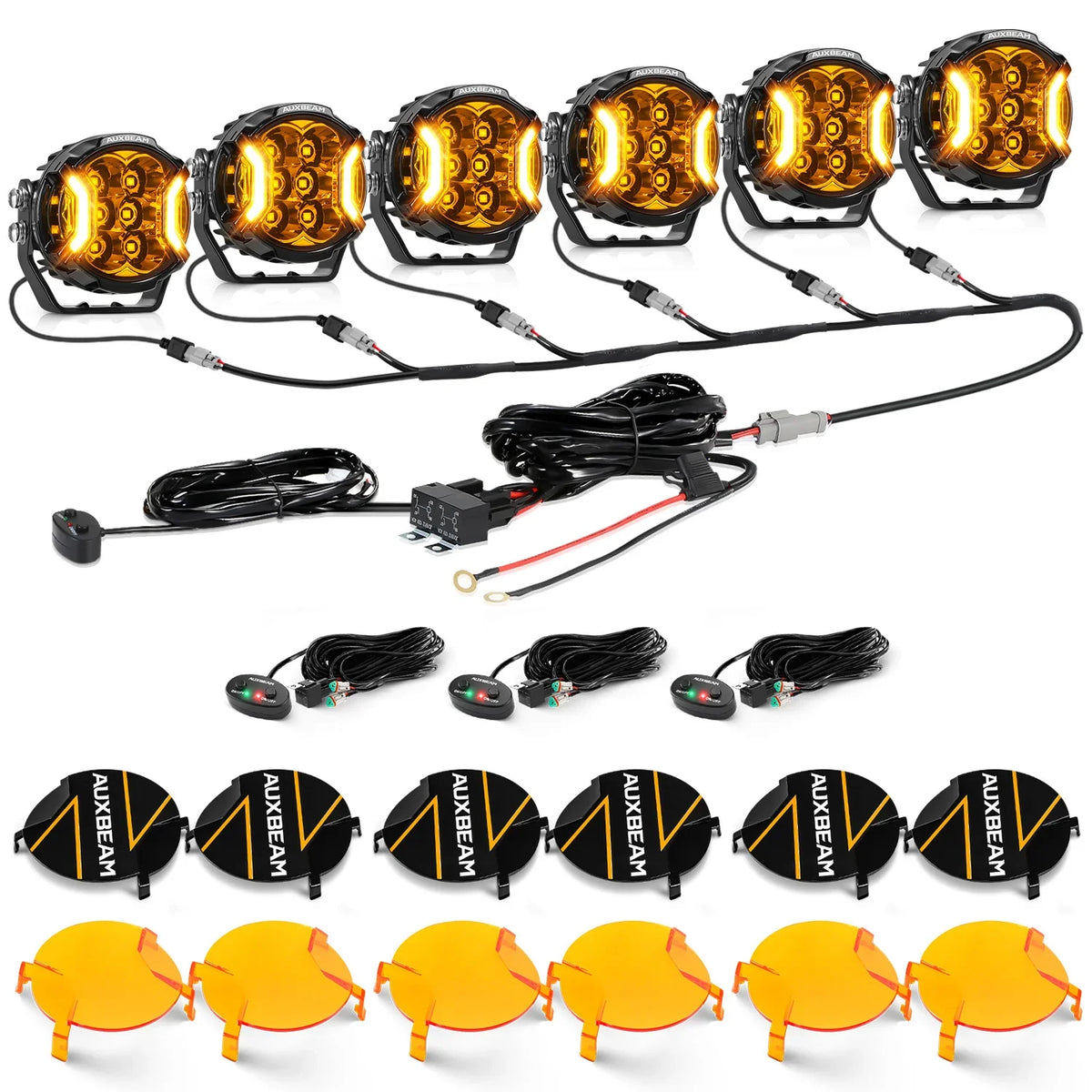

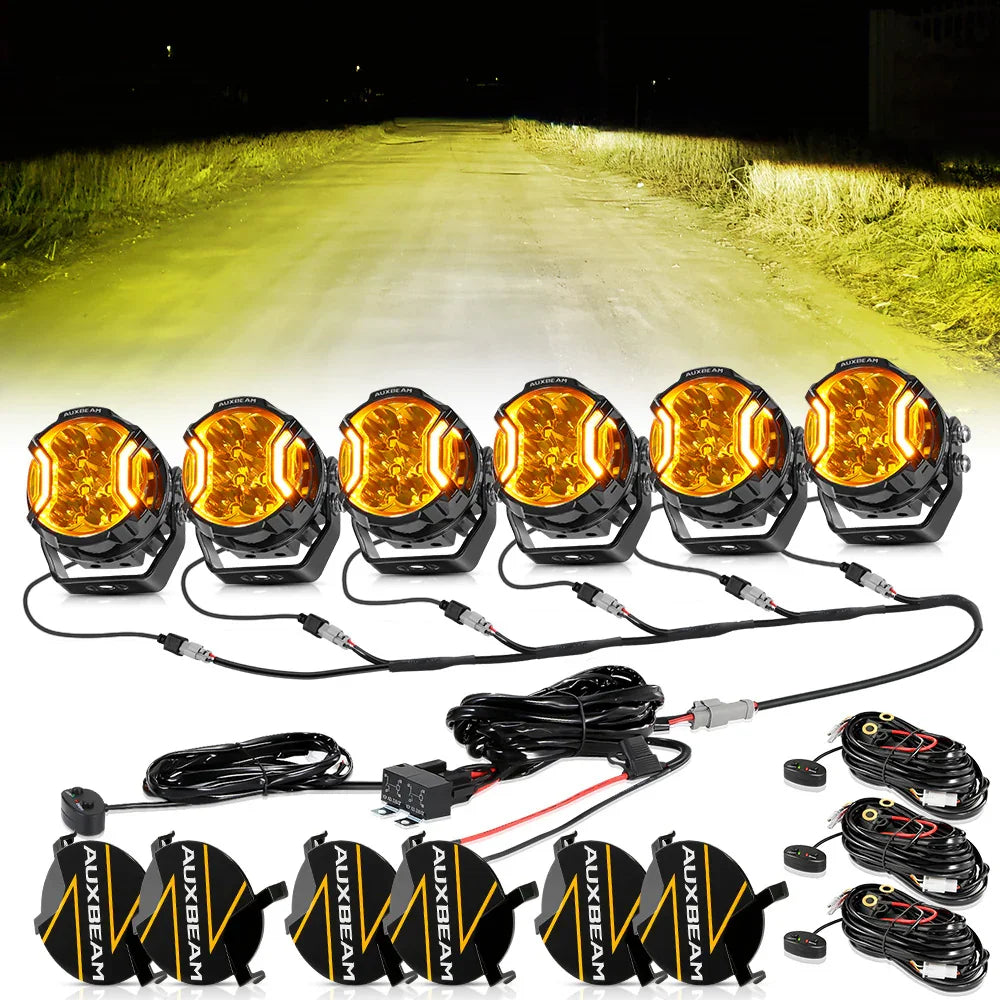

▶6-LED Pod Light Power Wiring Harness Kit

Recommend Fit for Our Pod Light SKU:

6-Pod Lights (A maximum of six pod lights can be installed):
XP-ULTRA Series: ZD000753/ZD000879/ZD000880/ZD000881
V-MAX Series: ZD000851/ZD000852/ZD000849/ZD000850
V-ULTRA Series: ZD000820/ZD000821/ZD000892/ZD000891
Other Product: ZD000752

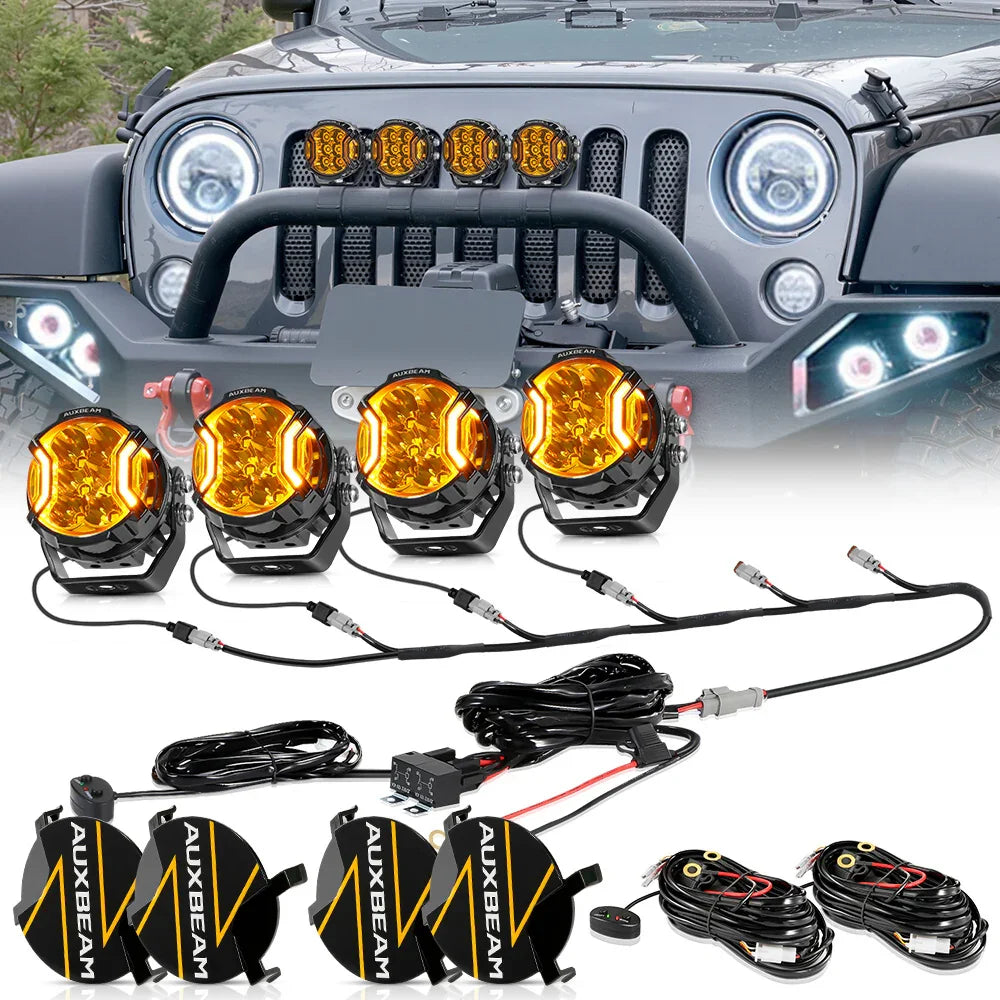

4-Pod Lights (A maximum of four pod lights can be installed):
V-MAX Series: ZD000869/ZD000870
V-ULTRA Series: ZD000889/ZD000890
Other Product: ZD000617/ZD000484/ZD000696/ZD000697

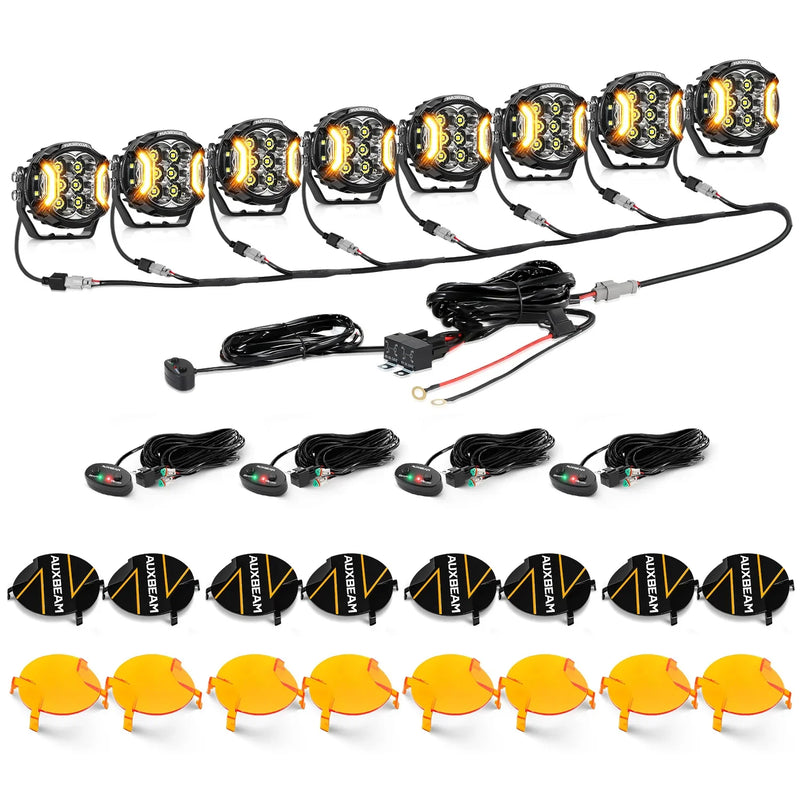

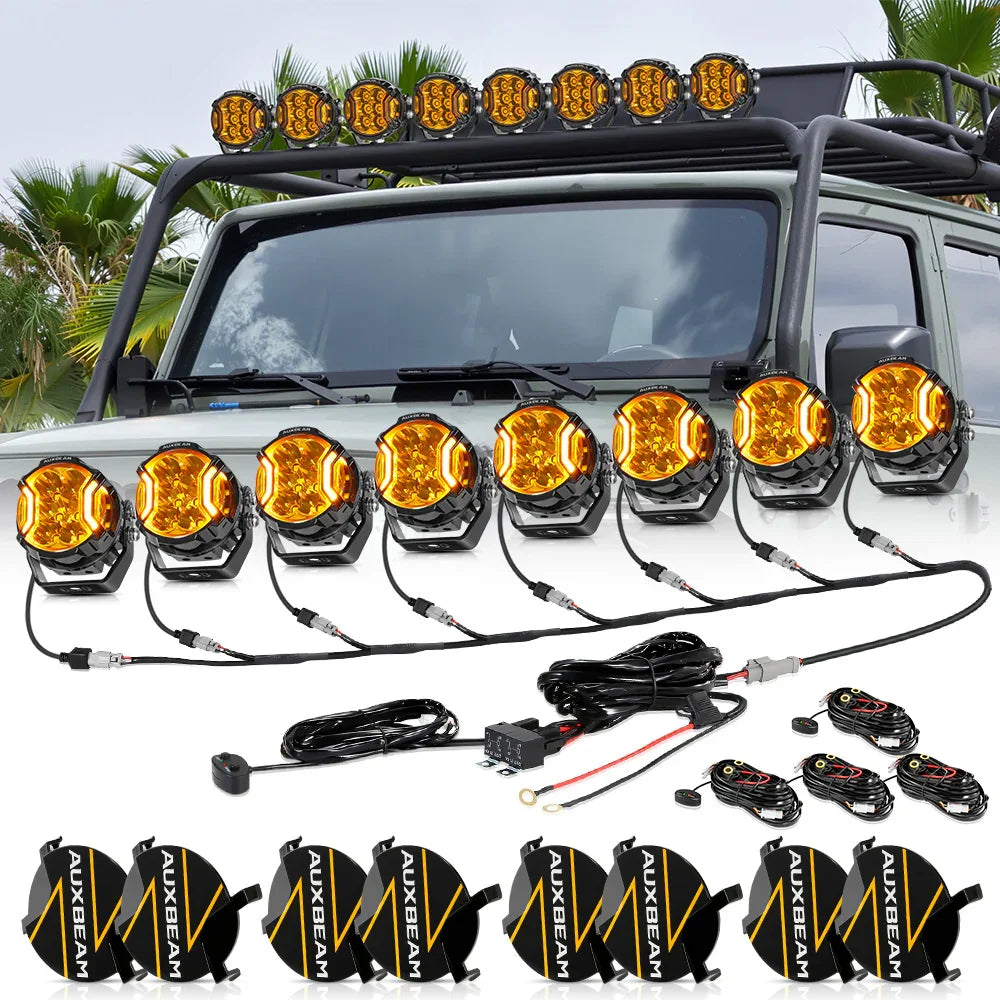

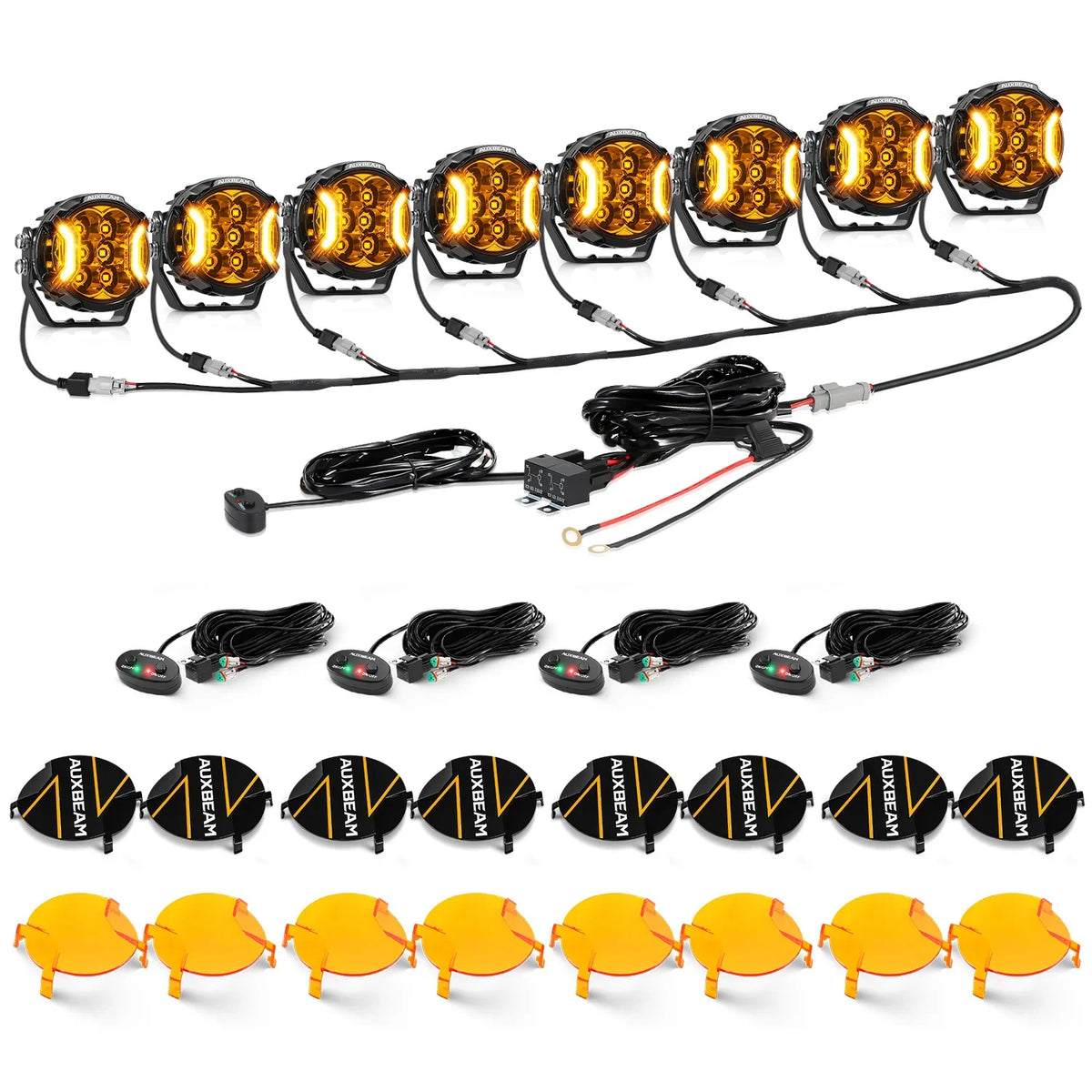

▶8-LED Pod Light Power Wiring Harness Kit

Recommend Fit for Our Pod Light SKU:

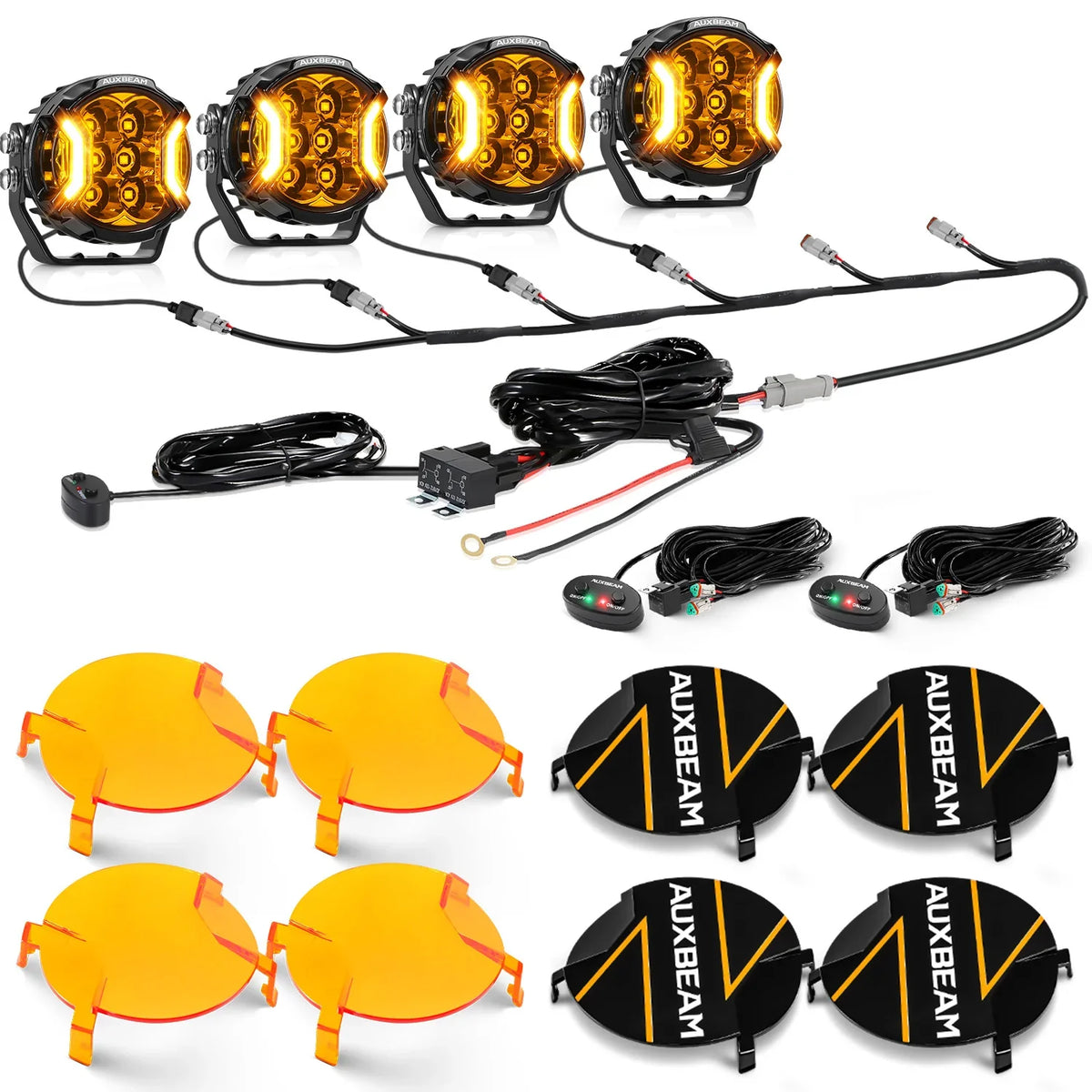

8-Pod Lights (A maximum of eight pod lights can be installed):
XP-ULTRA Series: ZD000753/ZD000879/ZD000880/ZD000881
V-MAX Series: ZD000851/ZD000852/ZD000849/ZD000850
V-ULTRA Series: ZD000820/ZD000821/ZD000892/ZD000891
Other Product: ZD000752

6-Pod Lights (A maximum of six pod lights can be installed):
V-MAX Series: ZD000869/ZD000870
V-ULTRA Series: ZD000889/ZD000890
Other Product: ZD000617/ZD000484/ZD000696/ZD000697

Features:

Compatible: The wiring harness of the LED Pod Light is suitable for three-wire Main Light+DRL mode, and also includes the 6 in 1 3PIN DT Plug 40A fuse and relay. Built-in blade fuses to prevent overcurrent and short circuit to ensure the safety of the vehicle electrical system.
Load Power: The wiring harness is included in a 3-meter 10AWG (5mm²) main wire&18AWG (0.75 mm²) DRL wire and a 3 PIN DT-adapter plug with a total length of 1.5 meters, it can effectively overload the MAX 40A current, that is, the load power is 480W, DRL power Max 6A (2W)in the 12V.
Plug and Play: The ultra-high quality features of the LED wiring harness kit make it a must-have tool for connecting any lights to your vehicle. The 6-Pod LED harness is easy to install, comes with 3 wires DT Plug and can be used for roof or bumper in your vehicle.

Specification:

Switch Wire Length: 3M
Install Pod Distance: 15cm
DT-plug Adapter Length: 10cm
DT-plug Connector: 3 PIN
Wire Size: 10AWG National Standard（DRL 18AWG）
Wire Material: 5 mm² Copper Wire（DRL 0.75mm²）
Working Voltage: 12V（Replaceable 24V relay）
Delay: Double 12V delay

Type	Wire Length	Leads Power	Fuse Size
6-LED Pod Light Power Wiring Harness Kit	3M Extension Cord +1.5M Connect Cord	Max 384W（Current 40A）	40A
8-LED Pod Light Power Wiring Harness Kit	3.5M Extension Cord +2M Connect Cord	Max 480W（Current 40A）	50A

Vehicle Fitment

Universal fit for every vehicle model currently listed in the UTV Forge catalog, subject to mounting space, electrical capacity, and the selected configuration.

Amber main-light option

V-ULTRA 3-inch 108W Amber Side-Shooter Pods with Amber DRL

Compact dual side-shooter design adds coverage to the front spot beam. Amber main light and amber DRL operate through the supplied wiring system. Designed for suitable off-road mounting locations with sturdy brackets and IP68 construction.

Specifications

• Size: 3 inch; pair
• Power per pair: 108W (50W main + 4W DRL per lamp)
• Total lumens per pair: 12,800LM (6,000LM main + 400LM DRL per lamp)
• LEDs per lamp: P8 5W x 10 + 2835 SMD 4W
• Beam: spot + hyper beam with double-side shooters

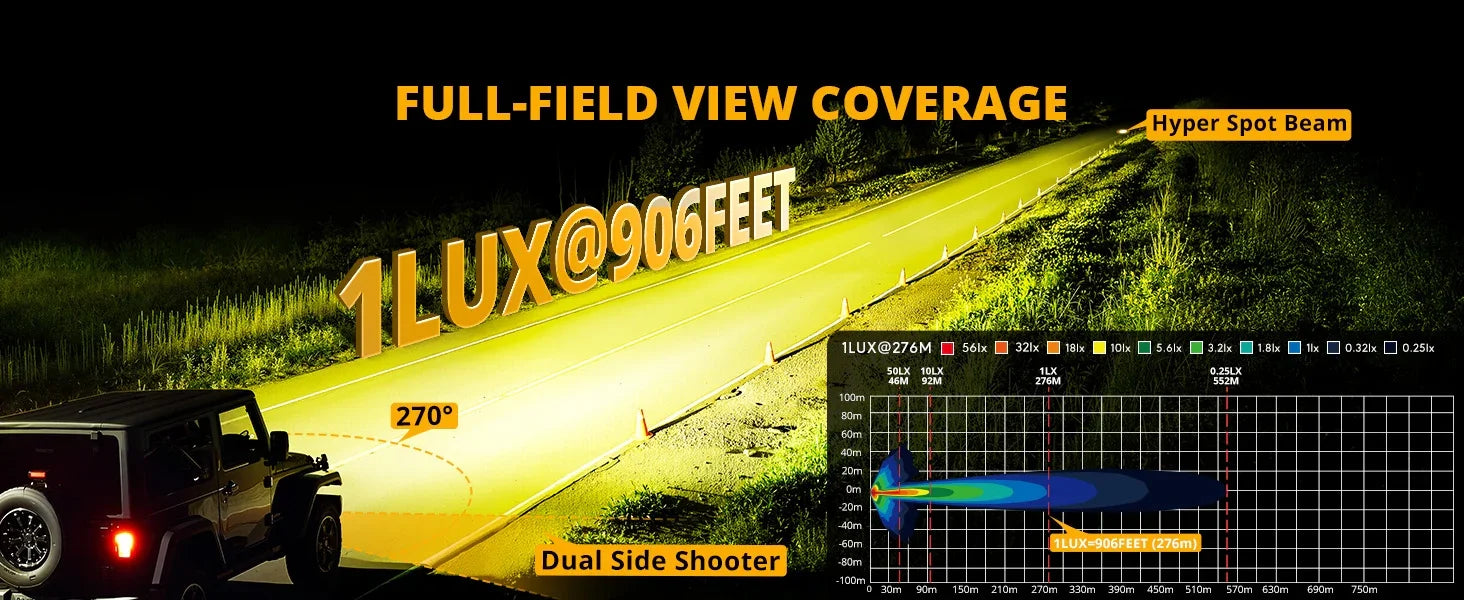

• Lighting distance: 1 lux at 276m
• Amber main light and amber DRL; 3000K
• PC lens and black aluminum-alloy housing
• IP68; manufacturer-stated life 50,000+ hours
• Working voltage: 12–24V; included harness relay is 12V, replaceable with an appropriate 24V relay.

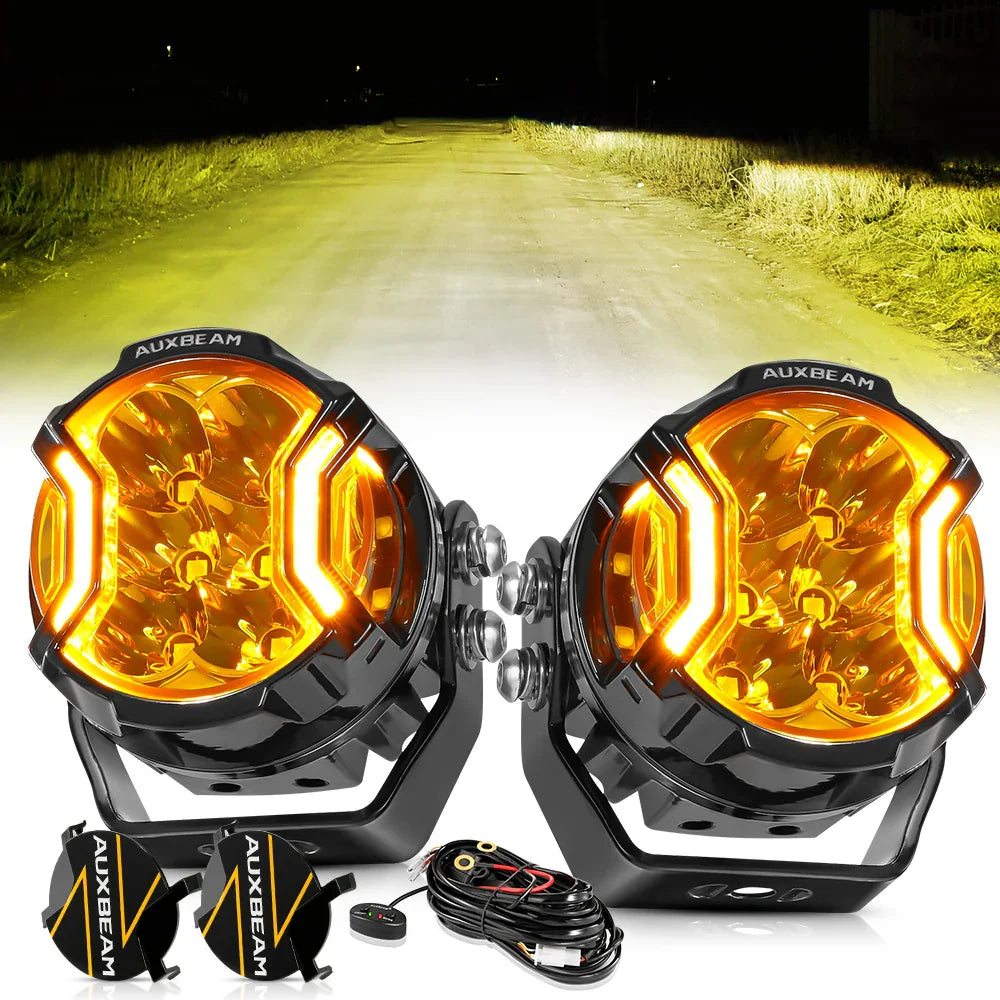

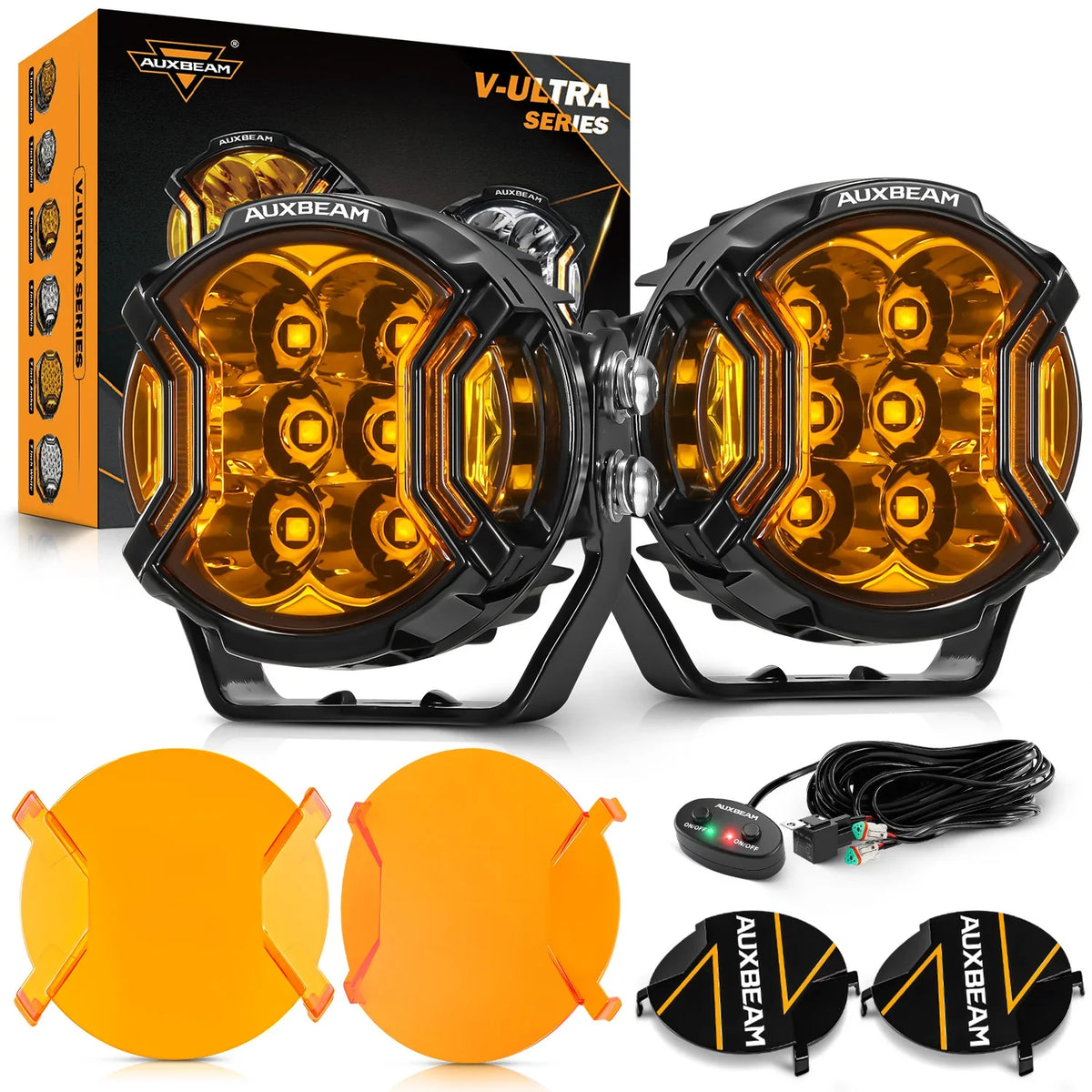

Included in the pair package

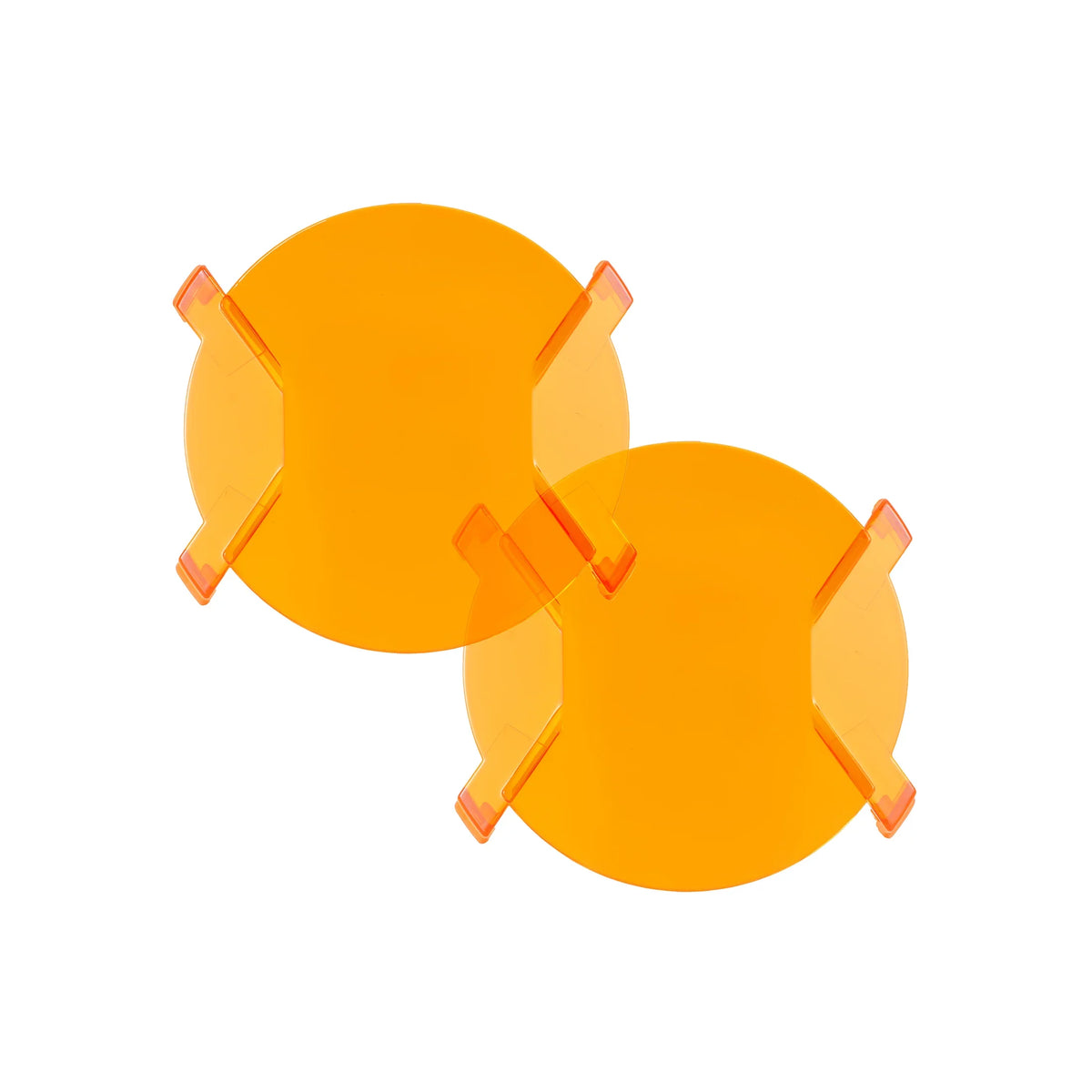

Two LED driving lights with DT plugs, two black covers, one DT wiring harness and screw accessories. Dark amber covers only when selected.

Package scope: new Amber main-light options currently contain two lights (one pair). Existing White main-light package quantities remain available as shown in the selectors. Gallery illustrations may show different family configurations; only the selected configuration and its stated contents are supplied.
